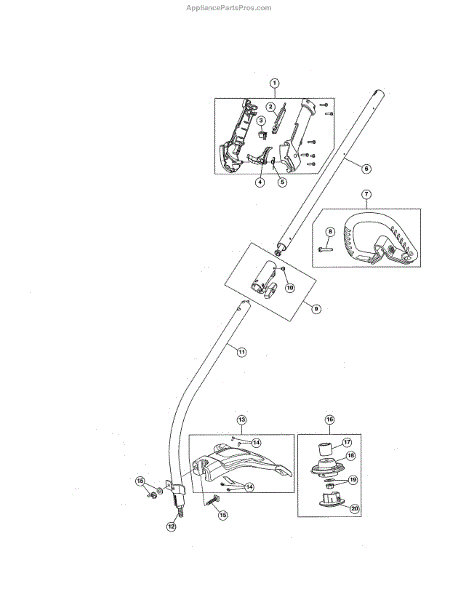

Parts for Craftsman 316711171: Shaft / Handle / Shield Parts

Parts for Craftsman 316711171: Shaft / Handle / Shield Parts

Location on Diagram
Part Description
Price & Availability
1
By: Mtd
Part Number: 753-06790

Throttle grip assembly for gas line trimmers. Replaces broken, cracked, or worn throttle grips that affect operator comfort and control during use.

More
$12.95

IN STOCK
Ships Today Guaranteed
Add to Cart
2
By: Mtd
Part Number: 731-08433B-5
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo
5.0 (1)
By: Mtd
Part Number: 791-182405

The On/Off Switch is an OEM part for MTD outdoor power equipment. This switch is a crucial component for the safe operation of various types of lawn and garden equipment, including lawn mowers, snow blowers, and other powered tools.

Causes of damage to the On/Off Switch often involve wear and tear from regular use, exposure to harsh outdoor conditions that can corrode or damage electrical components, or accidental impacts that can physically damage the switch.

Symptoms of a bad On/Off Switch include:

  • The equipment failing to start
  • The machine not stopping when the switch is turned to the off position
  • Intermittent power or erratic starting and stopping

This OEM replacement part can be used on trimmers from Craftsman, Yard-Man, Cub Cadet, Bolens, Ryobi, Huskee, Troy-Bilt, MTD, Murray, and Yard Machines.

More
$12.36

IN STOCK
Ships Today Guaranteed
Add to Cart
4
By: Mtd
Part Number: 753-06861

Trimmer won't accelerate or speed control stuck? Replace your throttle trigger to restore proper speed adjustment. Common wear part for handheld equipment.

More
$4.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
Product photo
By: Mtd
Part Number: 753-05007

This is a small return spring that attaches to the throttle trigger on a line trimmer. It provides the tension needed to return the trigger to the idle position when released, controlling engine speed. Replace this spring if the throttle trigger feels loose, does not spring back, or if the engine stays at high RPM when the trigger is released.

More
$6.95

IN STOCK
Ships Today Guaranteed
Add to Cart
6
Product photo
By: Mtd
Part Number: 753-06880

Upper boom assembly for gas line trimmers. Connects the engine housing to the cutting head. Replace if cracked, bent, or structurally damaged.

More
$22.66

IN STOCK
Ships Today Guaranteed
Add to Cart
7
Product photo
By: Mtd
Part Number: 753-06039

Handle assembly for gas line trimmers. Installs on the shaft to provide grip and control. Replace if cracked, broken, or worn from regular use.

More
$17.95

IN STOCK
Ships Today Guaranteed
Add to Cart
8
Product photo
By: Mtd
Part Number: 753-06040

This is a fastener bolt designed for use in string trimmers and other outdoor power equipment. It secures internal components to maintain structural integrity during operation. Replace this bolt if it is stripped, corroded, or missing - which can cause excessive vibration, loose parts, or unsafe operating conditions.

More
$8.33

IN STOCK
Ships Today Guaranteed
Add to Cart
9
By: Mtd
Part Number: 753-08212
$23.63

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
10
By: Mtd
Part Number: 791-182057

Fastening screw for lawn mowers, snow throwers, and trimmers. Secures components together. Replace if stripped, corroded, or missing during repairs.

More
$5.95

IN STOCK
Ships Today Guaranteed
Add to Cart
11
Product photo
By: Mtd
Part Number: 753-06865

Replace a cracked or damaged lower shaft housing causing vibration or wobbling. Protects drive shaft components in gas line trimmers. Moderate DIY repair.

More
$26.55

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
12
By: Mtd
Part Number: 753-06864
$13.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
Product photo
5.0 (1)
By: Mtd
Part Number: 753-04283

17-inch guard and blade assembly for gas line trimmers. Protects operator and controls cutting diameter. Replace if cracked, broken, or damaged.

More
$54.44

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Product photo
By: Mtd
Part Number: 791-180553
$17.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
Product photo
By: Mtd
Part Number: 753-04282

Replacement mounting hardware for line trimmer guards. Secures the protective guard to the trimmer shaft. Order new hardware if original bolts, nuts, or clips are lost, stripped, or damaged.

More
$27.88

IN STOCK
Ships Today Guaranteed
Add to Cart
16
Product photo
By: Mtd
Part Number: 753-06869

Replacement head assembly for gas line trimmers. Installs at the bottom of the shaft where the cutting line feeds. Needed when original is cracked, stripped, or missing components. Direct fit part.

More
$20.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
By: Mtd
Part Number: 753-06866
$6.71

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
By: Mtd
Part Number: 753-06867
$18.24

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
19
By: Mtd
Part Number: 753-06868
$6.71

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
20
Product photo
By: Mtd
Part Number: 753-06849
$7.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
