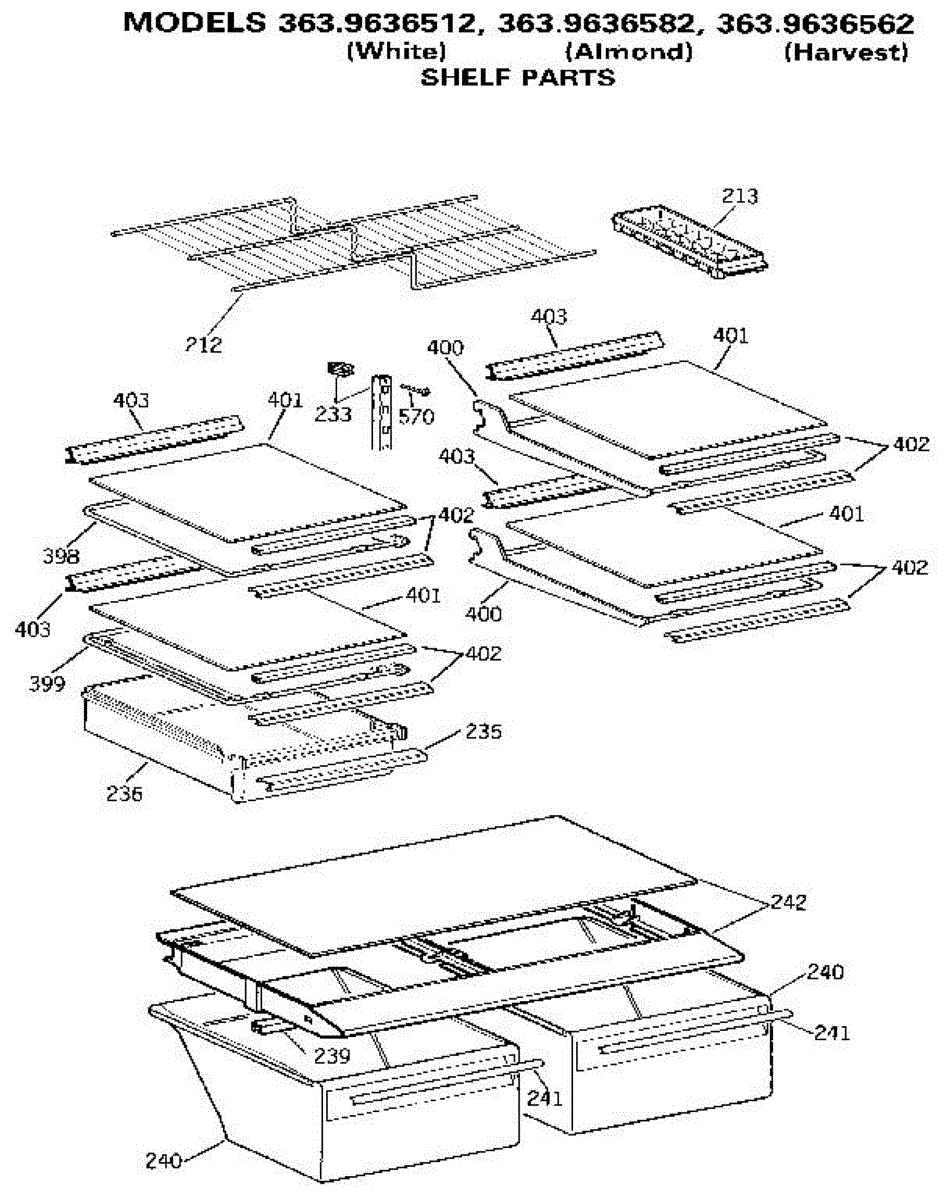

Parts for Kenmore 363.9636512 (3639636512, 363 9636512): Shelf Parts

The Freezer Shelf is an OEM replacement part for GE freezers. This shelf provides storage throughout the freezer compartment. It measures approximately. 25" x 12".

Causes of a bad freezer shelf can include cracked or broken steel from overloading, corrosion from moisture exposure over years of use, or damage from impact.

Symptoms of a faulty shelf include:

• Visible cracks, breaks, or fractures in the steel
• Shelves that cannot adequately bear the weight of frozen items
• Missing or detached shelf mounting fasteners
• Sharp edges or projections creating a safety concern

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Refrigerator meat pan drawer for the fresh food section. It replaces a cracked or missing drawer to restore organized storage and smooth, gliding access to meat items. What it does:

• Provides a dedicated storage bin in the fresh food compartment
• Slides into the existing shelf rails for easy access
• Replaces cracked, broken, or warped pans to restore smooth operation
• Common symptoms: drawer cracked, broken tabs, falls off rails, or won't slide smoothly

• 1 meat pan drawer

• Empty the old pan and pull it straight out of the rails
• Align the new pan with the rails and push straight in until fully seated
• If clearance is limited, lift or remove the shelf above before installing

The Vegetable Pan is an OEM part for GE refrigerators. It is designed to store fresh produce, helping to maintain optimal humidity levels to keep fruits and vegetables fresh for longer periods. The pan fits seamlessly into the refrigerator, providing a convenient and accessible storage solution for your produce.

Causes of a bad vegetable pan can include cracks or breaks due to impact or mishandling, warping from prolonged use, or damage from heavy or improperly stored items. Over time, regular use can also lead to wear and tear, affecting its functionality.

Symptoms of a bad Vegetable Pan include:

• Cracks or visible damage to the pan
• Difficulty sliding the pan in and out
• Produce not staying fresh as long
• Pan not fitting properly in its designated space

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: white. Measures about 26 inches wide by 20 inches deep.

This reflector is the interior light bezel that directs and focuses the refrigerator lamp to brighten the compartment and protect the bulb. It restores even illumination and keeps the lamp positioned for reliable operation. What it does:

• Redirects and focuses light from the interior lamp for better visibility
• Helps secure and position the bulb or lamp assembly
• Shields the lamp from direct contact with stored items
• Supports consistent interior illumination and safe bulb mounting

• One interior light reflector

• Disconnect power before servicing the appliance to avoid electric shock
• Handle the reflector carefully to avoid cracking; some designs are plastic or thin metal
• You may need to remove shelves, light cover, or bulb to access mounting screws or clips
• Replace only with the exact part number to ensure correct fit and lamp alignment

Please note: You may also need to order an adapter. For the adapter to convert the male connector from rectangular to oval use part number WR29X10049. Water valve in kit is part# WR57X10033.
