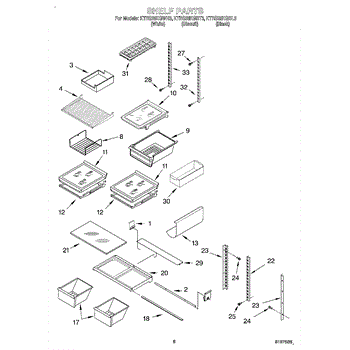

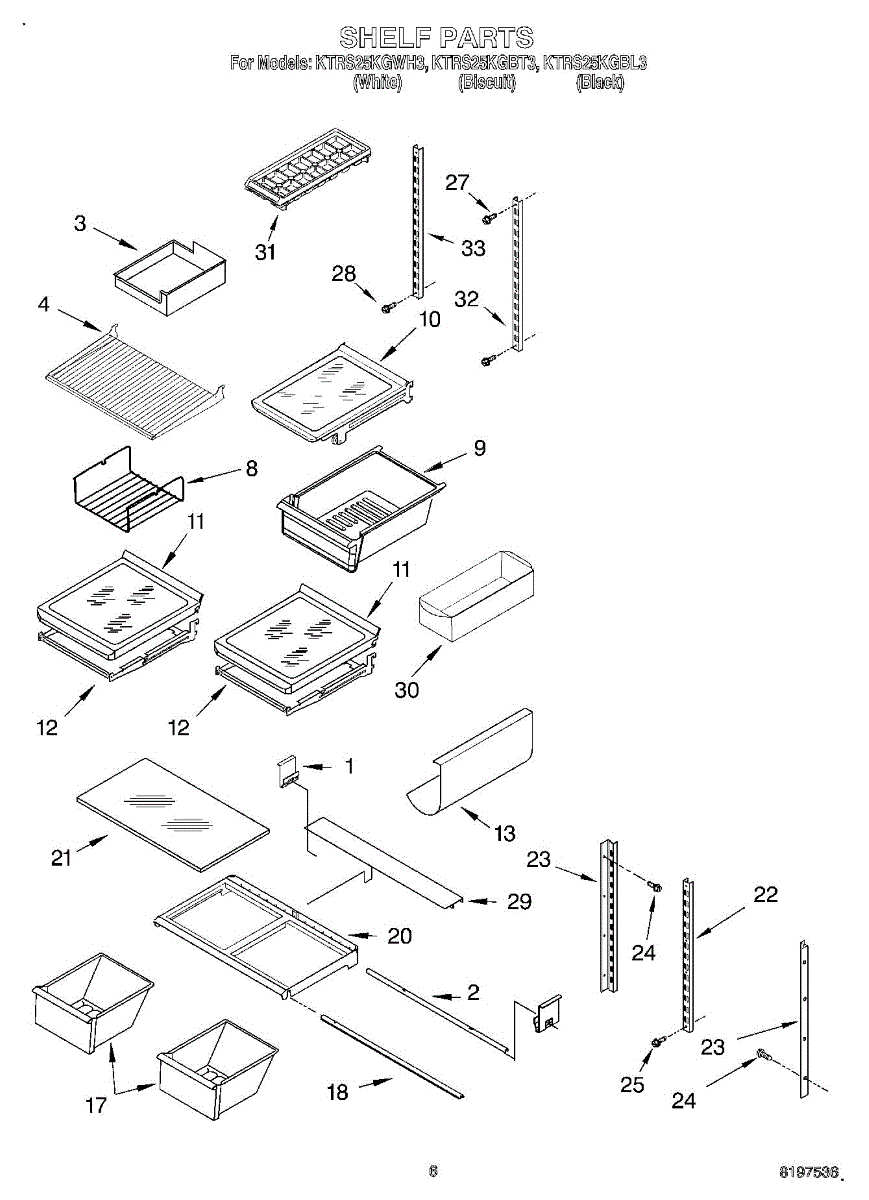

Parts for Kitchenaid KTRS25KGBL3: 04 - Shelf Parts

This refrigerator ice bucket stores ice made by the icemaker and positions it for dispensing. Replacing a cracked or warped bin restores smooth ice flow and helps prevent jams, spills, and mess inside the freezer.

• Holds and contains ice cubes in the freezer for easy access and dispensing
• Interfaces with the auger/crusher assembly in dispenser-equipped models
• Helps correct issues like ice jamming or inconsistent dispensing caused by a damaged bin
• Addresses visible damage such as cracks, chips, warping, or a bucket that won't seat properly
• Can reduce stray ice or moisture under/around the bin when the original is compromised

• Unplug the refrigerator and turn off the icemaker/water supply before starting
• Remove the old bin; transfer any auger/crusher components from the original if your model uses them
• Seat the new bucket fully so it latches/aligns correctly with the drive
• Restore power and verify proper dispensing operation

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

This replacement ice cube tray is a direct-fit plastic tray designed to hold and release ice cubes in compatible top- or bottom-freezer refrigerators. Restores convenient ice storage and simple manual ice removal. What it does:

• Holds water in separate cavities so ice cubes form evenly.
• Flexes slightly for easier ice release to reduce twisting or chipping.
• Replaces cracked, warped, or missing trays that cause leaking or uneven freezing.
• Helps prevent contamination from freezer debris when used as intended.

• Remove old tray and wipe area clean before installing the new tray.
• Fill tray with water on a level surface and place flat in the freezer to freeze.
• Handle carefully when removing ice to avoid spills; do not force with sharp tools.
• Clean tray before first use and as needed; follow refrigerator manufacturer's care guidance.
