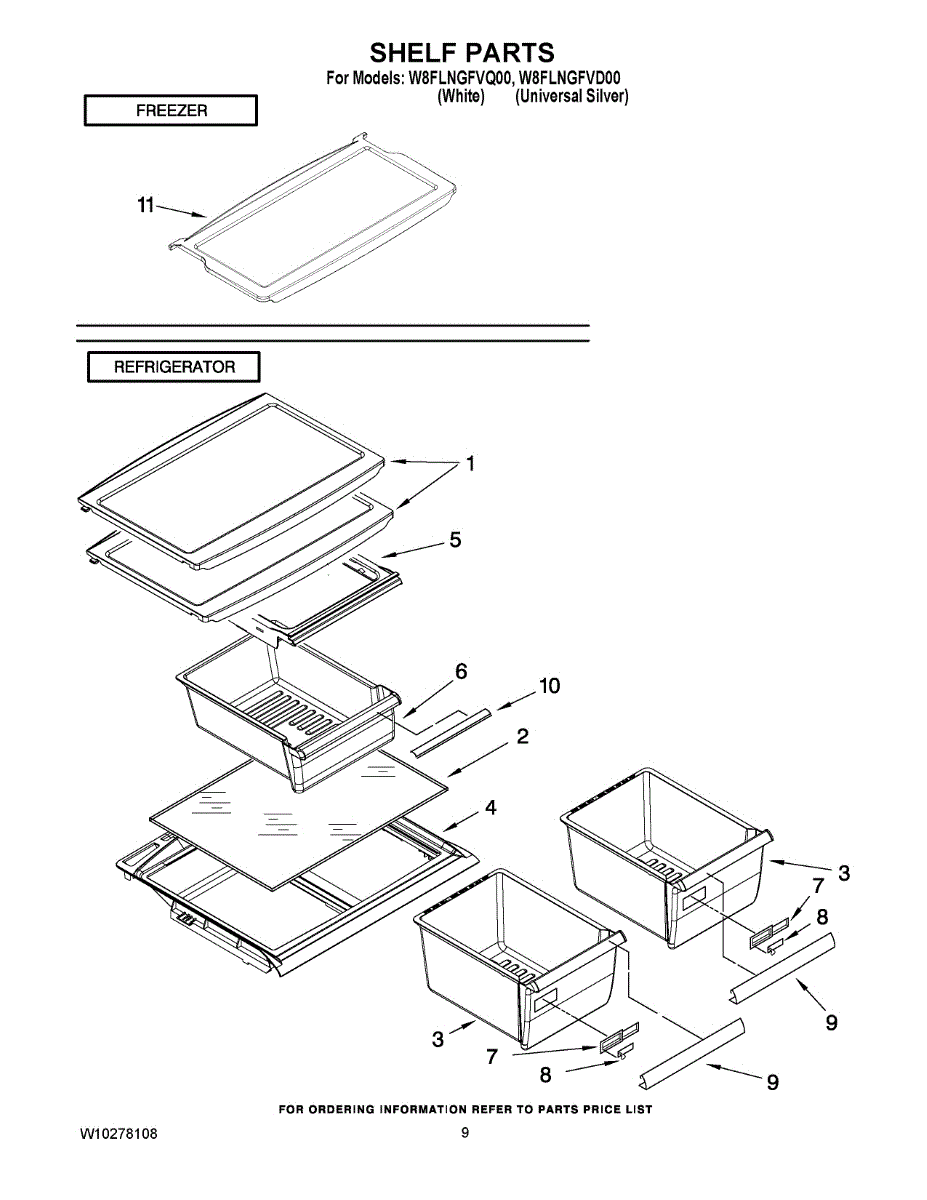

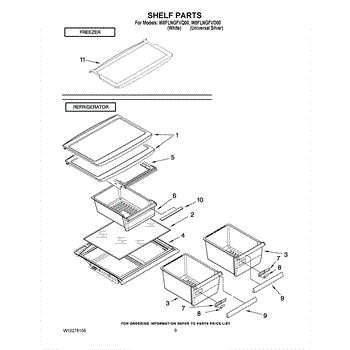

Parts for Whirlpool W8FLNGFVD00: 05 - Shelf Parts

This replacement glass shelf restores a sturdy, easy-to-clean storage surface inside your refrigerator. It helps keep items organized and contains minor spills when the original shelf is cracked, bowed, stained, or missing.

• Provides a flat, stable surface to support food and containers
• Helps contain small spills to the shelf area for easier cleanup
• Replaces cracked, shattered, or sagging glass
• Restores proper spacing and organization when a shelf is missing

• Disconnect power before working inside the appliance
• Remove food items and any obstructing bins; lift or slide the old shelf out
• Handle glass with protective gloves and use both hands to avoid stress cracks
• Seat the new shelf fully on its supports (or into the frame) and verify it's level before loading

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface for storing food items, allowing for efficient organization and easy visibility within the refrigerator. The glass measures approximately: 21.6" X 16.8"

Causes of a bad glass shelf can include cracks or breaks due to heavy loads or accidental impacts, edge chipping from repeated use, or wear and tear over time. These issues can compromise the integrity and safety of the shelf.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Pan is an OEM part for Whirlpool refrigerators. This component, often referred to as a crisper drawer, is designed to store fruits and vegetables at optimal humidity levels, helping to keep produce fresh for longer periods. It fits into the refrigerator's designated crisper area, providing an organized space for fresh food items. The pan measures approximately 13 inches by 10 inches at the base.

Symptoms of a failing Crisper Pan include:

• Cracks or damage to the plastic, which can cause spills or make the drawer difficult to slide in and out
• The pan not fitting properly into its designated slot, leading to a loose or wobbly fit
• Reduced ability to maintain optimal humidity levels, causing produce to spoil faster
• Difficulty in opening or closing the drawer smoothly

Causes of a bad crisper pan can include regular wear and tear from frequent use, physical damage from heavy items or impacts, and exposure to extreme temperatures or cleaning chemicals that can degrade the plastic over time.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Crisper Cover is an OEM part for Whirlpool refrigerators. It serves as a protective cover for the crisper drawers, helping to maintain optimal humidity levels to keep fruits and vegetables fresh.

Causes of a bad crisper cover can include normal wear and tear, cracks or breaks from heavy items being placed on it, and damage from accidental impacts.

Symptoms of a bad crisper cover include:

• Visible cracks or breaks in the cover
• Difficulty in sliding the crisper drawers in and out
• Reduced freshness of stored fruits and vegetables due to improper humidity control
• Items falling through or not staying properly on top of the crisper cover

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Meat Pan is an OEM part for Whirlpool refrigerators. This pan stores meat and other perishable items, maintaining an optimal environment to keep them fresh for longer periods.

Over time, wear and tear, cracking from overloading, or warping due to temperature changes can affect the pan’s performance.

Symptoms of a bad meat pan include:

• Visible cracks or damage to the pan
• Difficulty sliding the pan in and out of its compartment
• Spills or leaks within the refrigerator
• Food not staying fresh as long as expected

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This humidity control body mounts on the crisper cover and forms the adjustable vent for the produce drawer. Replacing a cracked or missing housing restores smooth slider operation and helps manage moisture inside the crisper.

• Houses the humidity control slider and covers the vent opening on the crisper cover
• Regulates airflow into the drawer to help manage moisture for fruits and vegetables
• Restores proper fit when the original part is cracked, warped, or missing
• Common symptoms: loose or stuck slider, difficulty adjusting crisper humidity, excess condensation or wilting in the drawer

• Disconnect power; remove the crisper drawer and cover, handling any glass carefully
• Release retaining tabs or screws and remove the old humidity control body
• Transfer the existing slider/indicator as needed and seat the new body fully
• Verify smooth slider movement before reinstalling the cover and drawer

This humidity control slide mounts on the crisper cover and moves the vent door that regulates moisture in the produce bin. Replacing a broken slider restores smooth adjustment so you can fine-tune humidity for better food freshness.

• Moves the crisper vent door between high and low humidity settings to control airflow
• Restores smooth, positive slider action and clear setting selection
• Common symptoms: slider cracked, missing, or stuck; humidity setting won't hold; crisper too wet or too dry; condensation in the drawer
• Direct-fit replacement for the original crisper humidity vent slider

• Unplug the refrigerator and remove the crisper drawer(s) for access
• Lift out or access the crisper cover where the slider seats
• Align the new slide with the vent/damper lever and snap or slide it into place
• Confirm smooth travel through the full range before reinstalling the drawer(s)

This trim pan is a finished cabinet trim piece that restores the appliance's appearance and covers the gap between the cabinet and the base pan. It provides a clean look while helping keep debris from collecting under the appliance. What it does:

• Covers and finishes the appliance base/cabinet edge for a factory appearance
• Hides gaps and protects underlying components from dust and debris
• Replaces cracked, bent, or discolored trim that can detract from appearance
• Helps secure adjacent panels and provides a finished mounting edge

• Disconnect power to the appliance before attempting any service.
• Typically secures with clips or screws; retain original fasteners for reinstallation when possible.
• Handle edges with care to avoid scratching the finish.
• If additional panels or fasteners are damaged or missing, inspect mounting points and replace as needed.

This refrigerator shelf slide assembly supports a slide-out shelf in the fresh food compartment. Replace a cracked or binding frame to restore a stable surface and smooth glide for easier access to items.

• Supports the shelf and contents and allows smooth slide-out for loading and cleaning
• Keeps the shelf level and properly seated on the side support rails
• Common symptoms: cracked or broken frame, shelf won't slide smoothly, sagging/unstable shelf, or misaligned tabs

• Disconnect power to the refrigerator before servicing
• Remove food, slide out and lift the old shelf; transfer any removable trims if needed
• Set the new assembly onto the support rails and ensure all tabs fully engage
• Check for smooth travel and level seating before reloading the shelf
