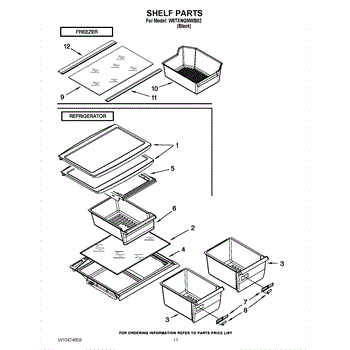

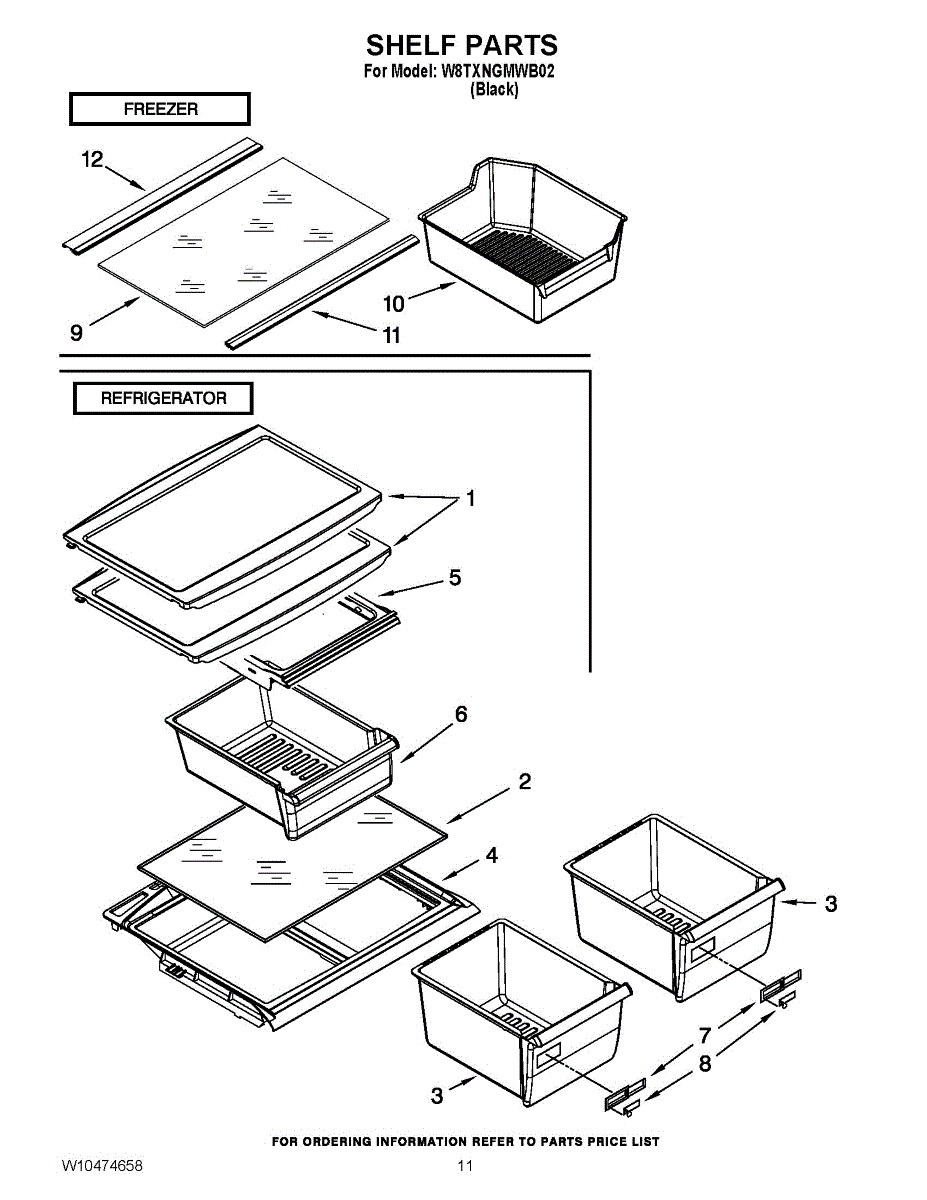

Parts for Whirlpool W8TXNGMWB02: 06 - Shelf Parts

The Shelf-Glass is an OEM part for Whirlpool refrigerators. This glass shelf provides a sturdy and transparent surface for storing food items inside the refrigerator, allowing for easy visibility and efficient organization of the contents.

Causes of a bad glass shelf can include accidental breakage from heavy or improperly placed items, wear and tear from frequent use, or damage from sudden temperature changes. Such issues can compromise the structural integrity of the shelf, making it unsafe for use.

Symptoms of a bad glass shelf include:

• Cracks or chips in the glass
• Unstable or uneven surface
• Difficulty in fitting the shelf properly within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface for storing food items, allowing for efficient organization and easy visibility within the refrigerator. The glass measures approximately: 21.6" X 16.8"

Causes of a bad glass shelf can include cracks or breaks due to heavy loads or accidental impacts, edge chipping from repeated use, or wear and tear over time. These issues can compromise the integrity and safety of the shelf.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Pan is an OEM part for Whirlpool refrigerators. It is designed to store fruits and vegetables, helping to keep them fresh by providing a controlled humidity environment. This pan fits into the lower section of the refrigerator, offering convenient storage and easy access to fresh produce.

Over time, crisper pans can become damaged or wear out due to heavy use, accidental drops, or cracks from impact. These issues can compromise the effectiveness of the humidity control and storage capacity.

Symptoms of a bad crisper pan include:

• Cracks or breakage in the pan
• Difficulty sliding the pan in and out
• Produce not staying fresh as long
• The pan not fitting securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Cover is an OEM part for Whirlpool refrigerators. It serves as a protective cover for the crisper drawers, helping to maintain optimal humidity levels to keep fruits and vegetables fresh.

Causes of a bad crisper cover can include normal wear and tear, cracks or breaks from heavy items being placed on it, and damage from accidental impacts.

Symptoms of a bad crisper cover include:

• Visible cracks or breaks in the cover
• Difficulty in sliding the crisper drawers in and out
• Reduced freshness of stored fruits and vegetables due to improper humidity control
• Items falling through or not staying properly on top of the crisper cover

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Meat Pan is an OEM part for Whirlpool refrigerators. This pan stores meat and other perishable items, maintaining an optimal environment to keep them fresh for longer periods.

Over time, wear and tear, cracking from overloading, or warping due to temperature changes can affect the pan’s performance.

Symptoms of a bad meat pan include:

• Visible cracks or damage to the pan
• Difficulty sliding the pan in and out of its compartment
• Spills or leaks within the refrigerator
• Food not staying fresh as long as expected

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This humidity control body mounts on the crisper cover and forms the adjustable vent for the produce drawer. Replacing a cracked or missing housing restores smooth slider operation and helps manage moisture inside the crisper.

• Houses the humidity control slider and covers the vent opening on the crisper cover
• Regulates airflow into the drawer to help manage moisture for fruits and vegetables
• Restores proper fit when the original part is cracked, warped, or missing
• Common symptoms: loose or stuck slider, difficulty adjusting crisper humidity, excess condensation or wilting in the drawer

• Disconnect power; remove the crisper drawer and cover, handling any glass carefully
• Release retaining tabs or screws and remove the old humidity control body
• Transfer the existing slider/indicator as needed and seat the new body fully
• Verify smooth slider movement before reinstalling the cover and drawer

This humidity control slide mounts on the crisper cover and moves the vent door that regulates moisture in the produce bin. Replacing a broken slider restores smooth adjustment so you can fine-tune humidity for better food freshness.

• Moves the crisper vent door between high and low humidity settings to control airflow
• Restores smooth, positive slider action and clear setting selection
• Common symptoms: slider cracked, missing, or stuck; humidity setting won't hold; crisper too wet or too dry; condensation in the drawer
• Direct-fit replacement for the original crisper humidity vent slider

• Unplug the refrigerator and remove the crisper drawer(s) for access
• Lift out or access the crisper cover where the slider seats
• Align the new slide with the vent/damper lever and snap or slide it into place
• Confirm smooth travel through the full range before reinstalling the drawer(s)

This replacement ice cube pan holds and organizes ice in your refrigerator's freezer. Replacing a cracked or warped pan restores clean, contained ice storage and smoother access or dispensing, depending on your model's design. What it does:

• Collects and stores ice produced by the icemaker or manual trays
• Keeps cubes contained and easy to access; fits designated guides in the freezer
• Helps ensure proper ice access or dispensing on applicable models
• Typical symptoms: cracked bin, broken tabs, bin won't seat, ice spilling or clumping

• 1 ice cube pan/bin

• Disconnect power to the refrigerator and turn off the icemaker before starting
• Remove the old pan and empty any remaining ice
• If your model reuses a drive/crusher or other hardware, transfer those parts from the original pan as directed for your unit
• Seat the new pan fully in its tracks/coupler, restore power, and allow normal ice production

This refrigerator shelf slide assembly supports a slide-out shelf in the fresh food compartment. Replace a cracked or binding frame to restore a stable surface and smooth glide for easier access to items.

• Supports the shelf and contents and allows smooth slide-out for loading and cleaning
• Keeps the shelf level and properly seated on the side support rails
• Common symptoms: cracked or broken frame, shelf won't slide smoothly, sagging/unstable shelf, or misaligned tabs

• Disconnect power to the refrigerator before servicing
• Remove food, slide out and lift the old shelf; transfer any removable trims if needed
• Set the new assembly onto the support rails and ensure all tabs fully engage
• Check for smooth travel and level seating before reloading the shelf

This refrigerator shelf slide assembly supports a slide-out shelf in the fresh food compartment. Replace a cracked or binding frame to restore a stable surface and smooth glide for easier access to items.

• Supports the shelf and contents and allows smooth slide-out for loading and cleaning
• Keeps the shelf level and properly seated on the side support rails
• Common symptoms: cracked or broken frame, shelf won't slide smoothly, sagging/unstable shelf, or misaligned tabs

• Disconnect power to the refrigerator before servicing
• Remove food, slide out and lift the old shelf; transfer any removable trims if needed
• Set the new assembly onto the support rails and ensure all tabs fully engage
• Check for smooth travel and level seating before reloading the shelf
