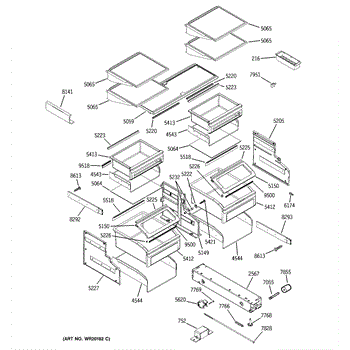

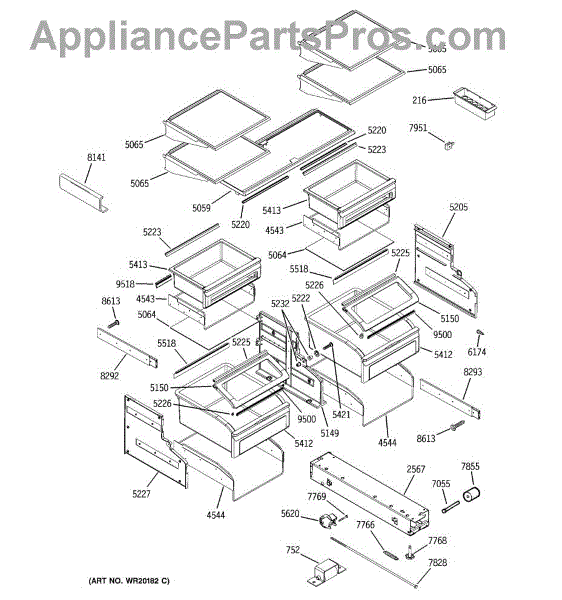

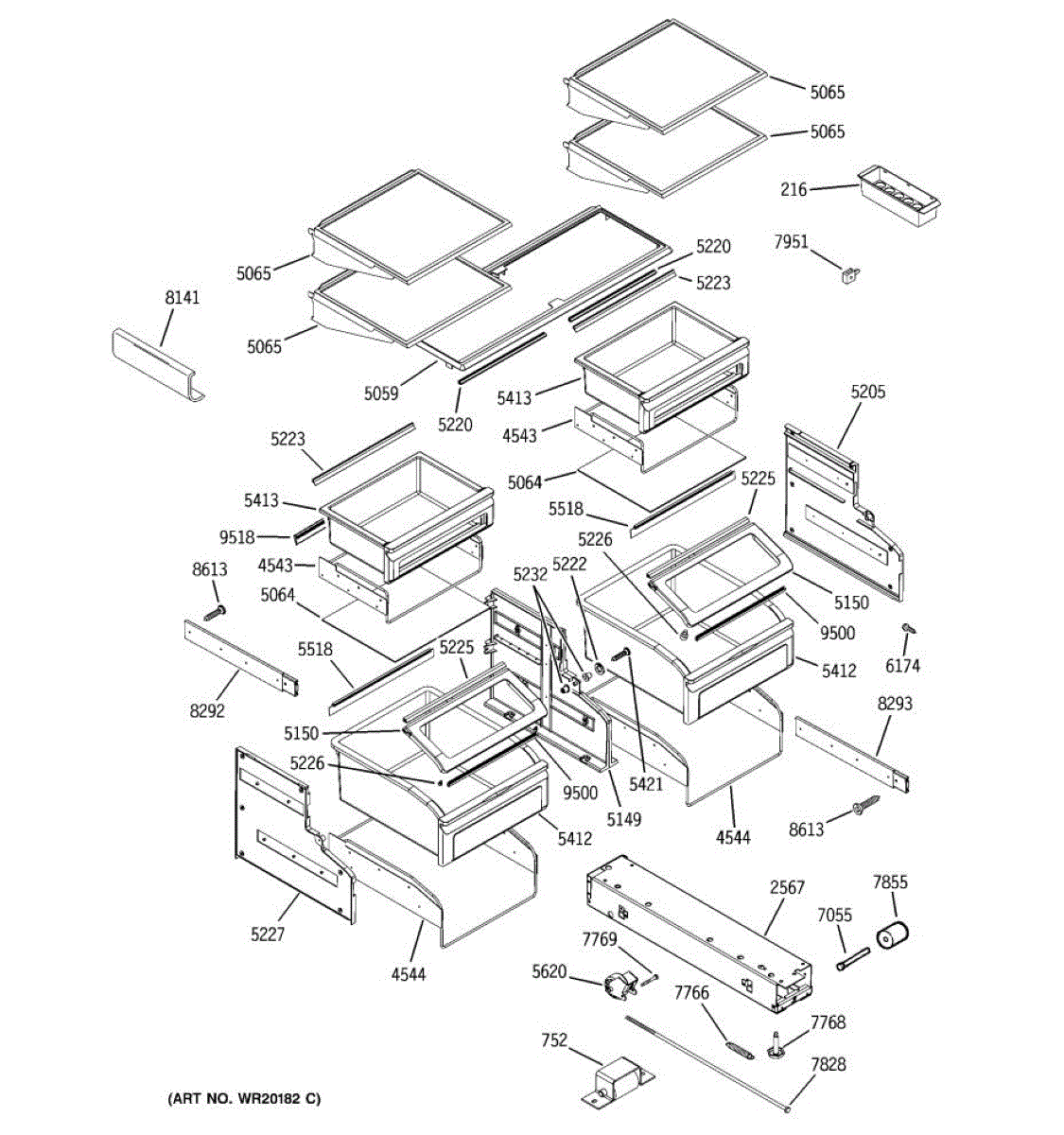

Parts for Ge ZICP360SRCSS: 04 - Shelves & Drawers Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This right-hand base channel restores the lower support and alignment for a refrigerator door, helping the door sit level and operate smoothly. It replaces a bent, cracked or missing channel to improve door fit and stability. What it does:

• Provides the structural lower support the door mounts to, keeping the door aligned and stable
• Corrects door sag, uneven gaps, rubbing or difficulty closing when the channel is damaged
• Reinforces the hinge and threshold area to maintain proper door seal and operation
• Matches the OEM mounting points for a direct-fit replacement when installed correctly

• Turn off power to the appliance and remove any refrigerated contents from the door before beginning
• Installation typically requires basic hand tools; remove door and lower trim as needed for access
• Handle carefully to avoid scratching the finish and align mounting holes before securing hardware
• If hinge pins, seals or fasteners are worn or missing, replace them per manufacturer recommendations for best results

This veg pan cover is the replacement lid for a refrigerator crisper/vegetable drawer, helping keep produce separated and reducing moisture loss for fresher, longer-lasting fruits and vegetables. What it does:

• Covers the refrigerator vegetable/crisper drawer to help contain humidity and protect produce
• Restores a secure fit when the original cover is cracked, warped, or missing
• Helps prevent accidental spills into the drawer below and keeps items contained
• Works with the drawer assembly to promote consistent storage conditions

• Remove contents from the drawer and slide the drawer out to access the cover
• Align the cover with the drawer rails or mounting tabs and snap or slide into place
• Handle carefully to avoid cracking plastic; use gentle pressure and avoid tools unless specified by the appliance manual

This encap shelf assembly is an encapsulated glass refrigerator shelf that restores a stable, easy-to-clean storage surface and helps contain spills. Replaces damaged or missing shelves to improve organization and safe food storage. What it does:

• Provides a flat, sturdy surface for groceries and containers.
• Encapsulated edge design helps contain spills and keeps items from sliding off.
• Replaces cracked, chipped or sagging shelves that can't support weight safely.
• Restores proper spacing and organization inside the fresh-food compartment.

• One encap shelf assembly

• Remove all food and containers before replacing the shelf.
• Wear cut-resistant gloves when handling glass; protect surfaces from breakage.
• Support the shelf while sliding into the shelf tracks or brackets to avoid damage.
• Confirm proper fit and seating in the tracks before loading with items.

This divider assembly separates and supports the refrigerator's vegetable pans, keeping produce organized and preventing items from shifting. It restores the proper spacing and function of the crisper area for reliable storage. What it does:

• Provides a stable partition between vegetable/crisper pans to keep contents separated
• Holds pans in correct alignment so drawers slide smoothly and stay in place
• Replaces cracked, broken, or warped dividers that allow pans to shift or rattle
• Helps maintain organized storage and prevents produce from mixing

• One divider assembly

• Remove the crisper drawer(s) and pans to access the divider before installing
• Align the assembly into the existing tracks or mounting points until it snaps or seats fully
• Inspect surrounding tracks and pans for damage; replace any worn pieces for best fit

The showcase pivot provides the pivot point that supports the washer's showcase assembly, restoring proper alignment and stable rotation for smoother operation and reduced noise or wobble. What it does:

• Serves as the pivot/support for the washer showcase assembly so the basket or door rotates as designed
• Keeps the showcase aligned to prevent rubbing, binding or uneven movement
• Helps reduce vibration and noise caused by a worn or damaged pivot
• Worn pivots can cause visible misalignment, wobbling or unusual noises during spin cycles

• Disconnect power and water supply before beginning any repair
• Remove access panels and note orientation of the old pivot before removing
• Inspect surrounding parts and replace if damaged
• Reassemble securely; run a short test cycle to verify alignment and operation

This front vegetable pan glass seal replaces the worn or damaged gasket that fits along the glass front of a refrigerator crisper/vegetable drawer. Restores a snug fit to help reduce drafts, rattling and food falling beneath the drawer. What it does:

• Seals the front edge of the crisper/vegetable drawer glass to help maintain proper airflow and keep produce fresher.
• Holds the glass front securely to reduce rattling, slipping or gaps.
• Prevents small food items and debris from slipping under the pan.
• Common symptoms: torn, brittle or missing seal; visible gap at the drawer front; rattling or debris collecting beneath the drawer.

• Remove food and slide out the crisper/vegetable drawer to access the glass front before replacing the seal.
• Remove the old seal and clean the channel of any debris or adhesive; press the new seal firmly into the channel until fully seated.
• Wear gloves and use caution around glass edges to avoid cuts; no special tools are usually required.
• If clips or adhesive are present, inspect and reuse or replace them as needed; replace cracked or damaged glass rather than relying on the seal.

A replacement showcase pivot bushing that supports the door pivot and helps the showcase door rotate smoothly. Restores proper pivot alignment to reduce wobble and rubbing for safer, quieter operation. What it does

• Provides a low-friction bearing surface at the showcase door pivot so the door opens and closes smoothly.
• Helps keep the pivot shaft centered to prevent door wobble or uneven movement.
• Reduces metal-on-metal contact that can cause noise, wear, or scraping.
• Commonly used when a door feels loose, binds, or hangs unevenly at the pivot.

• One (1) showcase pivot bushing.

• Disconnect power to the appliance before starting any repair.
• Remove the door or panel per the manufacturer's instructions to access the pivot area.
• Press or snap the bushing into the pivot housing until fully seated; replace pivot shaft/hardware as needed.
• Test door operation after installation; inspect pivot shaft and surrounding components for wear.

This part is a genuine OEM replacement crisper drawer intended for use with refrigerators. This crisper drawer is intended to properly store fruits, vegetables, and produce at the correct temperature and humidity in order to keep it fresh for as long as possible. Crisper drawers can become cracked or broken over time or if subject to damage, requiring replacement. No tools are needed to replace this part and installation is straightforward. Simply remove the old crisper drawer carefully and slide the replacement part into place. This part has been made by General Electric and has been sourced directly from the manufacturer. It is made out of high-quality, durable, non-corrosive plastic to ensure high quality and durability. This crisper drawer is sold individually. It is intended for use with various different refrigerator models manufactured by General Electric, Hotpoint, RCA, and some other compatible brands.

This snack pan assembly is the shallow refrigerator drawer that stores snacks and deli items in the fresh food compartment. Replace a cracked or missing pan to restore smooth sliding access and reliable, contained storage.

• Organizes smaller food items in the fresh food section
• Slides within the shelf rails for easy access
• Replaces cracked, broken, warped, or missing drawer
• Helps prevent spills or items falling due to a damaged bin

• Unplug the refrigerator or disconnect power before servicing interior parts
• Remove contents, pull the old pan straight out, and lift the front to clear the rails
• Inspect/clean rails and supports; transfer any reusable trim from the old pan if applicable
• Align and slide the new pan into the rails until fully seated

A #8-18 x 7/8 screw used to fasten appliance panels and components for secure operation. Small, corrosion-resistant fastener that restores proper fit and reduces rattling or loose parts. What it does:

• Secures trim, panels, brackets, or internal components to restore proper alignment
• Helps stop vibration and rattling caused by loose or missing fasteners
• Matches original thread size and length for correct fit in designated mounting points
• Used wherever a #8-18 x 7/8 machine/sheet metal screw is required

• Use the correct #2 Phillips or driver specified for the screw head to avoid stripping
• Do not overtighten; stop when snug to avoid damaging threads or components
• Disconnect power and remove panels before working near electrical parts
• Replace only with the same size and thread type for proper fit and safety

A 6 x 1/2 inch pan-head Phillips screw used to fasten panels, trim, brackets and small assemblies on appliances. Replacing worn or missing screws restores secure mounting and reduces vibration or rattling. What it does:

• Fastens panels, brackets and trim where a 6 x 1/2 in. pan-head Phillips screw is required.
• Stops loose or rattling parts caused by missing, stripped or corroded screws.
• Provides the correct head profile for a Phillips driver to allow proper torque and seating.
• Used in non-structural fastening points on appliances.

• Always disconnect power and unplug the appliance before beginning repairs.
• Use the correct-size Phillips screwdriver to avoid cam-out and head damage.
• Do not over-tighten; over-torquing can strip threads or deform mating parts.
• Inspect mating threads and replace damaged components before installation.

This axle wheel is a replacement drum support component that helps the dryer drum roll smoothly and quietly. Replacing a worn axle wheel restores proper drum alignment and reduces noise or binding during operation. What it does:

• Supports and centers the dryer drum on its axle so the drum turns freely
• Replaces worn or damaged wheel surfaces that cause squeaks, grinding, or rubbing
• Helps prevent drum wobble and uneven wear on the drum seal or rollers
• Works as part of the drum support system to maintain smooth rotation

• One axle wheel

• Disconnect power before starting and work on a cool, empty dryer
• Removing the dryer front or drum may be required to access and replace the wheel
• Inspect other drum support components (rollers, glides, bearings) and replace as needed

This spring wheel is a replacement plastic pulley used in appliance hinge and tension assemblies to restore smooth movement and proper tension. It helps reduce noise and prevents binding from a worn or broken wheel. What it does:

• Guides and retains the hinge/tension spring for smooth opening and closing motion
• Restores proper tension and alignment when an original wheel is cracked or worn
• Helps eliminate scraping, grinding, or binding noises caused by a damaged wheel
• Keeps moving hinge components from slipping or catching during operation

• One spring wheel (LE022C4 / WR02X11233)

• Disconnect power to the appliance before beginning any repair
• Basic hand tools are typically required; follow the OEM service instructions
• Inspect surrounding hinge/spring components and replace any damaged parts

This mobility wheel is the small cabinet roller that helps your refrigerator glide for cleaning or service. Replacing a worn, cracked, or missing wheel restores smooth movement and supports proper leveling and positioning. What it does:

• Supports the base of the cabinet and allows the unit to roll when repositioning
• Replaces wheels that are cracked, flat-spotted, broken, or missing
• Common symptoms: refrigerator is hard to move, drags or scrapes, sits unevenly, or shows visible wheel damage
• Aids in pulling the appliance out for maintenance or cleaning

• 1 mobility wheel

• Disconnect power and shut off the water supply before moving the appliance
• Use two people and protect flooring; raise/adjust leveling legs to relieve weight from the wheel
• Access the base/roller bracket, remove the damaged wheel, and install the new wheel securely
• Lower and re-level the unit, reconnect utilities, and verify smooth movement

Flexible front door seal (gasket) that restores a tight closure between the appliance door and cabinet to help maintain interior temperature and reduce moisture, frost and energy loss. Use when the existing seal is cracked, torn or no longer seals fully. What it does:

• Creates an airtight seal around the door to keep cold air in and warm, moist air out.
• Helps reduce frost build-up, water or ice between compartments, and visible condensation.
• Supports consistent internal temperatures to protect food and improve efficiency.
• Common symptom: visible gaps, a torn or deformed gasket, or cold loss around the door edge.

• Disconnect power or unplug the appliance before service.
• Remove food and any removable door shelves or bins that obstruct access.
• Clean and dry the door sealing surface before fitting the new gasket for best contact.
• Fit the gasket starting at a corner and work around the door; gently warm stiff seals to make them more pliable if needed.
