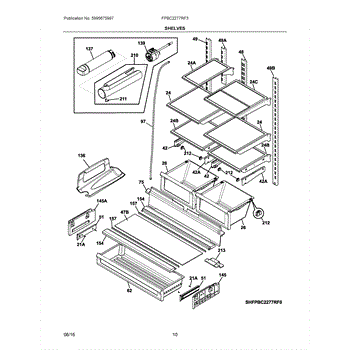

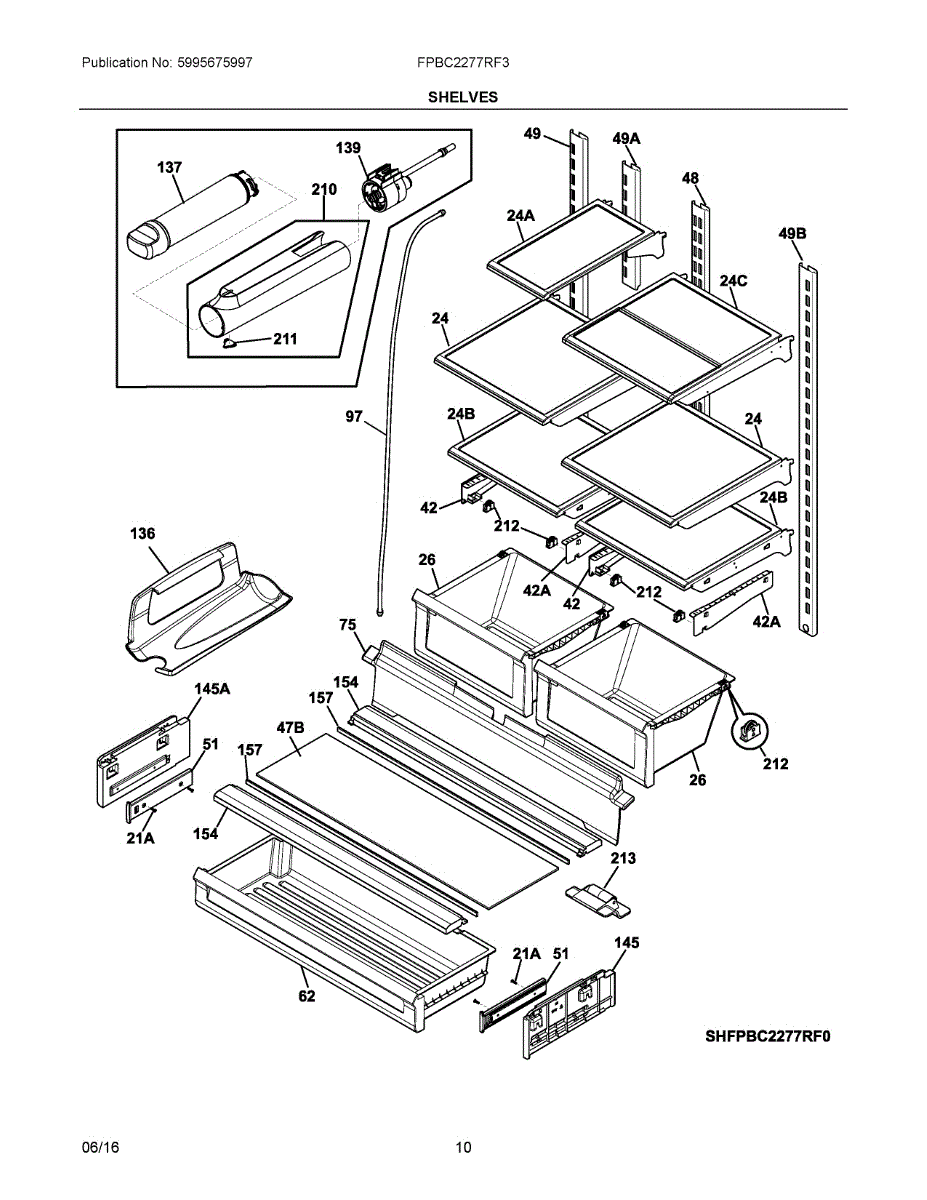

Parts for Frigidaire FPBC2277RF3: 05 - Shelves Parts

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This replacement shelf restores a stable, level storage surface inside your refrigerator so you can organize food and beverages safely and efficiently. It's designed to replace a damaged or missing shelf and bring back original fit and function.

• Provides a sturdy, level surface for storing containers and groceries
• Replaces cracked, broken, or missing shelving to maintain safe storage
• Helps prevent tipping and spills when a shelf is bowed or unstable
• Signs it may need replacement: visible cracks, sagging/warping, or a shelf that won't seat securely

• Disconnect power and remove items from the affected area before replacing
• Lift out the old shelf; align and slide the new shelf into the side supports until fully seated
• Handle carefully to avoid bending or chipping edges and corners
• The shelf is level and locked into the support rails before reloading

This right-hand support is a small interior bracket used in select refrigerators to secure and stabilize the matching component on the right side. Replacing a cracked or missing support helps keep shelves and covers level and in place.

• Provides right-side support and alignment for the associated interior component
• Helps keep shelves/covers stable; prevents wobble, sagging, or unexpected drop
• Common signs of failure: broken tabs, cracked plastic, loose fit, or a missing support
• Replace if damaged from impact, overloading, or age

• Unplug the refrigerator and remove items to access the area
• Remove the related shelf/cover and retain any screws or clips
• Transfer and reuse the original mounting hardware if required
• Align the new support in the same orientation; secure firmly and confirm level before reassembly

This left-hand support secures and aligns the corresponding shelf or drawer assembly inside the refrigerator, helping it sit level and operate smoothly. Replace a cracked or missing support to restore proper fit and function.

• Provides structural support on the left side of the mounted assembly
• Maintains level alignment to prevent binding, rubbing, or sagging
• Helps drawers/shelves open and close smoothly when intact
• Common signs: uneven or sticking operation, tilting or dropping, visible cracks or broken tabs

• Disconnect power and remove items from the affected area before servicing
• Remove the shelf/drawer; release locking tabs or remove any fasteners holding the old support
• Position the new support on the left side and reuse existing hardware if required
• Smooth operation before reloading

This shelf channel is the metal/plastic support that secures and aligns a refrigerator shelf or door bin, helping keep stored items stable and properly positioned. It restores proper shelf fit and prevents sagging or misalignment. What it does:

• Provides a secure mounting track for a refrigerator shelf or door bin
• Supports shelf weight to prevent bowing, shifting, or falling
• Keeps the shelf aligned so items sit level and doors close smoothly
• Helps restore original shelf fit after damage or wear

• One shelf channel mounting piece

• High-level replacement; inspect adjacent clips and fasteners and replace if damaged
• Use proper hand tools; avoid overtightening to prevent cracking
• Disconnect power only if working near electrical components; otherwise power removal is not typically required

This shelf channel is the replacement mounting rail that supports and secures a refrigerator shelf, restoring stable shelf alignment and load support. Use it when a shelf slides out of position or the mounting rail is cracked or bent. What it does:

• Provides the mounting surface and guide for a refrigerator glass or wire shelf
• Restores proper shelf alignment and prevents sagging or uneven seating
• Replaces damaged, cracked or bent shelf rails that allow shelves to shift
• Helps maintain safe storage by keeping shelves locked in place during use

• Basic hand tools required; follow the refrigerator's service diagram for exact removal and replacement steps
• Support the shelf when removing the old channel to avoid dropping or damaging the shelf
• Disconnect power (or unplug) the appliance if working near electrical components or lighting
• Replace any fasteners, clips or adjacent trim that are damaged to ensure proper fit and secure mounting

This shelf channel mounting bracket secures the shelf channel to the appliance cabinet so shelves stay level and stable. It replaces a broken or worn mount to restore proper shelf alignment and support. What it does

• Secures the shelf channel to the cabinet frame so shelves sit flush and don't tilt.
• Prevents shelf movement or sagging caused by a loose or cracked mount.
• Helps maintain safe storage by keeping items from sliding off tilted shelves.
• Fits where the original channel mount has cracked, worn, or snapped.

• Designed for simple replacement—remove the shelf and channel to access the mounting bracket.
• Use appropriate hand tools; avoid over-tightening fasteners which can crack plastic components.
• Disconnect power and remove stored items from the shelf area before beginning work.
• If mounting locations are damaged, assess surrounding supports; replace any additional broken hardware.

This slide replaces a worn or broken drawer support to restore smooth, stable drawer movement and secure shelf alignment. Durable replacement designed to match the OEM fit and function for proper drawer operation. What it does:

• Supports and guides a refrigerator/freezer drawer or shelf for smooth in-and-out motion
• Restores proper alignment when drawers stick, drag, or sit unevenly
• Prevents drawers from falling out or binding during use
• Reduces noise caused by worn or damaged sliding tracks

• Always unplug the appliance or switch off power before servicing to avoid electrical hazard
• Remove the drawer or shelf to access mounting screws and clips before replacing the slide
• Compare the new slide to the original to ensure correct orientation and fastener locations
• Use common hand tools; do not force parts—if mounting holes don't line up, stop and verify part compatibility

This replacement deli drawer pan is for the fresh food compartment. It restores a smooth-sliding, dedicated space for meats and cheeses so the refrigerator stays organized and the drawer sits correctly on its tracks. What it does:

• Provides a dedicated bin for deli meats and cheeses in the fresh food section
• Seats on existing tracks under the shelf to slide in and out smoothly when undamaged
• Replacing a cracked, broken, or missing bin restores proper fit and containment
• Common symptoms: drawer cracked, won't stay on rails, difficult to slide, or missing

• Disconnect power and remove food from the area before servicing
• Pull the old drawer straight out and lift to clear the rails; align the new pan and slide it fully onto both tracks
• Handle the pan carefully—avoid flexing or forcing the plastic
• Remove the shelf above to gain clearance

This refrigerator water tube carries fresh water between the valve, reservoir, dispenser, and/or ice maker. Replacing a cracked or kinked tube restores proper water flow and helps stop leaks inside or behind the refrigerator.

• Directs pressurized water between components in the refrigerator's water system
• Common failure signs: leaks, visible cracking, kinks, or pinhole sprays
• May cause no or slow dispenser flow, or an ice maker that doesn't fill
• Restores correct routing after tubing becomes brittle or damaged with age

• Unplug the refrigerator and shut off the household water supply before servicing
• Place a towel under connections and dispense water to relieve line pressure
• Depress quick-connect collars or loosen clamps to remove the old tube; route the new tube exactly like the original
• Fully seat tubing in fittings, perform a gentle tug test, restore water, check for leaks, and flush several cups to clear air

This replacement can dispenser fits inside the refrigerator door to hold and dispense canned beverages, restoring neat storage and easy single-can removal. Designed to match OEM fit and door-rack function for compatible models. What it does:

• Holds a stack of cans securely in the door to maximize shelf space
• Allows one-can-at-a-time dispensing for easier access and organization
• Prevents cans from rolling or shifting during door open/close
• Restores proper door storage if original dispenser is cracked, broken, or missing

• High-level installation: remove door shelf or trim as needed, unclip old dispenser, and snap new dispenser into place
• No special tools typically required; use a flat screwdriver or trim tool to release clips if needed
• Handle parts gently to avoid cracking the door trim; do not force clips
• Disconnect power only before working near electrical components

The Water Filter Head is an OEM part for Frigidaire refrigerators. This part is important for providing clean, filtered water by ensuring a tight seal and proper flow between the filter and the water dispenser or ice maker.

Causes of a bad water filter head can include wear and tear over time, damage during filter replacement, or a manufacturing defect affecting the seal or the connection points.

Symptoms of a malfunctioning water filter head include:

• Leaks around the water filter area
• Difficulty installing or removing the water filter
• Poor water flow to the dispenser or ice maker
• Unusual noise from the filter area when the dispenser is used

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This beam-style crisper cover is the glass shelf that sits above the crisper drawer, providing a flat support surface and helping contain spills while keeping produce organized. It restores the shelf surface and proper crisper function. What it does:

• Replaces a broken or missing crisper cover to restore a stable shelf over the crisper drawer
• Helps contain spills and prevents items from falling into the crisper
• Supports produce and other refrigerated items above the drawer area
• Works with the refrigerator's crisper beam/track system to maintain proper clearance and operation

• One crisper cover (beam-style) as shown

• Always unplug the refrigerator or shut off power before servicing interior components
• Remove food and any items from the shelf area before installation
• Handle the glass carefully; lift straight up/out from the tracks or supports and slide the replacement into position
• If the cover uses plastic clips or rails, inspect and replace damaged hardware to ensure a secure fit

This is a replacement electrical plug used to reconnect a wiring harness to an appliance component, restoring a secure electrical connection and helping stop intermittent power loss or component failure. What it does:

• Provides a secure electrical connection between wiring and the appliance component
• Replaces a cracked, burned, or loose plug that can cause intermittent operation
• Helps restore power to the affected component when failure is due to a faulty connector
• Prevents arcing or poor contact that can lead to overheating or component malfunction

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle wiring and terminals carefully; do not force connectors into place
• If wiring or terminals are damaged, repair or replace them rather than relying solely on a new plug

This replacement roller restores smooth sliding motion for a refrigerator drawer or bin along its track. Replacing a cracked or worn wheel helps prevent sticking, noise, and uneven movement that can strain rails and bins. What it does:

• Provides the rolling surface for a drawer, bin, or shelf track
• Restores smooth, consistent glide when opening or closing
• Helps reduce grinding/squeaking noises and binding
• Addresses issues like wobbling, tilting, or a missing/cracked wheel

• 1 roller

• Disconnect power before servicing
• Remove the drawer/bin to access the rail and roller
• Note the roller's orientation; transfer any reusable clips or fasteners
• Ensure the wheel spins freely and the drawer glides smoothly before reloading

This Energy Guide label is a replacement sticker that restores the factory energy-use and efficiency information on the appliance. It helps you replace a lost, faded, or damaged label so important rating details remain visible. What it does:

• Displays the appliance's energy consumption and estimated annual energy use in clear, readable format
• Restores missing or faded manufacturer rating information required for reference and resale
• Makes it easy to compare energy use when evaluating or listing the appliance
• Helps maintain the appliance's original documentation and appearance

• Clean and dry the surface thoroughly before applying for best adhesion
• Align the label carefully, then press firmly from center outward to remove air bubbles
• Do not stretch or fold the label; replace if adhesive backing is damaged
• Wear gloves if needed to avoid fingerprints on the adhesive surface

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This genuine replacement screw restores a secure hold for panels, trim, or internal components. It replaces worn or missing fasteners so parts stay aligned and appliances operate safely. What it does:

• Fastens panels, brackets, or trim into place
• Replaces stripped, missing, or damaged screws
• Helps stop rattling, loose panels, or misaligned trim
• Fits OEM mounting locations that require the specified machine screw

• Use the correct driver to avoid stripping the head
• Hand-start the screw, then tighten to firm snug; do not over-torque
• Disconnect power to the appliance before accessing internal components
• If other fasteners are damaged, inspect and replace as needed

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This replacement screw secures appliance components to their mounting points so panels, brackets, and trim stay tight and aligned. Replace missing or stripped hardware to restore a solid, rattle-free fit and proper assembly integrity.

• Secures panels, brackets, and trim to prevent movement and maintain alignment
• Replaces missing, damaged, or stripped hardware that can compromise assembly
• Helps reduce rattling or vibration from loose components
• Restores proper fit after service or access panel removal

• Unplug the appliance before servicing; turn off water supply if working near dispenser/ice areas
• Compare the new screw to the original to ensure thread, head style, and length
• Start threading by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Retain and reuse any original washers, spacers, or clips as required

The Water Filter Bypass is an OEM replacement part for Frigidaire refrigerators. It provides an alternative water supply route to bypass the refrigerator's built-in water filtration system. The bypass allows refrigerator water and ice dispensers to operate without water flowing through the installed filter cartridge.

Causes of a malfunctioning bypass can include mineral buildup inhibiting proper operation of the bypass valve, worn seals or O-rings not providing a tight seal or physical damage.

Symptoms include:

• Inability to bypass the water filter when needed
• Leaks from the bypass area
• The filter bypass not functioning or engaging properly

This OEM replacement is also compatible with refrigerator brands like Electrolux, Gibson, Kelvinator, and select Kenmore models.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
