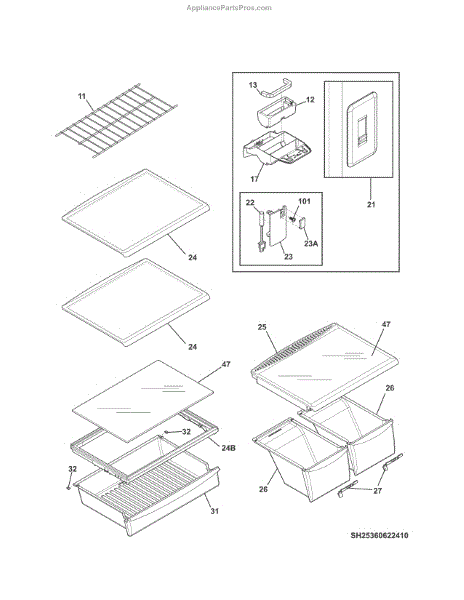

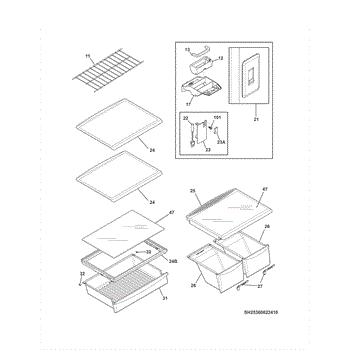

Parts for Kenmore 253.70632412 (25370632412, 253 70632412): Shelves Parts

The Freezer Shelf is an OEM replacement part for  Frigidaire freezers. It is a sturdy and durable wire or glass shelf designed to provide ample storage space within the freezer compartment, allowing you to organize and easily access frozen items. Measuring approximately 24-1/2" W x 12-1/2" D x 5/32" H, the shelf requires no hardware or tools for installation.

Causes of needing to replace a freezer shelf can include physical damage from impact or excessive force, warping or deformation due to temperature fluctuations or moisture over time, or general wear and tear from repeated use.

Symptoms of a bad freezer shelf include:

• Visible cracks or bends in the shelf material
• The shelf becoming loose or unstable, causing items to slide off
• Difficulty sliding the shelf in and out of its designated position

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This freezer temperature control assembly regulates cooling by monitoring cabinet temperature and switching the cooling system on and off to match your setting. Replace it if temperatures drift, the unit short-cycles or runs constantly, or the control stops responding. What it does:

• Senses freezer temperature and commands the cooling system to maintain your selected set point
• Provides user adjustment of freezer temperature via the control mechanism
• Helps restore consistent, reliable freezing performance
• Common failure symptoms include too warm or too cold temperatures, continuous running or no run, and an unresponsive temperature dial

• 1 freezer temperature control assembly

• Disconnect power before servicing
• Access the control housing; note wire/harness positions and component orientation for reassembly
• Transfer any reusable mounting parts from the original control as needed; secure wiring away from moving parts
• Set the control to a mid-range setting and allow up to 24 hours for temperatures to stabilize after replacement

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This cover is a replacement protective trim piece that shields internal components and restores the appliance's finished appearance. It helps keep parts protected from dirt while improving the unit's look. What it does

• Protects exposed components and wiring from dust and debris
• Restores damaged or missing exterior trim for a finished appearance
• Helps prevent accidental contact with internal parts
• Commonly replaced when cracked, broken, or missing

• One appliance cover as pictured and specified by the manufacturer

• Disconnect power to the appliance before starting any service
• Typically attaches with clips or screws; use appropriate tools and keep fasteners
• Handle carefully to avoid scratching the replacement part

The Drawer Cover Frame is an OEM replacement part for Frigidaire refrigerators. This component is specifically designed to house the shelf glass and hold the refrigerator drawer in place.

Causes for a malfunctioning Drawer Cover Frame can include physical damage from overloading, wear and tear from frequent use, or structural issues that affect its ability to securely hold the shelf glass and drawer.

Symptoms of a bad Drawer Cover Frame include:

• The shelf glass not being securely housed, leading to instability
• The refrigerator drawer is not being held firmly, causing misalignment or sliding issues
• Visible cracks or damage to the frame affecting its structural integrity
• Difficulty in accessing or securing the refrigerator drawer due to frame issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Refrigerator Shelf is an OEM part for Frigidaire refrigerators. It is designed to provide a sturdy, flat surface inside the refrigerator compartment, offering a convenient space for storing and organizing food items. This shelf is made from materials that are designed to withstand the typical wear and tear of daily use, as well as the cold temperatures within the fridge.

Causes of a bad Refrigerator Shelf can include cracking due to excess weight, damage from sharp objects, or warping from exposure to extreme temperatures or moisture.

Symptoms of a bad Refrigerator Shelf include:

• Visible cracks or breaks in the shelf,
• Sagging or inability to hold items securely,
• Difficulty sliding the shelf in or out if it is designed to do so.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Crisper Pan Cover is an OEM replacement part for Frigidaire refrigerators. It is a cover component responsible for protecting and enclosing the crisper drawers located in the refrigerator interior. The crisper pan cover works to maintain proper humidity levels inside the crisper, preventing moisture loss and food dehydration. Please note: This cover does not come with the glass

Causes of a bad cover-crisper pan can include cracks or breaks from regular use, damage from heavy items placed on top, or warping due to temperature changes.

Symptoms of a bad crisper pan cover include:

• Excessive drying out of fruits and vegetables stored in the crisper
• Loss of humidity and increased moisture evaporation
• Inability to fully enclose the crisper drawer as designed
• Potential entry points for ethylene gas leaks that accelerate ripening

This OEM Frigidaire replacement part is also compatible with brands like Electrolux, Gibson, Kelvinator, and some Kenmore models.

This slide is the track/rail that supports and guides a compatible refrigerator drawer, bin, or basket. Replacing a worn slide restores smooth, even movement so the drawer opens and closes properly without binding or popping off its track.

• Guides and supports a drawer/bin for smooth travel inside the refrigerator
• Common fix for drawers that stick, jam, feel rough, or fall off the track
• Helps keep the drawer aligned and level in its compartment
• Replace if the rail is cracked, warped, or excessively worn

• Disconnect power and remove food/items from the affected area before servicing.
• Remove the drawer and any cover/shelf as needed; retain and reuse existing screws/clips.
• Install the new slide in the same position, then test drawer movement before restoring power.

The MEAT PAN is an OEM part for Frigidaire refrigerators. It is an adjustable pan or bin located within the refrigerator to store raw or cooked meats separately from other foods. The meat pan has raised edges to contain juices and is usually removable for easy cleaning.

Symptoms of a bad meat pan include:

• Cracks or breaks in the plastic allowing leakage of meat juices
• Damage or warping preventing proper sealing and fitting within the refrigerator shelf
• Stains or odors from meat or juice residue that cannot be fully cleaned

Causes of a faulty meat pan may be repeated impact or pressure damage over time, exposure to harsh cleaning chemicals, or improper handling resulting in cracks or weakened plastic.

This replacement part is also compatible with KitchenAid, Jenn-Air, and some Kenmore-branded refrigerators.

This clip mounts to the refrigerator liner and secures the crisper cover/slide rail so the drawer stays supported and glides properly. Replace a broken or missing clip to restore alignment and smooth operation of the crisper.

• Holds the crisper cover/slide rail firmly against the cabinet liner
• Supports the crisper drawer to prevent sagging or tilt
• Helps restore smooth opening and closing of the crisper drawer
• Common symptoms of failure: loose rail, drawer off-track, difficulty sliding, or a cracked/missing clip

• Unplug the refrigerator or disconnect power before servicing
• Remove the crisper drawer and cover/glass to access the clip
• Release the old clip (snap tabs or screw), align and secure the new clip; reuse the original fastener if your model uses one
• Reinstall the cover and drawer; the drawer slides freely

The Glass Shelf Insert is an OEM replacement part for Frigidaire refrigerators. It provides versatile storage space by allowing items to be viewed clearly and easily rearranged. This insert measures approximately  23.82 x 15.50 inches

Causes of a bad shelf insert may include cracks, chips or other damage due to repeated handling or excessive weight loads not suitable for glass. Normal wear over time can also affect the shelf surface.

Symptoms of issues include:

• Visible damage detracting from shelf appearance and function
• Increased risk of items stored atop the shelf getting damaged
• Difficulty cleaning due to cracks or irregular surfaces

This OEM replacement part is compatible with models by Electrolux, Kelvinator and Kenmore as well.

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This refrigerator shelf spacer positions and supports a shelf so it sits secure and level. Replacing a worn or missing spacer helps eliminate wobble or shifting and restores proper fit and alignment inside the compartment. What it does

• Maintains correct spacing and alignment for the shelf
• Helps keep the shelf level and secure in its track or frame
• Replaces cracked, deformed, or missing spacers
• Symptoms can include a loose, tilted, or rattling shelf, or visible gaps where the shelf should seat

• One shelf spacer

• Disconnect power to the refrigerator before servicing
• Remove the shelf to access the spacer location
• Gently pry out the old spacer; avoid stressing plastic or glass components
• Press the new spacer firmly into place and reinstall the shelf, ensuring proper orientation
