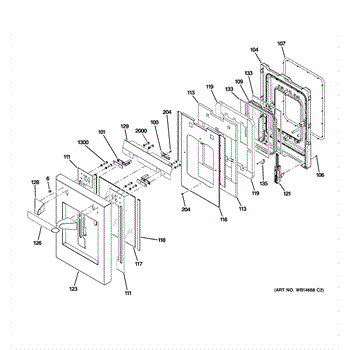

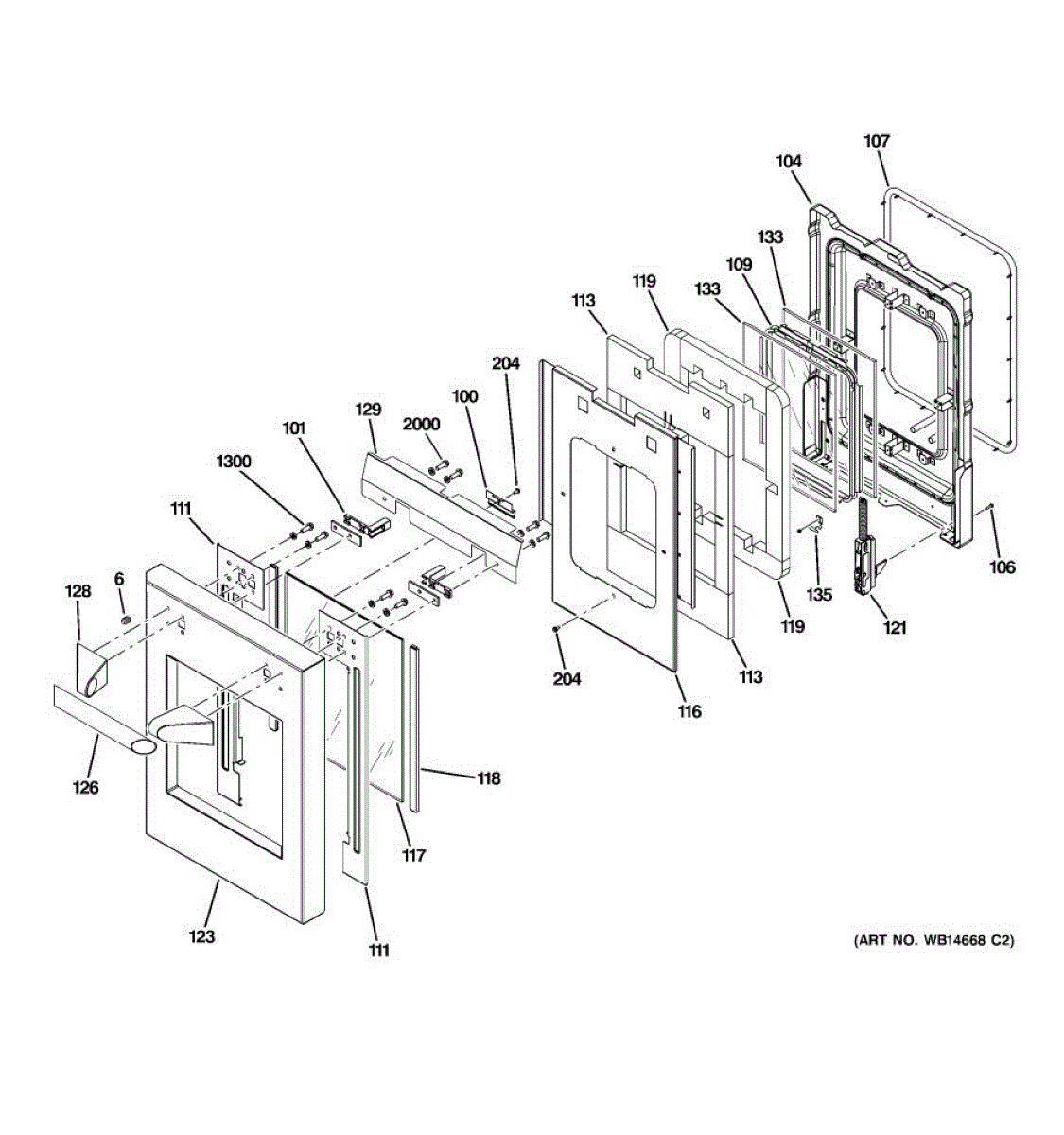

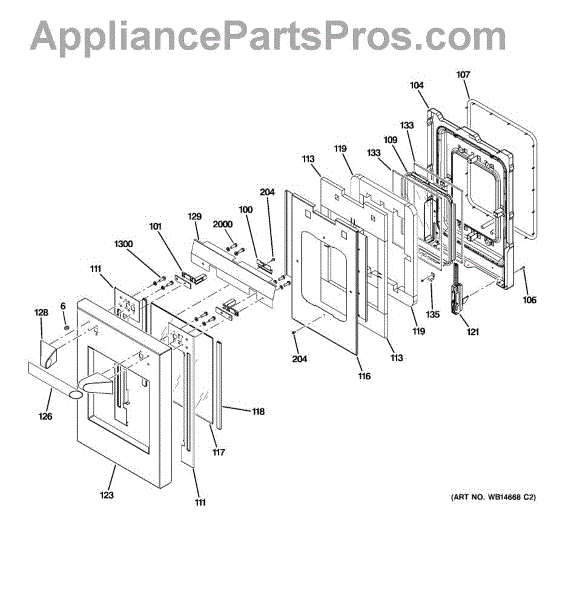

Parts for Ge ZDP486LRP3SS: 09 - Small Door Asembly Parts

This small set screw secures components inside your refrigerator. Replacing a missing or stripped set screw restores a tight, reliable hold so attached parts stay aligned and are less likely to loosen or rattle during use.

• Fastens an attached pa

Glass bracket for gas ranges. Secures and supports glass components on your range. Replace if cracked, broken, or missing to restore proper fit and stability.

Small end cap that fits the end of a range extension rail or rod to prevent over-travel and provide a finished edge. Replace if cracked, missing, or worn.

Replacement screw for gas ranges. Secures various components and panels. Needed when original screw is stripped, missing, or damaged during repair work.

Seals your range door to maintain cooking temperature and prevent heat escape. Replace when worn, cracked, or loose to restore efficiency. Confirm fit with your model.

Seals the gap between your oven door and body to maintain proper cooking temperature. Replace when worn, torn, or heat escapes. Confirm fit with model number.

Replace cracked, broken, or cloudy 12-inch door glass on your gas range. Restores clear viewing window and maintains heat containment. Direct-fit panel.

Replace your gas range's broken or worn door hinge. This structural component secures the oven door and ensures proper alignment and operation.

Replace your range's 12-inch oven door panel assembly. Restores the appearance and structure of cracked, damaged, or worn door panels on your oven.

Inner glass panel for gas range oven door viewing window. Replaces cracked, scratched, or shattered glass to restore visibility and heat retention.

Secures the glass window in your oven door. Replace if the window is loose, rattling, or misaligned. Confirm fit with your model number.

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

This is a 1/4-20 x 3/4 inch hex washer head screw used to fasten appliance components securely. It provides a durable, low-profile fastening point to keep panels and assemblies aligned and stable. What it does:

• Secures panels, brackets, and assemblies to prevent movement and maintain alignment
• Helps stop rattling or vibration caused by loose fasteners
• Restores proper fit where a missing or damaged screw causes gaps or instability
• Works with metal-to-metal fastening points requiring 1/4-20 thread engagement

• Disconnect power to the appliance before starting any repair
• Start threads by hand to avoid cross-threading, then tighten with the appropriate hex driver or socket
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts
