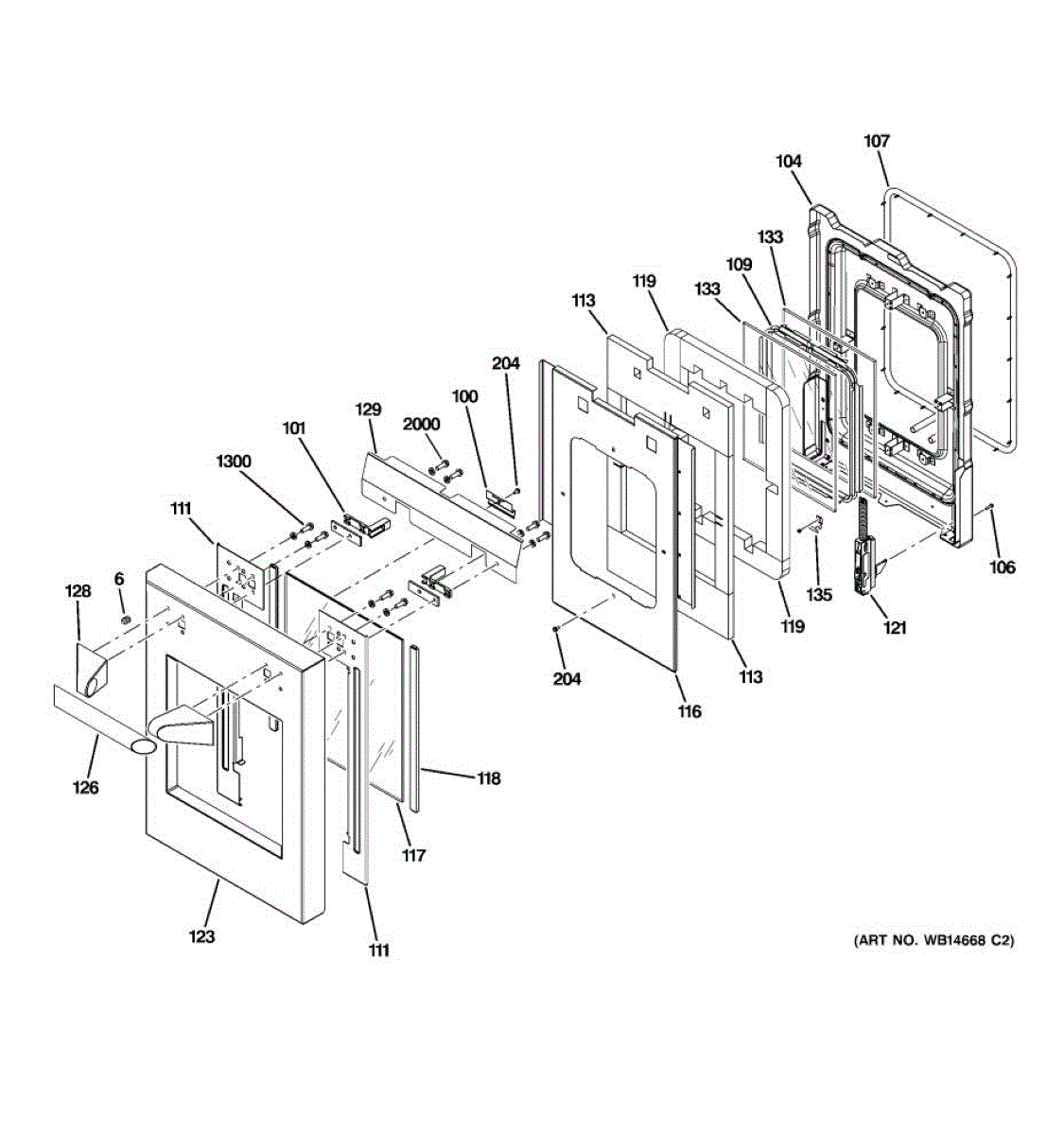

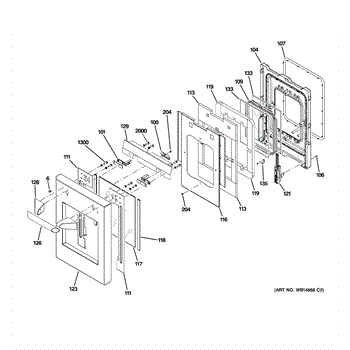

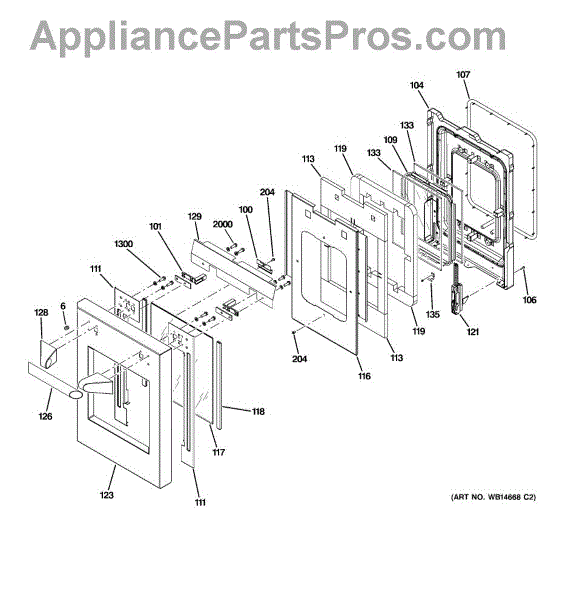

Parts for Ge ZDP486NDP5SS: 09 - Small Door Asembly Parts

This small set screw secures components inside your refrigerator. Replacing a missing or stripped set screw restores a tight, reliable hold so attached parts stay aligned and are less likely to loosen or rattle during use.

• Fastens an attached part to its mounting point to prevent movement or slipping
• Helps maintain proper alignment of handles, brackets, or trim pieces
• Reduces wobble, vibration, and rattling noises caused by loose hardware
• Replaces missing, stripped, or corroded set screws

• Unplug the refrigerator and shut off water if working near door/dispenser areas
• Support the part being secured; start the screw by hand to avoid cross-threading
• Tighten with the correct driver for your model; do not overtighten to prevent stripping
• The component is secure and aligned before restoring power

This small end cap fits the end of an extension piece to act as a stop and finish. It restores a secure, finished edge so the sliding component or trim stays aligned and doesn't over-travel during use.

• Caps the end of an extension rail or trim to prevent over-travel and pullout
• Keeps the assembly aligned to reduce wobble
• Replaces cracked, missing, or worn caps
• Helps eliminate rattling and exposed edges

• Disconnect power and allow all hot surfaces to cool before servicing
• Access the end of the extension/rail; release any locking tab and remove the old cap
• Align and snap or press the new cap into place
• Verify smooth travel and a secure stop after installation

This 12" door gasket seals the oven/range door to help maintain proper cooking temperature and prevent heat and fumes from escaping. Replacing a worn gasket restores a tighter seal for safer, more efficient operation. What it does:

• Creates a heat-tight seal around the oven/range door to help retain temperature
• Reduces heat loss and prevents smoke or fumes from leaking into the kitchen
• Helps the appliance maintain consistent cooking or baking performance
• Commonly replaced when the gasket is cracked, torn, flattened, or shows visible gaps

• One (1) door gasket (12")

• Disconnect power to the appliance and allow the oven to fully cool before beginning
• Remove the old gasket by pulling it out of the retainer channel; inspect the channel for debris
• Press the new gasket into the channel evenly, working around the door so it seats fully without twisting

This 27" oven door gasket seals the gap between the door and oven body to help maintain proper cavity temperature and reduce heat loss during cooking. It restores a tighter door seal for more consistent baking and roasting. What it does:

• Replaces worn or torn door seal that lets oven heat escape
• Helps the oven reach and maintain set temperatures more reliably
• Reduces hot spots and uneven cooking caused by a failing seal
• Minimizes heat transfer to surrounding cabinetry and reduces energy loss

• One door gasket (27")

• Disconnect power and allow the appliance to cool completely before starting
• Remove the old gasket and any adhesive or fasteners before installing the new gasket
• Press the new gasket into the door channel evenly, ensuring proper orientation and a continuous seal

A 12" replacement glass door that restores a clear viewing window for your appliance and helps contain heat. Designed as a direct-fit OEM replacement to maintain original appearance and function. What it does:

• Replaces damaged, cracked or cloudy door glass to restore safe, visible operation
• Helps contain heat and splatter inside the appliance for efficient cooking/operation
• Restores the appliance's original look when the existing glass is scratched or discolored
• Reduces drafts and maintains proper door seal performance when glass is intact

• Handle with care; glass can chip or break—wear cut-resistant gloves and eye protection
• Follow the appliance manufacturer's disassembly/reassembly instructions
• Do not overtighten hardware when reinstalling; use original screws and clips if available

This oven door glass inner panel restores the viewing window and helps contain heat for efficient cooking. Replaces a cracked, scratched or broken inner door glass to improve visibility and maintain oven performance. What it does:

• Replaces damaged or shattered inner oven door glass to restore a clear viewing window
• Helps maintain proper heat containment for consistent cooking results
• Reduces drafts and heat loss from a compromised door assembly
• Improves safety by replacing cracked or weakened glass

• Disconnect power (and gas, if applicable) and allow the appliance to fully cool before starting
• Wear cut-resistant gloves and eye protection when handling glass
• Remove the door to access the inner panel; follow OEM steps for reassembly
• Inspect door clips, gaskets and fasteners during install; replace any damaged hardware

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a 1/4-20 x 3/4 inch hex washer head screw used to fasten appliance components securely. It provides a durable, low-profile fastening point to keep panels and assemblies aligned and stable. What it does:

• Secures panels, brackets, and assemblies to prevent movement and maintain alignment
• Helps stop rattling or vibration caused by loose fasteners
• Restores proper fit where a missing or damaged screw causes gaps or instability
• Works with metal-to-metal fastening points requiring 1/4-20 thread engagement

• Disconnect power to the appliance before starting any repair
• Start threads by hand to avoid cross-threading, then tighten with the appropriate hex driver or socket
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts
