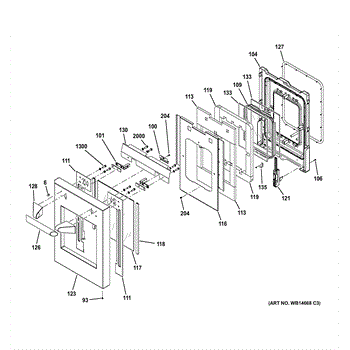

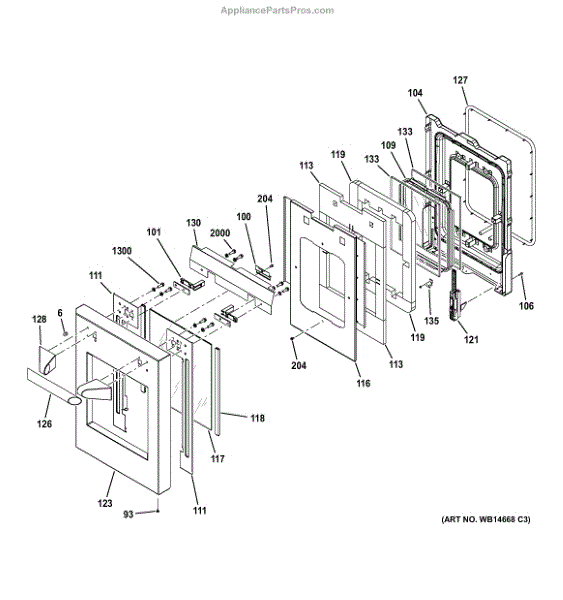

Parts for Ge ZGP486LDR4SS: Small Door Assembly Parts

Parts for Ge ZGP486LDR4SS: Small Door Assembly Parts

Location on Diagram
Part Description
Price & Availability
93
Product photo
By: Ge
Part Number: WB1X5364

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

More
$10.33

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
100
By: Ge
Part Number: WB02K10218

Glass bracket for gas ranges. Secures and supports glass components on your range. Replace if cracked, broken, or missing to restore proper fit and stability.

More
$50.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
101
Product photo
By: Ge
Part Number: WB02K10219

Small end cap that fits the end of a range extension rail or rod to prevent over-travel and provide a finished edge. Replace if cracked, missing, or worn.

More
$26.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
104
By: Ge
Part Number: WB55K10060
$63.74

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
106
By: Ge
Part Number: WB01K10089

Replacement screw for gas ranges. Secures various components and panels. Needed when original screw is stripped, missing, or damaged during repair work.

More
$13.40

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
109
By: Ge
Part Number: WB34K10110
$23.38

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
111
By: Ge
Part Number: WB07K10379
$32.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
111
By: Ge
Part Number: WB07K10380
$34.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
113
By: Ge
Part Number: WB35K10135
$16.12

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
113
By: Ge
Part Number: WB35K10136

This is the bottom door insulation for the refrigerator door. It helps maintain cold temperatures and improves energy efficiency by insulating the door cavity where cold air loss commonly occurs. What it does:

  • Fills the lower door cavity to reduce heat transfer and help keep interior temperatures stable.
  • Helps prevent frost buildup by supporting consistent cold-air retention.
  • Reduces run-time and improves cooling performance when original insulation is damaged or missing.
What's included:
  • One bottom door insulation panel (12" length) as shown.
Install notes:
  • Disconnect power and empty the door before starting; follow manufacturer instructions to avoid damaging door components.
  • Handle insulation carefully to avoid tearing; replace any damaged mounting clips or adhesives as needed.
  • Dispose of old insulation per local regulations.

More
$15.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
116
By: Ge
Part Number: WB55K10058
$44.21

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
117
By: Ge
Part Number: WB57K10136

Replace cracked, broken, or cloudy 12-inch door glass on your gas range. Restores clear viewing window and maintains heat containment. Direct-fit panel.

More
$24.80

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
118
By: Ge
Part Number: WB04K10028
$12.62

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
119
By: Ge
Part Number: WB35K10137
$15.67

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
119
By: Ge
Part Number: WB35K10138
$13.67

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
121
By: Ge
Part Number: WB10K10013

Replace your gas range's broken or worn door hinge. This structural component secures the oven door and ensures proper alignment and operation.

More
$64.36

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
121
By: Ge
Part Number: WB10K10014
$56.22

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
123
By: Ge
Part Number: WB56K10075

Replace your range's 12-inch oven door panel assembly. Restores the appearance and structure of cracked, damaged, or worn door panels on your oven.

More
$321.25

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
126
By: Ge
Part Number: WB15K10089
$37.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
127
By: Ge
Part Number: WB02K10220

Seals your range door to maintain cooking temperature and prevent heat escape. Replace when worn, cracked, or loose to restore efficiency. Confirm fit with your model.

More
$51.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
130
By: Ge
Part Number: WB02K10261
$16.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
133
By: Ge
Part Number: WB57K10137

Inner glass panel for gas range oven door viewing window. Replaces cracked, scratched, or shattered glass to restore visibility and heat retention.

More
$40.64

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
135
By: Ge
Part Number: WB02K10222

Secures the glass window in your oven door. Replace if the window is loose, rattling, or misaligned. Confirm fit with your model number.

More
$11.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
204
Product photo
5.0 (3)
By: Ge
Part Number: WB1K5062

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

More
$9.88

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
2000
By: Ge
Part Number: WB01K10100
$8.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
