Parts for Kitchenaid KGCT305TBL2: 05 - Spark Module And Wiring Harness Parts

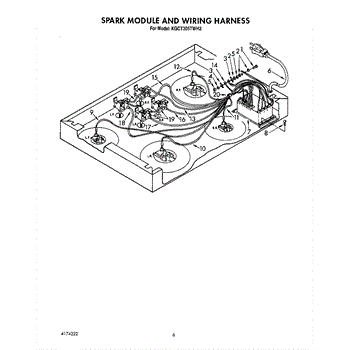

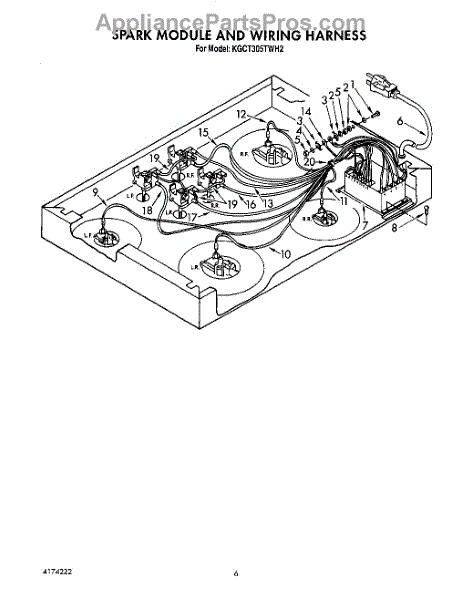

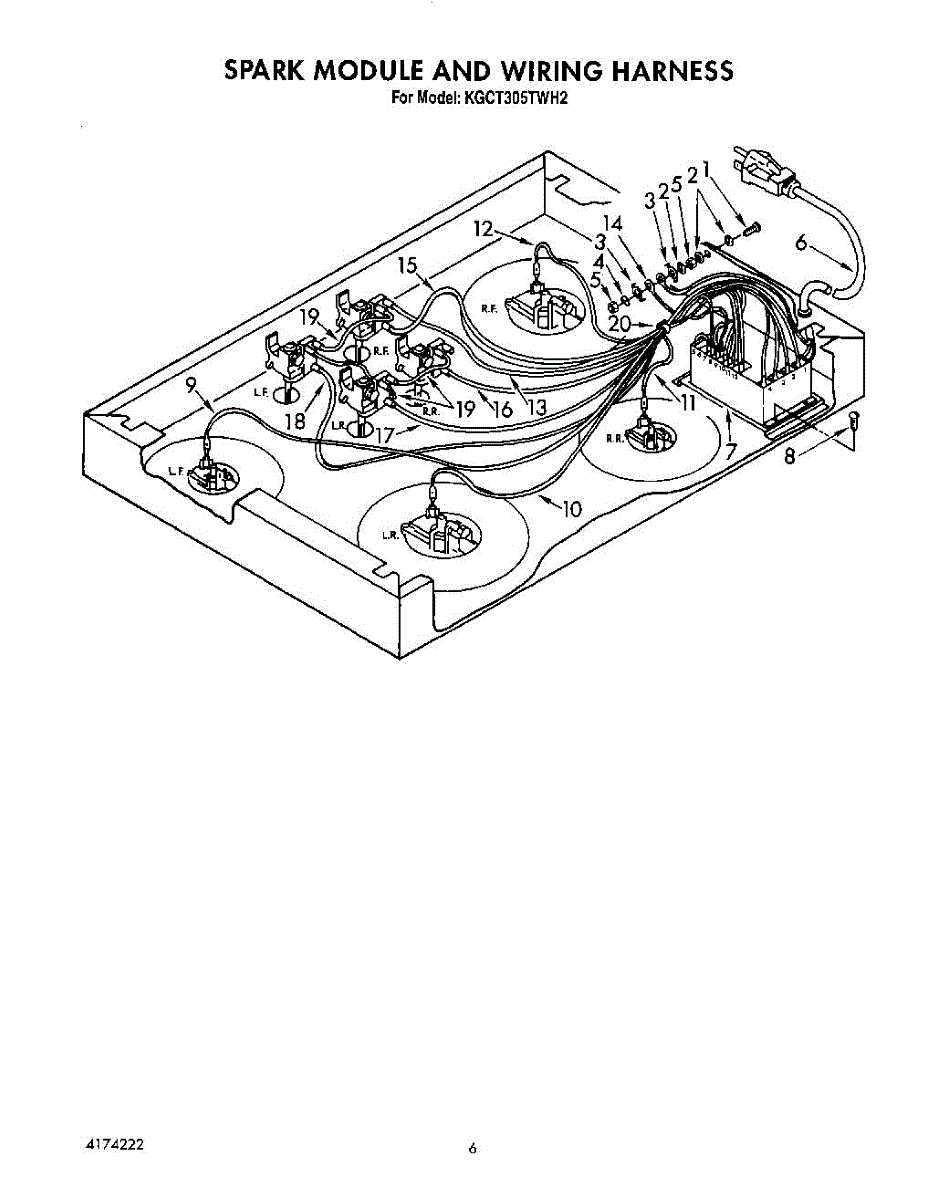

05 - Spark Module And Wiring Harness

Parts for Kitchenaid KGCT305TBL2: 05 - Spark Module And Wiring Harness Parts

Location on Diagram
Part Description
Price & Availability
1

Screw, Grounding

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2

Washer, Internal Tooth Grounding

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3

Clamp, Washer (Copper)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4

Washer, Coil Spring

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

5

Nut, Hex (Brass)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

6

Power Cord

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Product photo

Spark Module (Surface Burner Ignition)

4.8 (5)
By: Whirlpool

This spark module controls surface-burner ignition on gas ranges and cooktops. It generates the high-voltage pulses that light the flame when you turn a knob, restoring fast, reliable burner lighting and eliminating constant clicking.

  • Sends high-voltage pulses to the burner igniters when a surface knob is turned to ignite the flame
  • Coordinates sparking for multiple surface burners
  • Failure symptoms can include no spark on all burners, intermittent or weak sparking, or continuous clicking even with flames present
  • Replacing a failed module restores proper burner ignition performance
What's included: 1 spark module Install notes:
  • Disconnect power and shut off the gas supply before servicing
  • Access the module, then photograph wiring and transfer leads one at a time to the new module
  • Mount securely and ensure igniter leads are fully seated and routed away from heat and sharp edges
  • Restore power/gas and verify each burner lights promptly with a strong, consistent spark

More
$160.95
Compare At:
$193.14
You Save:
$32.19

IN STOCK
Ships Today Guaranteed
Add to Cart
8

Screw, Spark Module

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

10

Wire Assembly Yellow 35`` Spark Module Term.4 To Right Front Burner Term.1

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11

Wire Assembly Red 16`` Spark Module Term.1 To Left Front Burner Term.1

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12

Wire Assembly Yellow 35`` Spark Module Term.4 To Right Front Burner Term.1

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13

Wire Assembly Red 24`` Spark Module Term.12 To Left Front Burner Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14

Wire Assembly Module Ground

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

15

Wire Assembly Red 24`` Spark Module Term.12 To Left Front Burner Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

16

Wire Assembly Red 24`` Spark Module Term.12 To Left Front Burner Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17

Wire Assembly Red 24`` Spark Module Term.12 To Left Front Burner Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

18

Wire Assembly Red 24`` Spark Module Term.12 To Left Front Burner Switch

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

19

Wire Assembly No.13 14, And 15 (Black) (Loop Wires For Burner Switches)

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

20

Tie-Wire

By: Whirlpool

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
