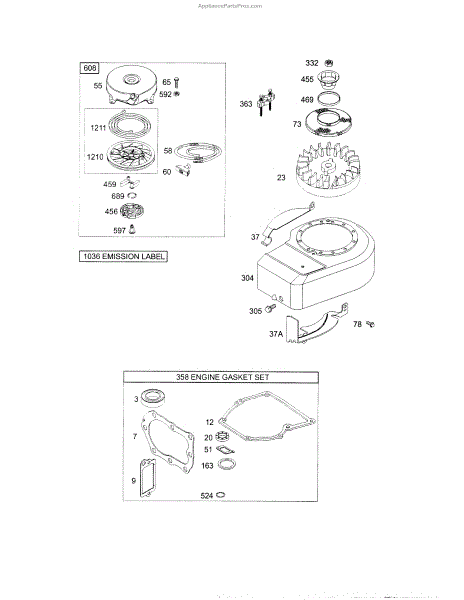

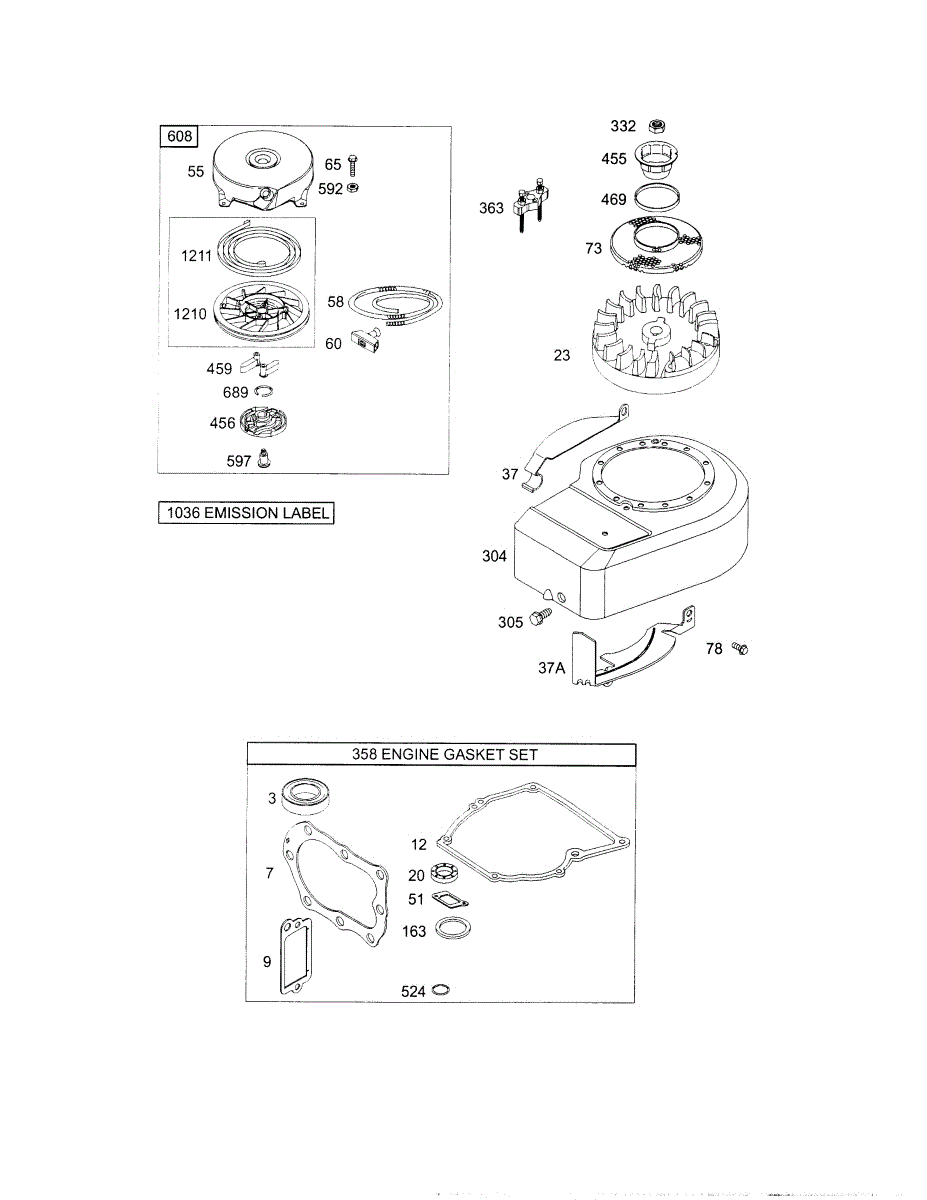

Parts for Briggs & Stratton 9G902-0145-D1: Starter / Flywheel Parts

This replacement crankcase gasket is a genuine OEM part designed for a range of different small gas-powered lawn appliance engines. It is commonly found in tillers and lawn mowers. The crankcase is a housing for the crankshaft, which receives reciprocal motion from the pistons and transforms it into rotation motion. This gasket helps seal the crankcase to create an airtight chamber and prevent oil from leaking so that the crankshaft can operate smoothly. As the engine runs, it produces a lot of heat and gases that eventually wear on gaskets. Over time, all of this stress can cause a gasket to degrade and break its seal. If this happens, oil will leak from the crankcase, the engine will easily overheat, and greyish white smoke will visibly blow out from the exhaust pipe. Replacing a crankcase gasket will require disassembling much of the engine, as it is an internal part, so we recommend following the owner's manual or consulting the manufacturer's website for instructions. This part is a high-quality replacement gasket manufactured to exactly match the specifications of the original part. It is compatible with Toro and Briggs & Stratton engines and ships individually.

This is a replacement screw that can be used on various types of lawn and garden equipment. The type of equipment will affect where the screw is used on the tool. A screw is used to attach various components together so nothing comes loose while the tool is in use. It can also be used with a nut. It's best to choose a nut that has the same finish and threading as the screw.A screw can be damaged in many ways. If this occurs, it will need to be replaced. Corrosion, wear and tear, extreme stress, and high temperatures can all cause a screw to fail. Inspecting the screw can indicate whether it will need to be replaced. Use a screwdriver to take off the old screw, or use a pair of pliers if the screw has become stripped. Replace it with a new screw.This is an authentic OEM replacement part sourced directly from the manufacturer. Each screw is sold individually. The component is designed for use with lawn mowers, snowblowers, tillers, pressure washers, leaf blowers, edgers, chainsaws, generators, and wood chippers manufactured by Briggs & Stratton, Simplicity, Toro, MTD, Cub Cadet, Lawn-Boy, Homelite, and Murray.

This is a general use replacement screw. It is a standard piece of hardware for securing various components on lawn and garden equipment that will have multiple locations and uses based on the equipment model. Owners should refer to diagrams for proper location and application of this part. As a securing tool, this screw can become worn over time. The threads can strip or the screw can become lost during other repairs. This is when a replacement may be needed. Because this is a general-use part, it might be a good idea to keep a few extras on hand. This genuine replacement screw is designed for use with Briggs & Stratton, Toro, and Murray lawn and garden machines, including over 150 models of generators, tractors, snowblowers, and pressure washers. The screw can be replaced with a wrench in all applications and should only take a few minutes to fix. This durable screw is made of sturdy metal and sold as a single unit. Those who need additional screws will have to order multiple quantities.

The pawl friction plate on lawn and garden engines is an essential part of the starter assembly that is needed to crank start the machine. It provides power to the starter cup. If the engine on a machine will not start, it could be due to a broken or worn pawl friction plate. Replace the plate immediately to ensure your machine is working properly. This is genuine OEM part is compatible with a range of product types, including lawnmowers, snowblowers, tillers, pressure washers, generators, log splitters, wood chippers, leaf blowers, and chippers. Compatible brands include Briggs & Stratton, Craftsman, Cub Cadet, Lawn-Boy, Snapper, Simplicity, and Toro. The part is sold individually. Keep in mind that this only includes the pawl friction plate. It does not contain the screw or spring, and these will need to be purchased separately.

This is a replacement screw to secure the pawl friction plate used in many types of lawn and garden equipment. The part is also sometimes called a flange bolt. It is identical to the original screw that came with the machine and will replace a lost or damaged screw. The screws could become damaged due to corrosion or an incident that causes the screw to bend or break. They also serve as replacements in case the screw was lost. Replacing the screw is a simple repair to make. This is an authentic OEM replacement screw that is sold individually. Some buyers might want to have an extra screw on hand. The replacement screw for the pawl friction plate can be used on lawn mowers, snowblowers, tillers, pressure washers, generators, edgers, log splitters, wood chippers, and other small engines. Compatible brands include Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn-Boy, Snapper, MTD, and Simplicity.

This is a quality recoil starter assembly that is used in lawnmower and edger engines. The recoil starter makes it easier for a user to pull start the tool. The recoil starter assembly includes all needed parts, including the starter pulley, the plastic housing, the grip, the starter spring, and the pull rope. All additional hardware is also included.Over time, the components inside a recoil starter assembly can start to fail or wear out and will need to be replaced. To replace this part, first turn off the lawnmower or edger and remove the spark plug wire. The recoil starter cover can then be removed from the motor. Remove the full recoil starter assembly and then attach the new recoil starter to the cover using the included hardware. Replace the other components and test the starter and motor before running the equipment.This is an authentic OEM replacement part directly sourced from the manufacturer. It is sold as a single component. The recoil starter assembly is designed for use with lawnmowers and edgers manufactured by Cub Cadet and Briggs & Stratton.

Firing up the lawn mower should be a simple act: hold down the safety bar, grip the hand pull, and yank the rope. What if nothing happens? The pulley works by tightening the spring, then letting it loose, creating compressed air and fuel at the same time the magneto fires the spark plug. It is rare to have an issue with the pulley spring assembly that starts the chain reaction and results in the engine coming to life, but it is possible for the part to fail. If there is a problem with the starter mechanism then it is typically the rope pull wearing out. Users will know when the pulley assembly isn't working either because there is no resistance when the rope is pulled or pulling the rope results in no compression (the engine doesn't sound as if it's turning). When it is determined that the pulley spring needs to be replaced, the user should examine the pull rope and handle to make sure those items do not need to be replaced as well. The most important consideration in replacing this part is to make sure the replacement is an OEM genuine replacement part, which will exactly match this pulley. The pulley is compatible with Cub Cadet and Briggs & Stratton engines.
