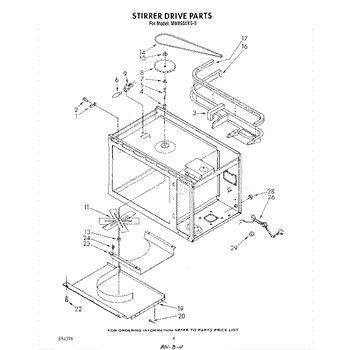

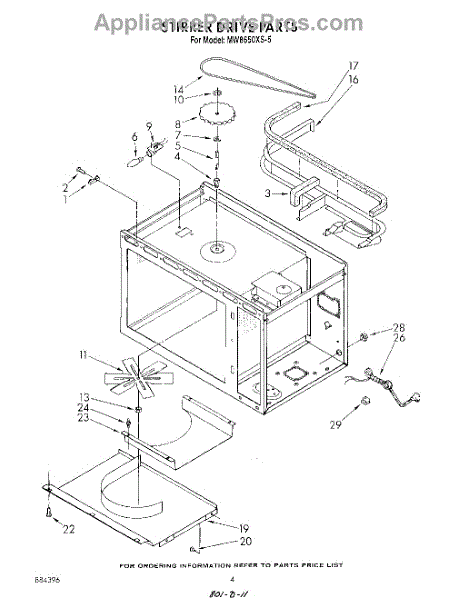

Parts for Whirlpool MW8650XS5: 03 - Section Parts

A replacement incandescent lamp that restores oven cavity lighting so you can check cooking progress without opening the door. Fits the OEM light socket and provides bright, direct illumination for safe food monitoring. What it does:

• Replaces a burned-out oven/incandescent light so the interior is lit during use
• Helps you see food clearly to prevent overcooking or missed doneness
• Restores normal light operation when the oven lamp no longer powers on or flickers
• Works with the oven light assembly and standard appliance light sockets

• Disconnect power or unplug the appliance before replacing the bulb to avoid shock
• Allow the old bulb and oven interior to cool before handling
• Use a cloth or gloves to install the bulb to avoid skin oils on the glass
• If the new bulb still does not light, check the socket and replace switches or wiring only after proper diagnosis

This stirrer drive belt transfers motor power to the stirrer assembly so the stirrer can rotate properly. It replaces a worn or broken belt to restore consistent stirrer movement and reduce slipping or noise. What it does

• Transfers torque from the motor to the stirrer shaft to enable rotation
• Commonly used when the stirrer stops turning, slips, or rotates intermittently
• Helps restore even operation and proper circulation tied to the stirrer function

• One stirrer drive belt

• Disconnect power to the appliance before starting any repair
• Inspect pulleys and the stirrer assembly for damage and alignment before installing the new belt
• Route the belt per the OEM layout and ensure proper tension; replace damaged components as needed

This instruction kit provides the original paper literature for the appliance, giving clear installation, operation and safety guidance so you can set up and use the unit correctly when factory literature is missing or worn. What it does

• Supplies installation and user instructions, safety warnings, and basic operating guidance
• Restores missing or damaged owner/install manuals so owners have correct procedures
• Helps avoid setup errors by providing manufacturer-recommended steps and cautions
• Useful for reference during maintenance or when transferring the appliance to a new owner

• Read all instructions and safety warnings before installing or operating the appliance
• Keep literature with the appliance for future reference

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Specs: 25ft, 14 Ga. 150 c Black

Size: 1/3 oz.

Specs: 25ft,14 Ga., 200 c Brown

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Size: 2.8 fl.oz tube. 748 non-corosive sealant.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.
