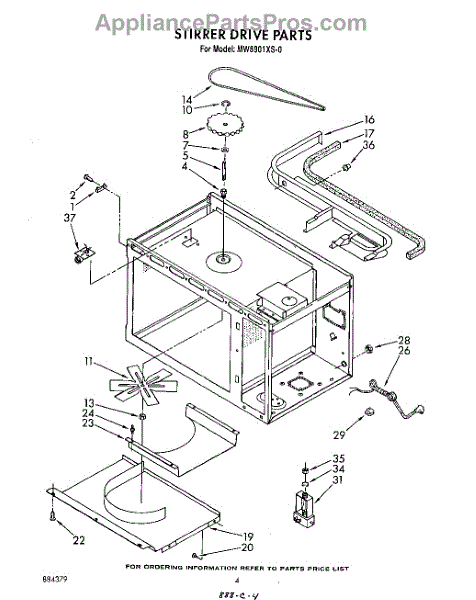

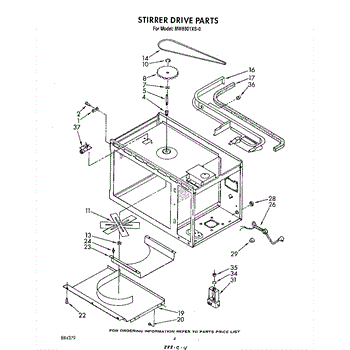

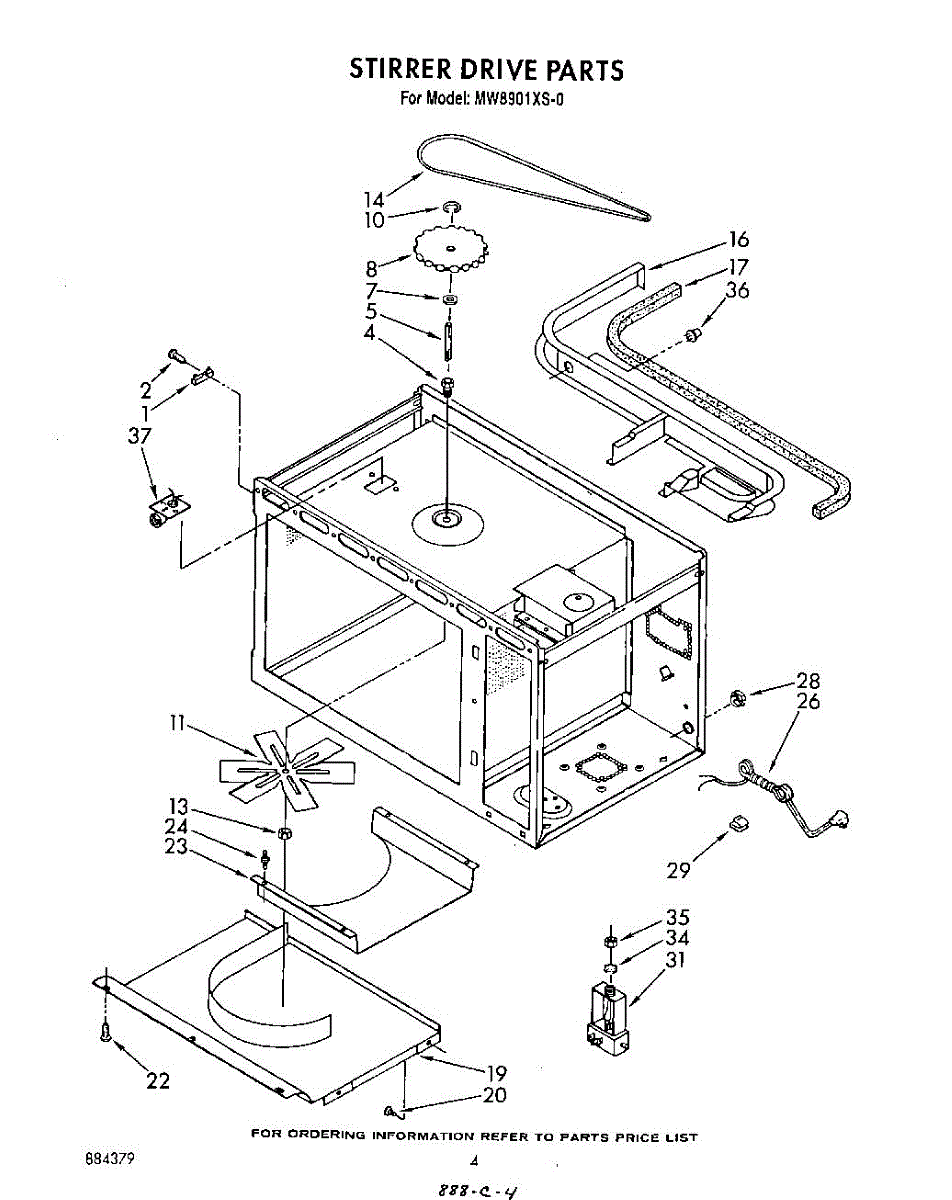

Parts for Whirlpool MW8901XS0: 03 - Stirrer Drive , Lit / Optional And Li Parts

This stirrer drive belt transfers motor power to the stirrer assembly so the stirrer can rotate properly. It replaces a worn or broken belt to restore consistent stirrer movement and reduce slipping or noise. What it does

• Transfers torque from the motor to the stirrer shaft to enable rotation
• Commonly used when the stirrer stops turning, slips, or rotates intermittently
• Helps restore even operation and proper circulation tied to the stirrer function

• One stirrer drive belt

• Disconnect power to the appliance before starting any repair
• Inspect pulleys and the stirrer assembly for damage and alignment before installing the new belt
• Route the belt per the OEM layout and ensure proper tension; replace damaged components as needed

This part has been discontinued by the manufacturer and is no longer available.

This instruction kit provides the original paper literature for the appliance, giving clear installation, operation and safety guidance so you can set up and use the unit correctly when factory literature is missing or worn. What it does

• Supplies installation and user instructions, safety warnings, and basic operating guidance
• Restores missing or damaged owner/install manuals so owners have correct procedures
• Helps avoid setup errors by providing manufacturer-recommended steps and cautions
• Useful for reference during maintenance or when transferring the appliance to a new owner

• Read all instructions and safety warnings before installing or operating the appliance
• Keep literature with the appliance for future reference

This part has been discontinued and is no longer available.

Specs: 25ft, 14 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Size: 1/3 oz.

Specs: 25ft,14 Ga., 200 c Brown

Color: Citrine white. Size: 0.6 fl.oz. Bottle with brush.

Color: Citrine white. Size: 4.5 oz. can. Acrylic appliance aerosol can spray paint.

This OEM Replacement Part is an Adhesive designed for use in high-temperature areas of your Whirlpool appliances. Approximately 7.5 inches long, this white adhesive is suitable for securing parts such as grate feet, gaskets, and felt seals. It is especially useful, particularly in hot zones like a cooktop. The heat-resistant properties of this adhesive ensure that the bond integrity remains uncompromised even under high-temperature conditions.

Contained in a 3oz bottle, this adhesive forms a resilient bond between various components. It is commonly used in conjunction with gaskets, felt seals, and rubber feet. The RTV high temp silicone adhesive/sealant guarantees the safety and longevity of your appliance by ensuring a secure fit of parts exposed to high heat.
