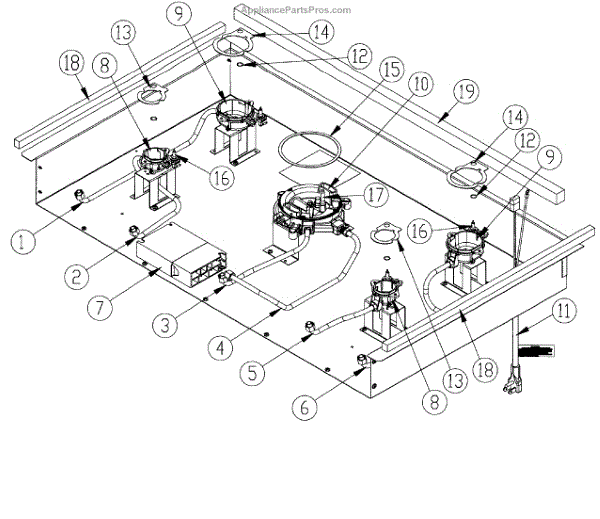

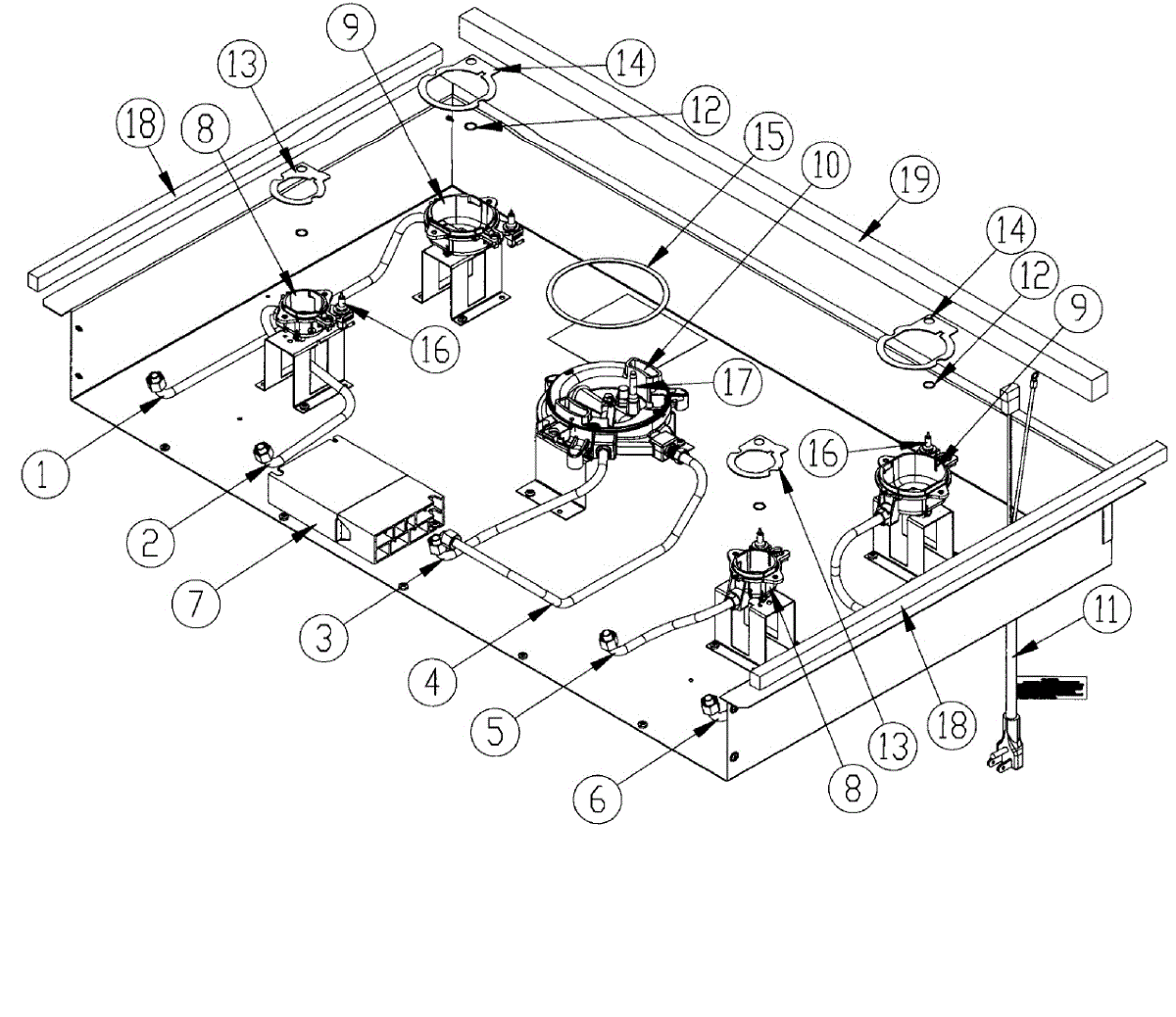

Parts for Dacor DCT365SNG: Sub-Cooktop Parts

This 5-point spark electrode kit replaces the igniter module and electrode assembly that creates sparks to light gas burners, restoring reliable ignition and stopping intermittent sparking or no-ignite conditions. What it does:

• Generates timed sparks to ignite gas burners when the control calls for heat
• Replaces worn or cracked electrodes that can cause weak or no spark
• Fixes symptoms like continuous clicking, one or more burners failing to light, or intermittent ignition
• Works as the central spark module and electrode harness for multi-burner gas ranges

• Disconnect power and shut off the gas supply before servicing
• Handle ceramic/porcelain electrode tips carefully to avoid cracking
• After installation, restore power/gas and test each burner for proper ignition

This O-ring seals the igniter assembly to prevent gas or air leaks and help ensure reliable ignition performance. It's a small replacement seal used when the original is worn, cracked, or missing. What it does:

• Creates a tight seal around the igniter assembly to reduce leaks
• Helps maintain proper ignition performance by keeping components sealed
• Commonly replaced if brittle, cracked, flattened, or after igniter service
• Small, inexpensive part that protects nearby components from gas or moisture exposure

• One O-ring (igniter) as pictured

• Turn off gas and power to the appliance before servicing
• Replace only with the exact O-ring size for your igniter to ensure a proper seal
• Inspect surrounding gaskets and components and replace if damaged

This burner gasket seals the cooktop burner to help stabilize the burner head and limit debris or soot build-up for more consistent cooking. It's a direct-fit service seal used during burner maintenance or replacement. What it does:

• Provides a tight seal between the burner head and cooktop surface to keep crumbs and spills out of the burner area
• Helps keep the burner seated and stable for consistent heat distribution
• Reduces visible soot and debris accumulation around the burner
• Can improve burner appearance by closing gaps and preventing food intrusion
• Common symptom: visible gap around the burner, excessive soot, or a burner that wobbles

• One burner gasket (single)

• Turn off gas supply and power to the appliance before beginning work
• Remove the burner cap and head per the manufacturer's instructions to access the gasket
• Seat the new gasket evenly around the burner before reassembling components
• After reinstalling, restore power/gas and observe the burner for proper seating and normal flame behavior; stop if you detect unusual gas odor or flame issues

This service burner gasket seals the burner assembly to the cooktop, restoring a proper seal to help stabilize flames and improve ignition reliability. Use it to replace worn or damaged gaskets on compatible Samsung gas cooktops. What it does:

• Seals the burner-to-cooktop gap to help prevent gas leaks and keep burner components aligned.
• Helps maintain consistent flame shape and heat for more even cooking.
• Can reduce symptoms like sputtering or uneven flames, difficulty igniting, or visible gaps around the burner.
• Fits the specified burner assembly and restores intended burner performance when the existing gasket is cracked, torn, or compressed.

• Turn off the appliance and shut off the gas supply before attempting any service.
• Remove the burner cap and head per the appliance's service instructions; seat the gasket fully around the burner base.
• Inspect surrounding components (burner head, screws, mounting surface) and replace any damaged parts.

This dual burner gasket seals the burner assembly to the cooktop surface. Replacing a worn or missing seal helps contain spills, maintain proper airflow for a steady flame, and protect the cooktop from heat and moisture intrusion.

• Creates a tight seal between the dual burner base and the cooktop
• Helps maintain proper air/gas flow for consistent ignition and flame quality
• Helps keep spills and debris out of internal burner compartments
• Replace if the seal is cracked, flattened, brittle, or missing; or if flames lift or yellow around the burner

• Disconnect electrical power and shut off the gas supply before servicing
• Allow the appliance to cool completely before disassembly
• Remove grate, burner cap, and burner head to access the seal; clean mating surfaces before installing
• Seat the gasket flat without stretching; reassemble and verify proper burner operation per manufacturer instructions

This reignition plug is the replacement electrode that helps relight a gas burner or oven burner when the flame goes out, restoring the appliance's automatic re-ignition function for safer, more reliable operation. What it does:

• Serves as the spark electrode that senses/flame and creates a spark to re-ignite a gas burner
• Helps stop continuous clicking when the burner fails to light
• Addresses symptoms like a burner that won't light or that repeatedly goes out
• Works as a direct replacement for the single reignition electrode in compatible Samsung gas ranges/ovens

• Turn off gas supply and disconnect power to the appliance before servicing
• Handle the electrode carefully — avoid bending or damaging the ceramic insulator or wire lead
• Ensure proper seating and secure connections; consult OEM service literature for routing and torque where specified
