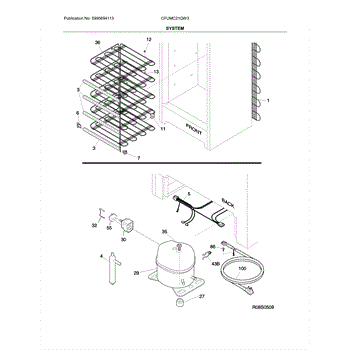

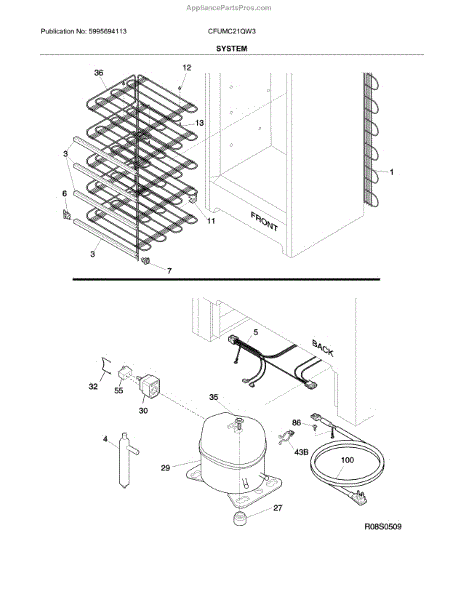

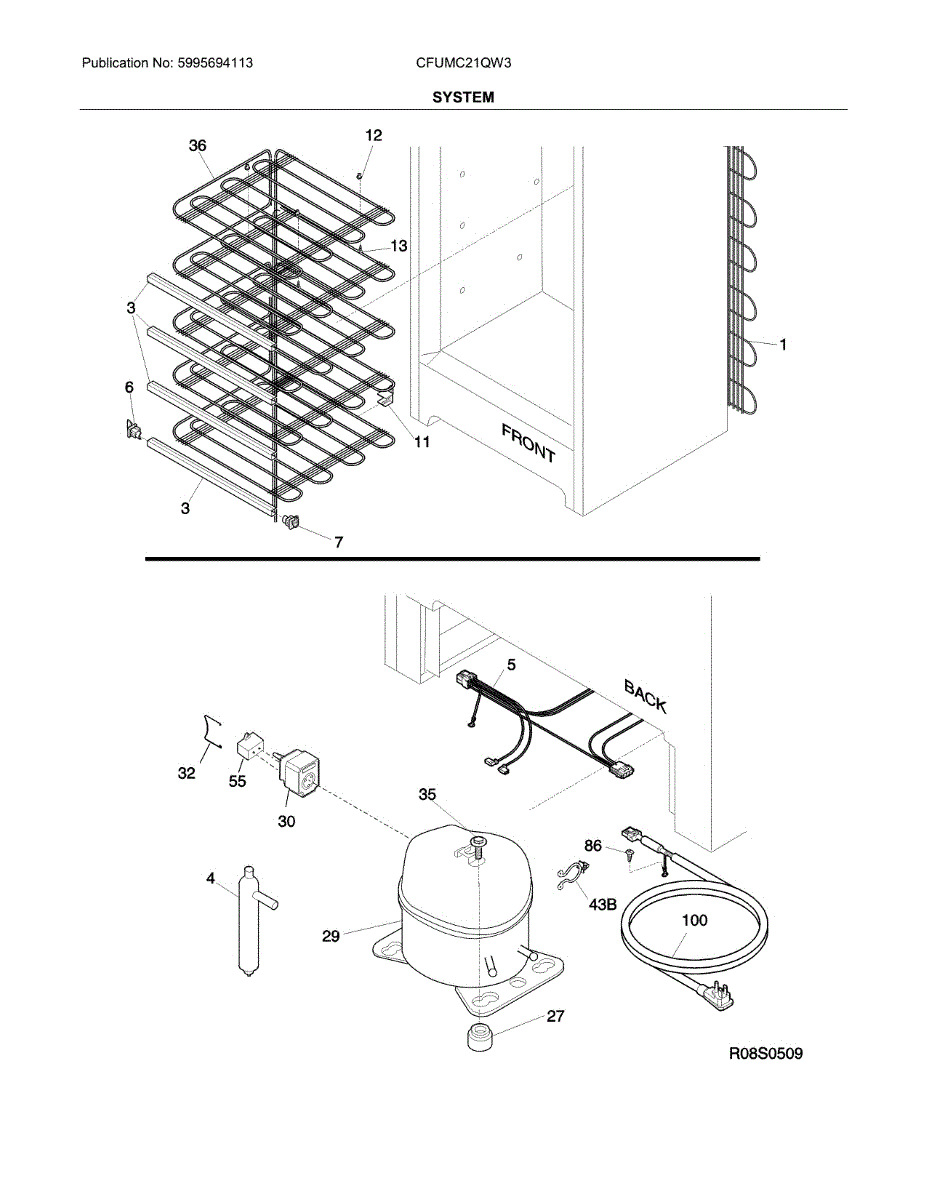

Parts for Crosley CFUMC21QW3: System Parts

Includes service line.

This main wiring harness routes power and signals between a refrigerator's control board and its components so the appliance can run its compressor, fans, lights and defrost system reliably. What it does:

• Distributes electrical power and control signals to compressor, evaporator and condenser fans, interior lights and defrost/heater circuits
• Restores power routing when a damaged harness causes intermittent or complete loss of function
• Can resolve symptoms such as no lights, no compressor or fan operation, intermittent power to components, or defrost/ice-maker failures
• Connects directly to the appliance's control board and component plugs to maintain factory wiring organization

• Always disconnect power to the appliance before starting work to avoid shock or short circuits
• Take photos or label connectors before removing the old harness to ensure correct reassembly
• Route the new harness along factory clips and channels; avoid pinching or sharp edges that can chafe wires
• Ensure all connector pins are fully seated and secure; test appliance functions after restoring power

The Support is an OEM part for Frigidaire refrigerators. This component is designed to provide structural stability and support within the refrigerator, ensuring that various internal parts remain securely in place during operation.

Over time, the support can wear out or become damaged due to regular use, heavy loads, or accidental impacts. Issues such as the refrigerator shelves not staying in place, unusual noises during operation, or visible damage to the support structure are signs that a replacement may be necessary.

Symptoms of a bad support include:

• Shelves not staying in place
• Unusual noises during operation
• Visible damage to the support structure

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Support-Shelf is an OEM part for Frigidaire freezers, designed to provide sturdy and reliable support for the freezer shelves. This part ensures that the shelves remain level and secure under the weight of stored items.

Causes of a bad Support-Shelf can range from overloading shelves beyond their weight capacity, to normal wear and tear from years of use.

Symptoms of a bad Support-Shelf include:

• Shelves sagging or not sitting level, which can lead to inefficient storage and the risk of items falling.
• Cracks or breaks in the support, compromising the stability of the entire shelving system.
• Difficulty installing or removing shelves, indicating that the supports may be damaged or misshapen.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This electronic control board powers and regulates the oven/range console, letting the user select functions and the unit execute timed cycles. It replaces a failed console controller to restore normal control operation. What it does

• Receives user inputs from the touchpad/knobs and sends commands to the oven's heating elements and timers
• Manages the display, clock, and control logic for cooking modes and timed functions
• Can stop or prevent cooking when the original board fails, causing unresponsive controls or error codes
• Helps resolve symptoms like an unlit display, non-responsive buttons, or inability to start cooking cycles

• Power off and unplug the appliance before starting work to avoid shock or injury
• Handle the board by its edges and avoid touching components to prevent electrostatic damage
• Reconnect all wiring harnesses to their original locations; take photos before disassembly to aid reassembly

This sleeve is a small spacer/bushing used in select Frigidaire-built appliances to keep mating parts aligned and moving smoothly. Replacing a worn sleeve helps eliminate play, reduce friction, and restore proper operation.

• Provides a guided, low-friction surface between parts that slide or rotate
• Maintains correct spacing/alignment to prevent wobble and rubbing
• Helps reduce wear on shafts, pins, or fasteners it interfaces with
• Typical symptoms: looseness or wobble, squeaking/scraping noises, uneven movement, or visible cracking/missing sleeve

• Disconnect power before servicing; shut off gas/water if applicable to your model
• Use your model's diagram to locate the sleeve and note orientation before removal
• Clean and inspect the mating shaft/pin or fastener; replace any severely worn components
• Seat the sleeve fully; avoid over-tightening hardware that passes through the sleeve

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

The Run Capacitor is an OEM part for Frigidaire refrigerators. It helps maintain a consistent electrical current to the compressor, ensuring efficient operation and optimal cooling performance.

Causes of a bad run capacitor can include electrical surges, prolonged use leading to wear and tear, or physical damage. A failing capacitor can lead to the compressor running inefficiently or not at all, affecting the refrigerator's ability to maintain the desired temperature.

Symptoms of a bad run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running inconsistently
• Clicking sounds coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw
