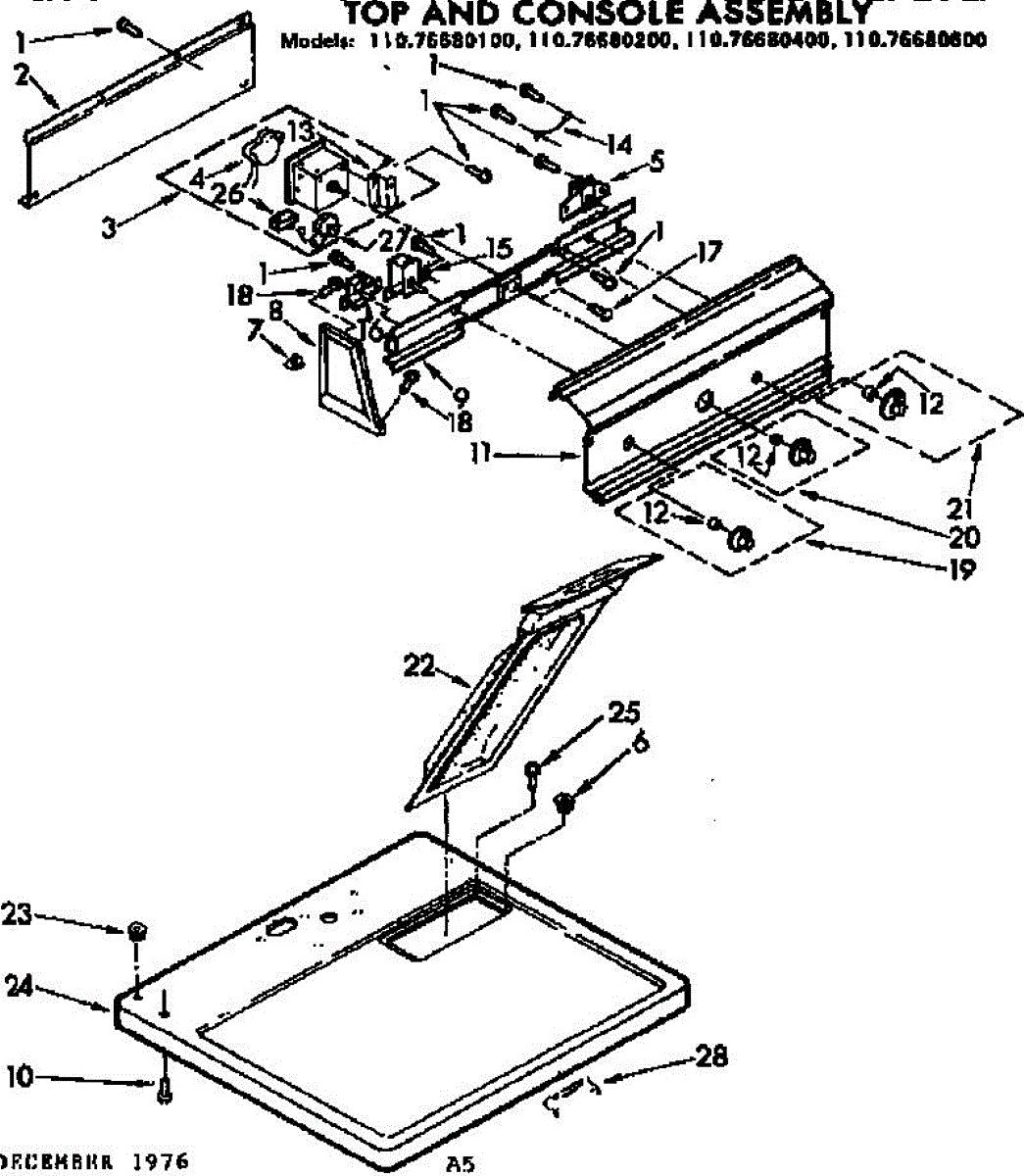

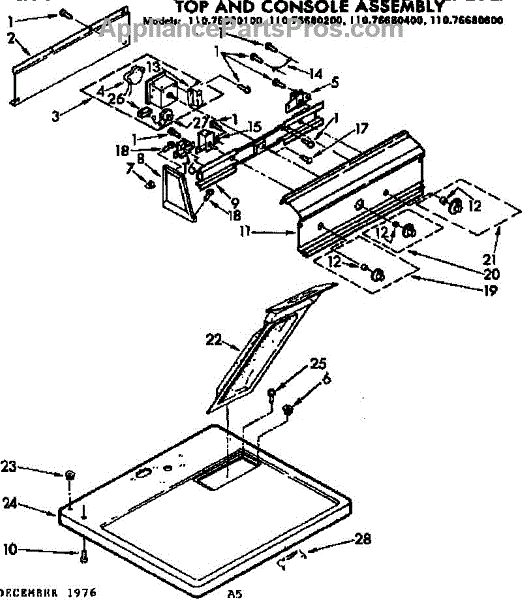

Parts for Kenmore 110.76680100 (11076680100, 110 76680100): Top And Console Assembly Parts

This push-to start relay helps the compressor begin running so your refrigerator can cool. It replaces a failed start relay to restore reliable compressor starting and prevent repeated start attempts. What it does:

• Provides the initial electrical boost to engage the compressor motor
• Prevents hard-start symptoms like repeated clicking, humming, or the compressor not running
• Helps avoid compressor overheating from repeated start attempts
• Works with the compressor's run capacitor and overload protector as part of the starting circuit

• Disconnect power to the appliance before accessing the compressor or electrical components
• Replace the relay on the compressor terminal block; match terminal orientation and fit

This fixed-value resistor is an electrical component used in select dryers to limit current in a specific control circuit. It helps the timer or electronic control operate correctly by dropping voltage to safe, design-intended levels.

• Provides precise resistance to reduce voltage/current in the designated dryer circuit
• Supports proper operation of the timer, control board, or end-of-cycle signal (varies by model)
• Failure may present as a timer that won't advance, an inoperative signal/buzzer, or irregular cycle behavior
• Replace if visibly burned/damaged or if testing shows an open or shorted condition

• Disconnect power to the appliance before servicing
• Access the console/wiring harness and note original wire routing
• Make secure, insulated connections and route the resistor/leads exactly as original to avoid heat or chafing
• After installation, run a test cycle to ensure proper operation of the affected function

This part has been discontinued by the manufacturer and is no longer available.

Color: Chrome. Measures about 2 inches in diameter.

Dryer lint screen filters debris during drying cycles. Replace when torn, damaged, or clogged beyond cleaning. Verify fit with your model number.

This replacement screen fits into the appliance's filtration path. It captures debris to protect internal components and helps restore proper airflow or water flow when the original screen is torn, warped, clogged, or missing.

• Filters debris to prevent it from entering sensitive components such as pumps, blowers, or valves
• Helps maintain proper airflow or water circulation for consistent performance
• Common failure signs: torn mesh, cracked or warped frame, debris bypassing the screen
• Can contribute to longer cycles, reduced performance, or recurring clogs when damaged or missing

• Disconnect power to the appliance; turn off water supply if applicable
• Access the screen location per your model's instructions; remove the old screen and clean the housing
• Seat the new screen fully, ensuring correct orientation and that any tabs/locks engage
• Reassemble and test for proper operation; check for leaks or airflow restrictions

Push-in.
