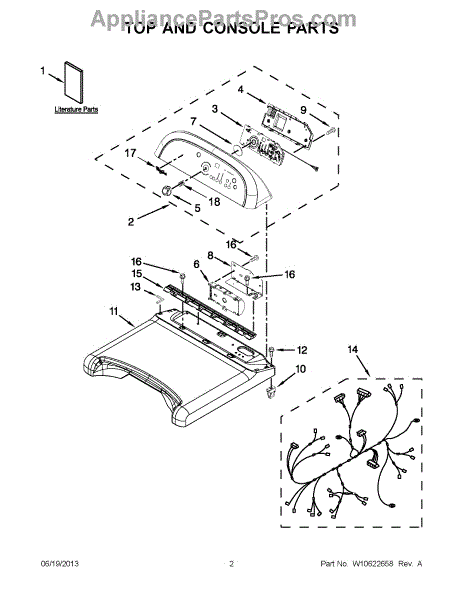

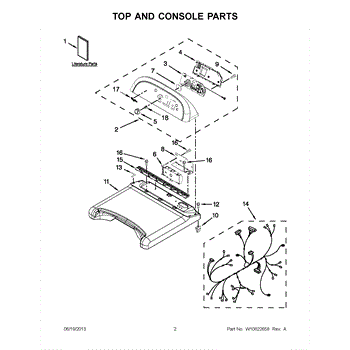

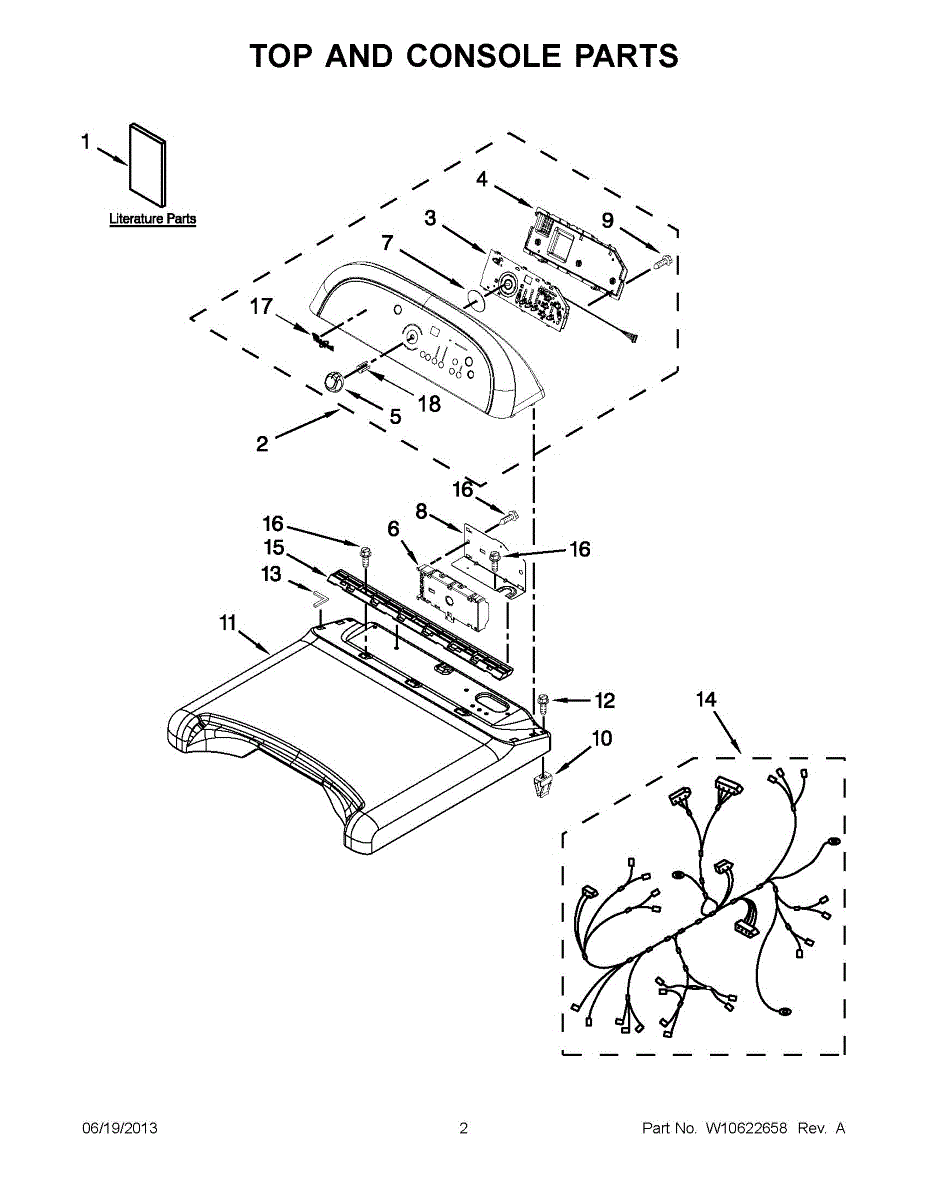

Parts for Whirlpool WED8100BW0: 01 - Top And Console Parts

This electronic control board is the appliance's main control module, managing user inputs and cycle functions so your appliance operates reliably. Replaces a failed control to restore normal operation of the console and programmed cycles. What it does:

• Interprets touchpad/selector inputs and runs the appliance's programmed cycles
• Controls display, timers, and cycle sequencing for proper operation
• Manages power to subsystems (motors, valves, heaters) as directed by settings
• Common symptom causes: unresponsive or blank display, control not accepting inputs, cycles not starting or stopping, or erroneous error codes

• One electronic control board

• Disconnect power to the appliance before beginning work to avoid shock
• Handle the board carefully and avoid static discharge; use anti-static precautions if available
• Access may require removing the console or back panel; keep fasteners organized during reassembly

This electronic control board coordinates the appliance's operations by processing inputs and sending power to critical components. Replacing a failed board can restore reliable performance when the unit won't start, stops mid-cycle, shows error codes, or behaves unpredictably.

• Directs cycle timing and power to motors, valves, heaters, and other loads
• Interprets user interface commands and sensor feedback to run selected programs
• Manages safety checks and built-in diagnostics
• Failure symptoms include: won't start/respond, cycle won't advance, stops mid-cycle, error codes, or intermittent/erratic operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions and handle the board by the edges
• Transfer any brackets, covers, or jumpers from the original board if required
• Label or photograph wiring, then move one connector at a time to the matching terminals

Screw for control panel.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

This name plate is the decorative centennial badge that restores the appliance's exterior appearance and branding. It replaces a missing, damaged, or faded badge to keep the unit looking factory-finished. What it does

• Restores the appliance's exterior badge for a like-new appearance
• Replaces badges that are cracked, scratched, peeling, or discolored
• Helps identify the appliance style when the original emblem is missing
• Cosmetic part only — does not affect appliance operation

• One name plate

• For best results, clean the mounting area and remove dirt or wax before installation
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• If access behind trim is required, unplug the appliance or disconnect power before removing panels
• Follow OEM instructions for removal and reinstallation to avoid damaging clips or surrounding trim
