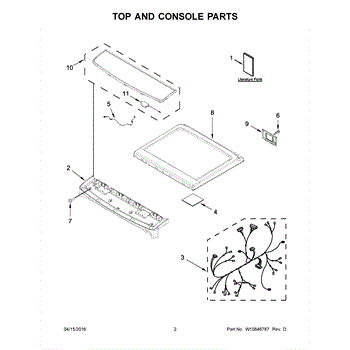

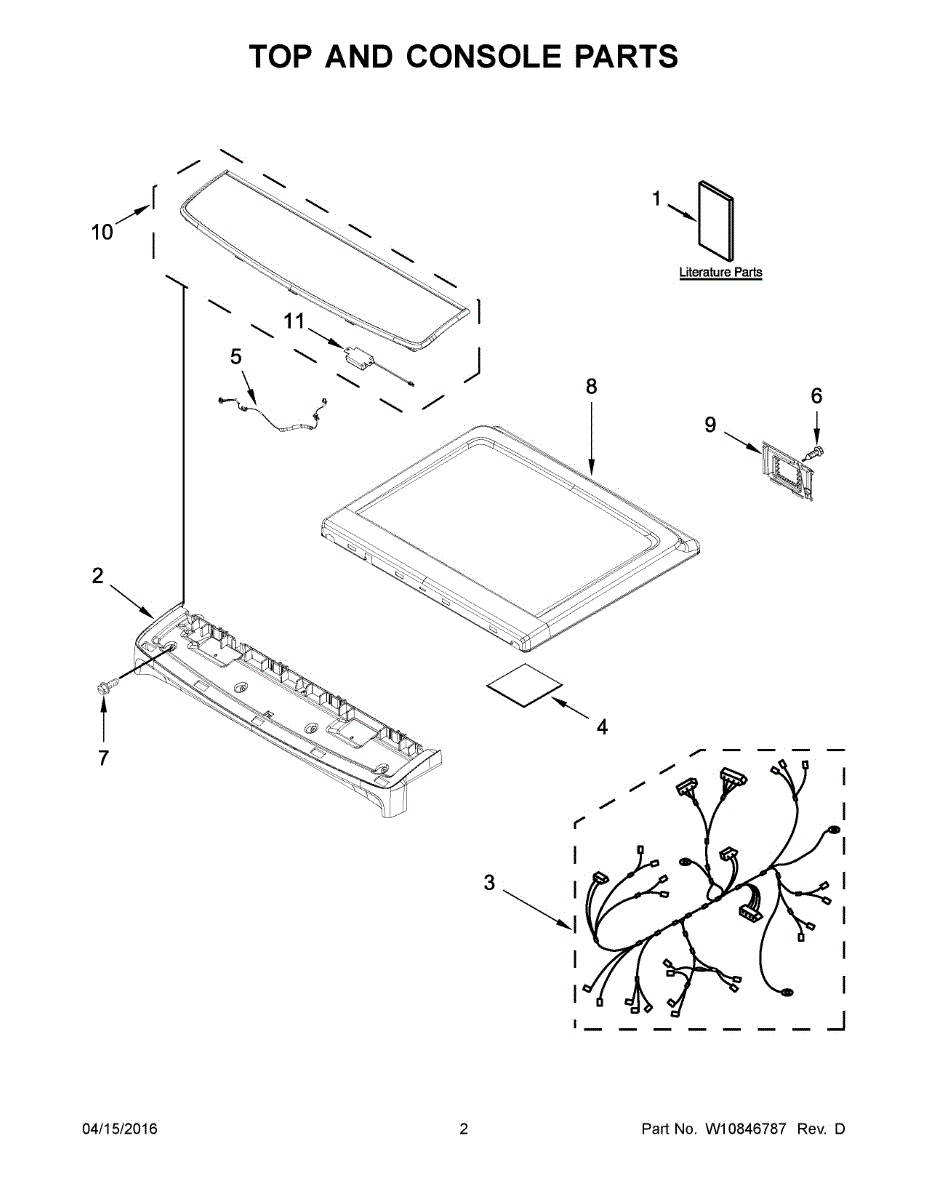

Parts for Whirlpool WED9500EW0: 02 - Top And Console Parts

This wire harness connects control and power circuits, restoring reliable electrical routing and device operation. It replaces a worn or damaged cable assembly to help eliminate intermittent power, non-responsive controls, or component failures. What it does:

• Routes power and signal connections between control boards, switches, and components
• Re-establishes secure plug-and-socket connections to prevent intermittent operation
• Helps resolve symptoms like no power to parts, erratic controls, or appliances that won't complete cycles
• Maintains correct wire grouping and strain relief to protect circuits from chafing

• Disconnect power before beginning work; follow OEM safety procedures
• Inspect connectors and mating sockets for damage; replace if corroded or broken
• Route harness to avoid sharp edges and heat sources; use existing clips and fasteners

10 - 16 x 1/2

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

Exposed wiring at the back of your dryer? This terminal block cover shields electrical connections from accidental contact and debris. Simple snap-on install.

This is a small speaker used in a microwave to produce audible alerts and tones, such as the beep that sounds when cooking is complete or buttons are pressed. If your microwave no longer beeps, produces distorted sounds, or has no audio feedback at all, this speaker likely needs replacement.
