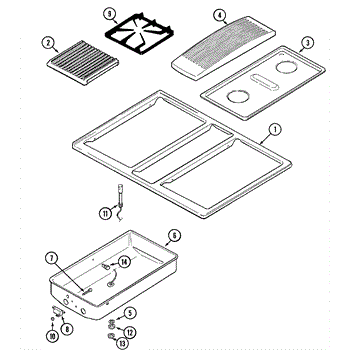

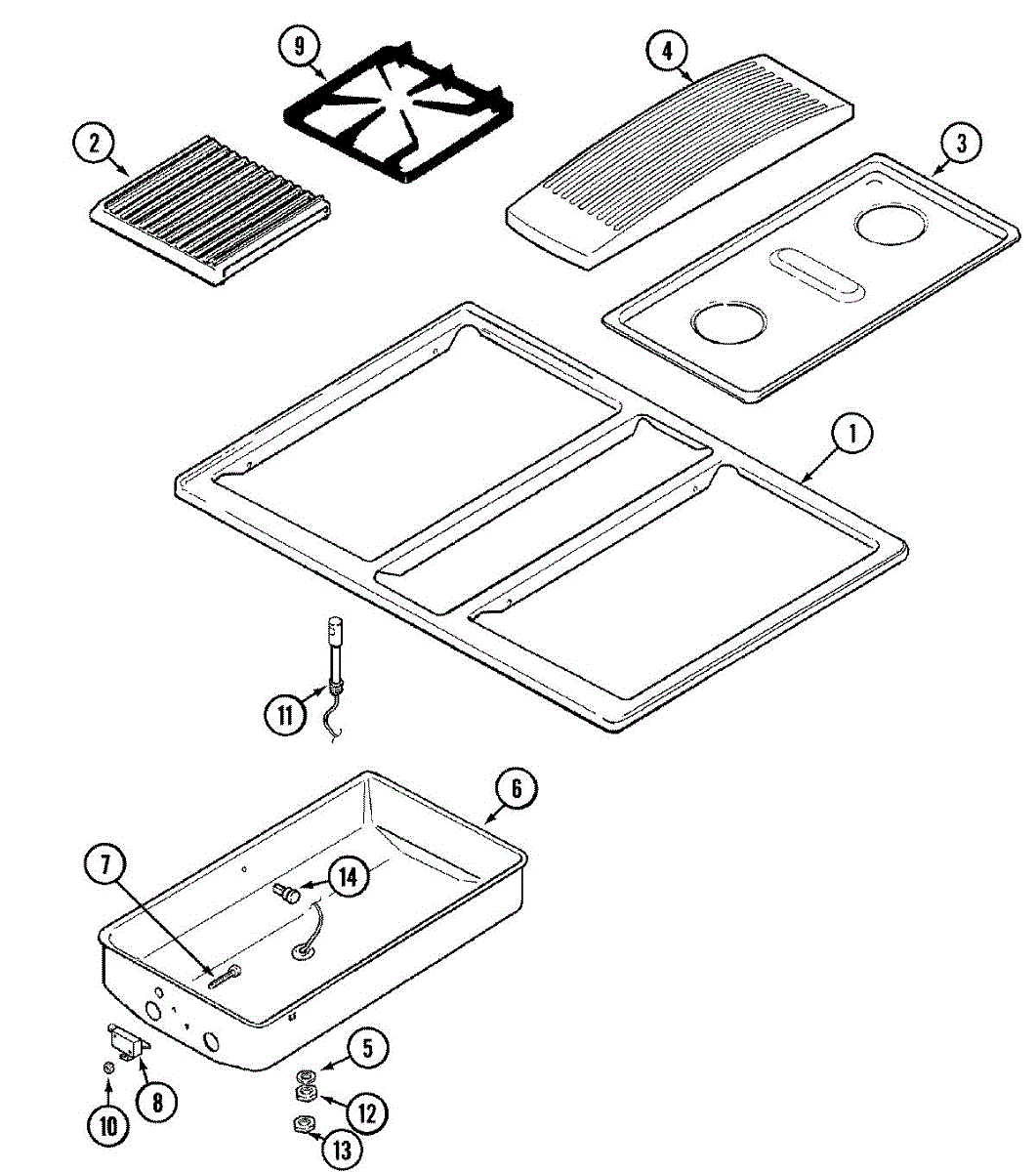

Parts for Jenn-Air SVD48600PC: 08 - Top Assembly Parts

Color: Black.

Color: black. It measures about 11-1/2 inches wide by 20 inches deep.

This control switch is the user-facing rotary selector that lets the appliance select cycles and settings. It restores clear, tactile control so the unit responds correctly when you turn the knob. What it does:

• Selects operating cycles and settings when the knob is turned
• Routes electrical signals from the control panel to the selected function
• Commonly replaced when settings do not change or the control feels loose/slips
• Resolves intermittent or unresponsive cycle selection and erratic behavior

• Disconnect power before attempting any repair to avoid electrical shock
• Accessible from the control panel; remove trim or console as needed per your model's service instructions
• Test function after reassembly; do not force the selector or use excessive torque

Color: Black.

Note: Kit of 2 black grates.

Spark electrode with a 29 inch female terminal.

A small lock-style nut that secures a threaded shaft or fastener to prevent loosening from vibration and normal use. Restores a firm connection so the appliance parts stay aligned and operate quietly and reliably. What it does:

• Locks a threaded connection in place to prevent backing off from vibration
• Keeps rotating or mounted components secured to reduce wobble or movement
• Helps stop noises caused by loose fasteners or shifting parts
• Restores proper fit where a worn or missing nut allowed play

• Disconnect power (and water if applicable) before starting any repair
• Use the correct size wrench/socket and hold mating hardware to avoid twisting other components
• Inspect threads for damage; replace mating fasteners if stripped
• Tighten securely to OEM guidance; avoid over-tightening which can damage threads
