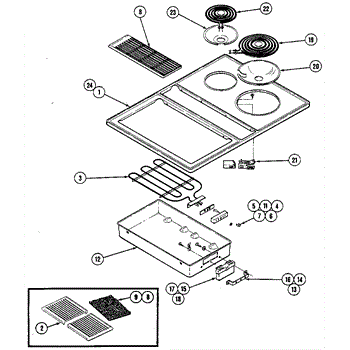

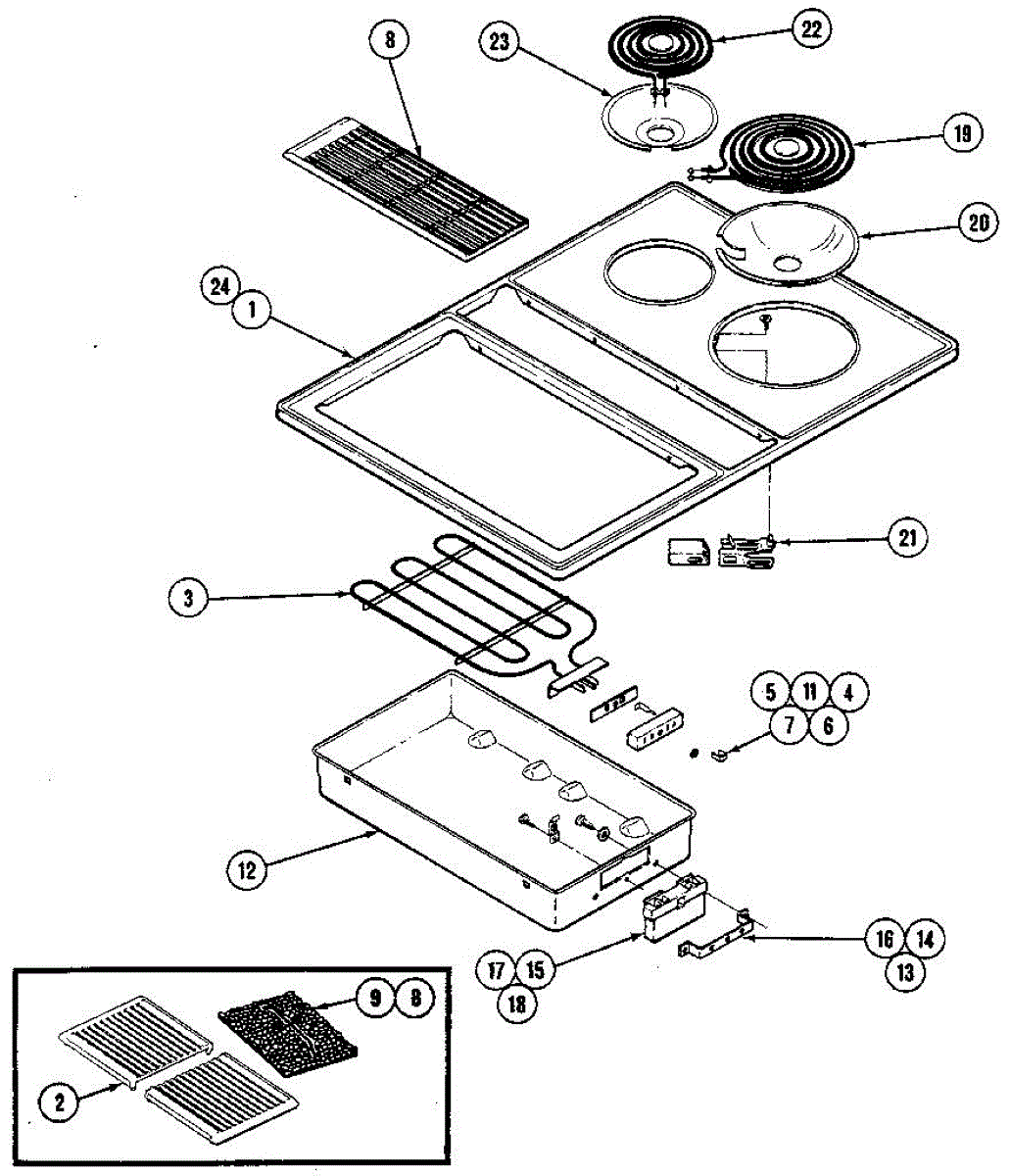

Parts for Kenmore 223.13 / 1988 (22313 / 1988, 223 13 / 1988): Top Assembly Parts

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This speed nut is a stamped metal retaining clip designed to hold screws or fasteners securely to appliance panels and trim. It provides a simple, vibration-resistant connection that keeps covers and components in place. What it does:

• Secures screws to thin sheet metal or panel edges where a threaded hole isn't available
• Provides a firm, vibration-resistant attachment for panels, trim, or small components
• Helps prevent screws from loosening or backing out during normal use
• Commonly used where a captive nut or clip is required for assembly or repair

• One speed nut / retaining clip

• Disconnect power and unplug the appliance before starting any repair
• Position the clip over the panel edge or hole so the screw can engage the clip's thread; press or tap gently until seated
• Use the correct screw size and avoid over-tightening to prevent deforming the clip or striping threads
• Wear gloves and eye protection when handling sharp sheet metal edges

Includes one rock plate. 2 used per unit. For the support order 700819.

This rock plate support is used on many of the Jenn-air grill cartridge rock plates.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This clip secures appliance panels or small components to maintain alignment and reduce vibration, restoring the original fit where a worn or broken fastener allows movement or rattling. Simple, direct-fit replacement when the original clip fails. What it does:

• Holds trim, panels, or small components in position to prevent rattling and shifting.
• Replaces broken or missing fasteners that allow loose or misaligned parts.
• Helps keep wiring harnesses or insulation routed and secured in assemblies.
• Small, inexpensive part commonly used wherever a retaining clip is specified.

• Always disconnect power (unplug or shut off circuit) before servicing the appliance.
• Remove panels or trim per the manufacturer service sheet to access the clip; note the clip orientation before removal.
• Use appropriate tools (needle-nose pliers, trim tool) and avoid over-bending the clip or adjacent parts.
• Replace them with the correct OEM-specified clips for reliable fit.

Screw: 8-16 x 3/8 inch.

2100W. Size: 8 inch. Location: Right front.

The 8 inch Drip Pan is an OEM replacement part for Whirlpool ranges and cooktops. It is designed to catch spills, boilovers, and other messes that may occur during cooking, helping to keep the cooktop surface clean and preventing potential damage.

Symptoms of a need to replace the drip pan include:

• Excessive wear, warping, or damage to the pan itself
• Difficulty fitting or securing the pan properly under the burners
• Staining or discoloration that cannot be removed through regular cleaning

Causes of a faulty drip pan can include exposure to excessive heat, spills of acidic or abrasive substances, general wear and tear over time, or improper cleaning methods.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges and cooktops.

The Terminal Block Kit is an OEM part for Whirlpool cooktops. It is a crucial component that provides a secure connection point for electrical wires and cables within the appliance's control system.

Symptoms of a faulty terminal block kit:

• Intermittent power supply or electrical issues
• Burnt or melted wires or connectors
• Appliance not receiving or responding to electrical signals correctly
• Visible damage or corrosion on the terminal block

Causes of a bad terminal block kit include excessive heat exposure, loose connections, moisture or water damage, or simply wear and tear over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element is an OEM part for Whirlpool ranges. This part provides heat to the cooking surface, allowing for the preparation of food.

Common causes of a bad surface element include electrical faults, physical damage from heavy cookware, or degradation from constant heating and cooling cycles.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage such as burns or breaks in the coil
• Sparking or unusual noises when the element is turned on

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The 6 inch Drip Pan is an OEM replacement part for Whirlpool ranges and ovens. It is designed to catch spills, drips, and overflows that may occur during cooking, helping to keep the oven cavity clean and preventing potential messes.

Symptoms of a need to replace the drip pan:

• Excessive buildup of baked-on or burnt food residue
• Warping or deformation of the pan due to high temperatures
• Rust or corrosion compromising the integrity of the pan

Causes of a faulty or damaged drip pan can include general wear and tear from regular use, exposure to acidic or corrosive spills, or physical impact or mishandling during cleaning or maintenance.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
