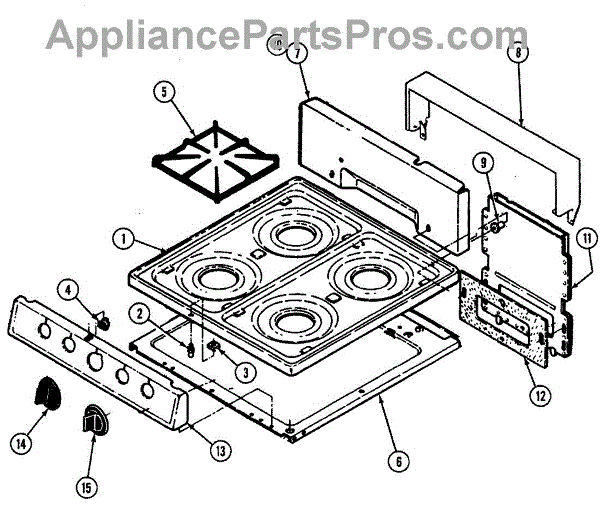

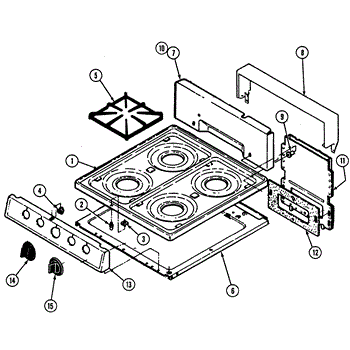

Parts for Magic Chef 1100PRW-K: 04 - Top Assembly Parts

This burner grate replaces a damaged or worn cooktop support to restore stable cookware placement and even heating on your range. It provides a durable cooking surface designed for safe, reliable use. What it does:

• Supports pots and pans over the burner for safe, balanced cooking
• Restores proper burner-to-pan contact to help improve heat transfer
• Replaces cracked, warped, or chipped grates that cause instability
• Compatible with standard sealed gas burner designs

• One replacement burner grate

• Install by lifting out the old grate and seating the new grate into the cooktop openings
• Ensure the cooktop is cool and gas supply is turned off before handling
• Clean surrounding cooktop surfaces of debris before installing to ensure a flush fit

This 10-24 threaded screw secures appliance components that use a #10 machine screw. It provides reliable fastening for panels, brackets, and assemblies so parts stay aligned and stable during normal use and service. What it does:

• Fastens panels, brackets, or assemblies that accept a 10-24 machine screw
• Maintains alignment and structural connection under normal operating loads
• Replaces worn, stripped, or missing screws to restore secure mounting
• Works with sheet-metal and component mating nuts or threaded inserts commonly used in appliances

• One 10-24 threaded screw

• Power tools can be used; avoid overtightening to prevent stripped threads or damaged components
• Disconnect power and follow all safety steps for your appliance before servicing
• Ensure proper engagement and torque to avoid damage

This factory fastener secures panels, trim, or brackets on your appliance. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned for proper operation and a clean, finished appearance.

• Fastens exterior panels, trim pieces, or internal brackets to the appliance chassis
• Replaces lost, damaged, or stripped hardware
• Helps prevent vibration, rattling, and gaps between parts
• Common signs you need this screw: missing hardware, loose or misaligned panel/trim, stripped head or threads

• Disconnect power before servicing; also shut off the gas supply
• Use the correct driver; start the screw by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping or cracking adjacent parts
• Repair or replace the mounting point before installing
