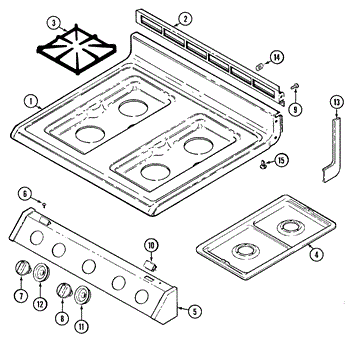

Parts for Magic Chef 3187VTV: 05 - Top Assembly Parts

White

Includes one double drip pan. Color: chrome. Measures about 9 inches wide by 18 inches deep.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This white valve knob replaces a worn, cracked or missing control knob so you can safely and easily adjust burner or oven settings. It restores a secure grip and precise control for temperature or flame adjustments. What it does:

• Replaces a damaged or stripped control knob used to turn gas or electric valve controls
• Provides a positive grip so settings can be changed smoothly and accurately
• Helps stop slipping or spinning that prevents proper temperature or flame adjustment
• Matches original fit to engage the control shaft properly when installed

• Turn off power and gas supply before removing the old knob
• Pull off the old knob straight from the control shaft; align splines and push new knob fully onto the shaft
• Do not force or hammer the knob; ensure it seats squarely to avoid damage
• Test control operation after installation and restore power/gas only when connection is secure

This is a genuine replacement screw used to secure panels, brackets and components on compatible Whirlpool appliances. It restores proper fit and reduces rattling or loose parts for safer, quieter operation. What it does:

• Fastens and secures panels, trim, brackets or small components
• Stops rattling or vibration caused by missing or loose screws
• Restores proper alignment of removable panels and assemblies
• Provides the correct threaded fastening for a reliable repair

• Disconnect power (and water if applicable) before servicing the appliance
• Replace like-for-like: match screw length, thread and head type to the original
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid overtightening, which can strip threads or crack plastic

This bezel knob is the plastic trim piece that fits around a control shaft, restoring a finished look and providing a stable grip for turning settings. It helps protect the control shaft from dirt and wear while making the knob easier to use. What it does:

• Covers and protects the control shaft, preventing debris buildup and reducing wear
• Provides a finished, secure surface for the control knob to sit against
• Restores grip and tactile feedback for easier setting changes
• Common symptom fix: replaces cracked, loose, faded, or missing control trim pieces

• One bezel knob

• Remove power to the appliance before servicing controls to avoid shock or injury
• Typically snaps or slides onto the control shaft; may require pulling the knob straight off first
• Inspect mating surfaces for damage and ensure proper alignment when installing

This main top glide supports the dryer drum and reduces friction for smooth rotation, helping prevent drum wear and noisy operation. It replaces a worn glide to restore proper drum tracking and quieter drying cycles. What it does:

• Provides a low-friction bearing surface for the dryer drum to ride on
• Helps maintain correct drum alignment and smooth rotation
• Reduces squeaks, scraping noises, and uneven drum wear
• Protects the drum and cabinet contact points from damage

• One main top glide

• Use basic hand tools; access requires opening the dryer cabinet per your model's service manual
• Inspect matching bottom glides/rollers and replace as needed for best results
• Disconnect power (and gas supply if applicable) before beginning repairs
