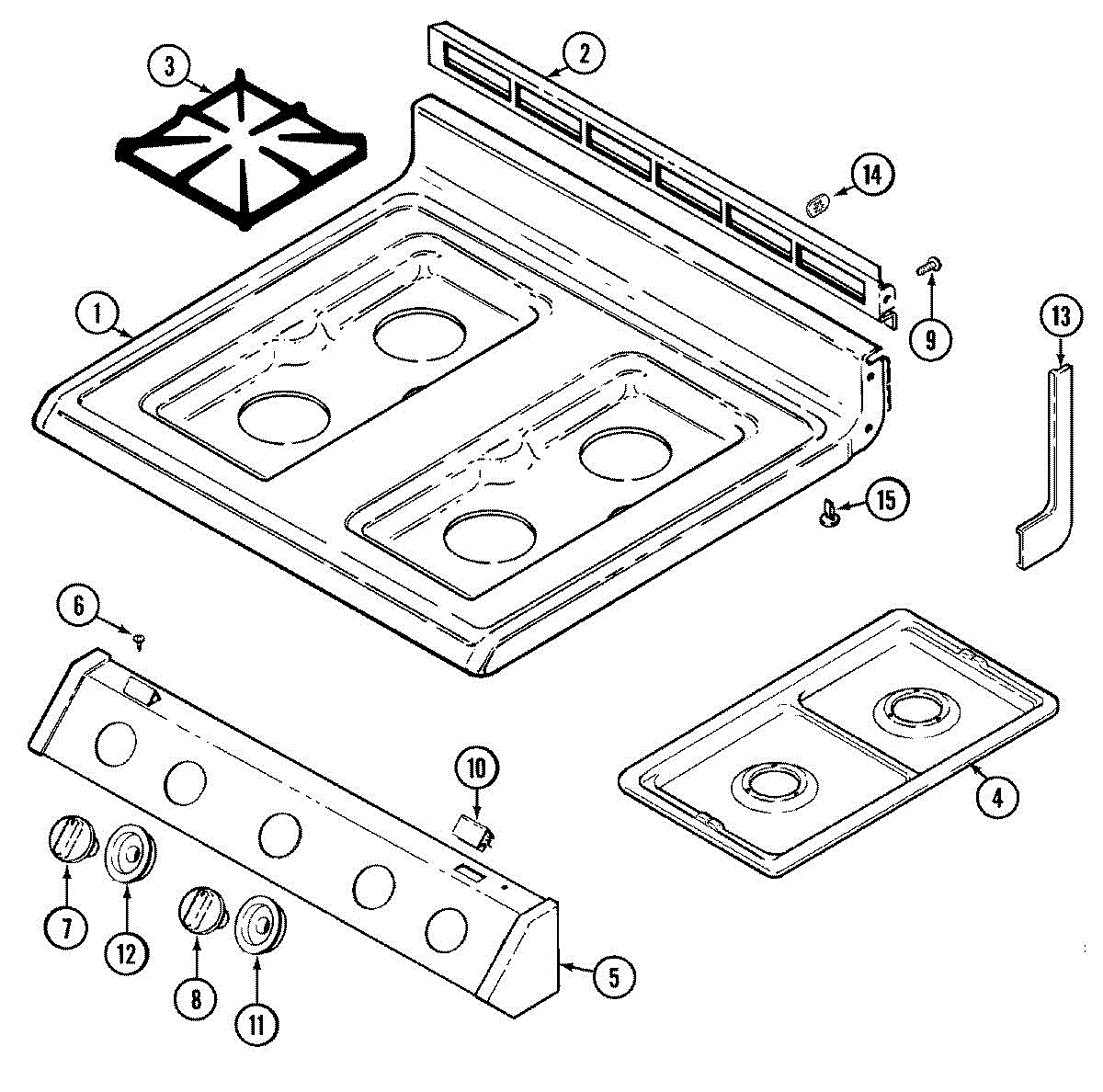

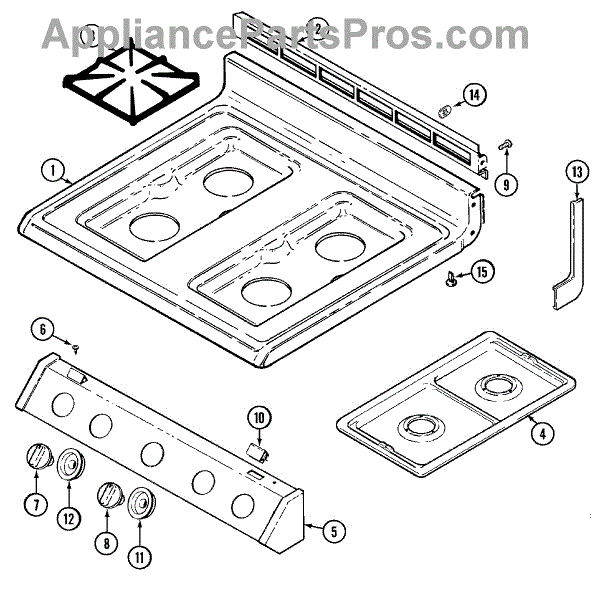

Parts for Magic Chef 3187XTW: 05 - Top Assembly Parts

White

This burner grate replaces a damaged or worn cooktop support to restore stable cookware placement and even heating on your range. It provides a durable cooking surface designed for safe, reliable use. What it does:

• Supports pots and pans over the burner for safe, balanced cooking
• Restores proper burner-to-pan contact to help improve heat transfer
• Replaces cracked, warped, or chipped grates that cause instability
• Compatible with standard sealed gas burner designs

• One replacement burner grate

• Install by lifting out the old grate and seating the new grate into the cooktop openings
• Ensure the cooktop is cool and gas supply is turned off before handling
• Clean surrounding cooktop surfaces of debris before installing to ensure a flush fit

Includes one double drip pan. Color: chrome. Measures about 9 inches wide by 18 inches deep.

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Black control knob for gas range burner valves. Replaces cracked, broken, or missing knobs. Installs on the control panel. Sold individually.

Replacement mounting screw for gas ranges. Secures panels, brackets, and internal components. Needed when original screws are stripped, missing, or lost.

Replace the decorative bezel ring around your range control knob. Installs behind the knob to cover the control panel opening. Order now if cracked or missing.

Replacement push nut fastener for ranges. Secures components in place with a spring clip design. Order a new one if yours is missing or damaged.

This main top glide supports the dryer drum and reduces friction for smooth rotation, helping prevent drum wear and noisy operation. It replaces a worn glide to restore proper drum tracking and quieter drying cycles. What it does:

• Provides a low-friction bearing surface for the dryer drum to ride on
• Helps maintain correct drum alignment and smooth rotation
• Reduces squeaks, scraping noises, and uneven drum wear
• Protects the drum and cabinet contact points from damage

• One main top glide

• Use basic hand tools; access requires opening the dryer cabinet per your model's service manual
• Inspect matching bottom glides/rollers and replace as needed for best results
• Disconnect power (and gas supply if applicable) before beginning repairs
