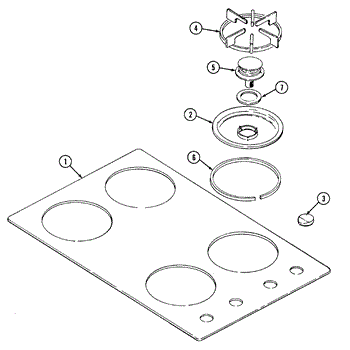

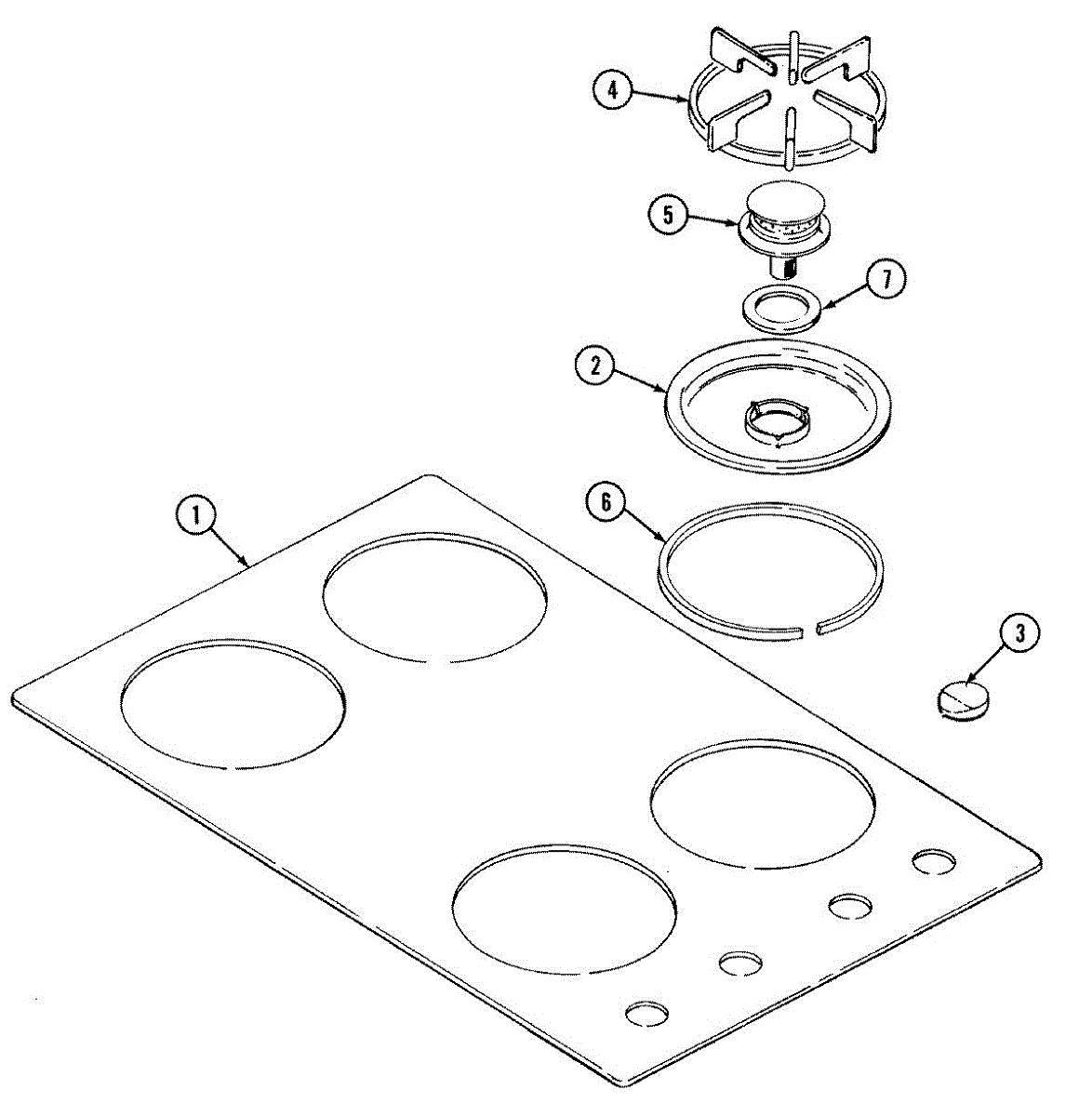

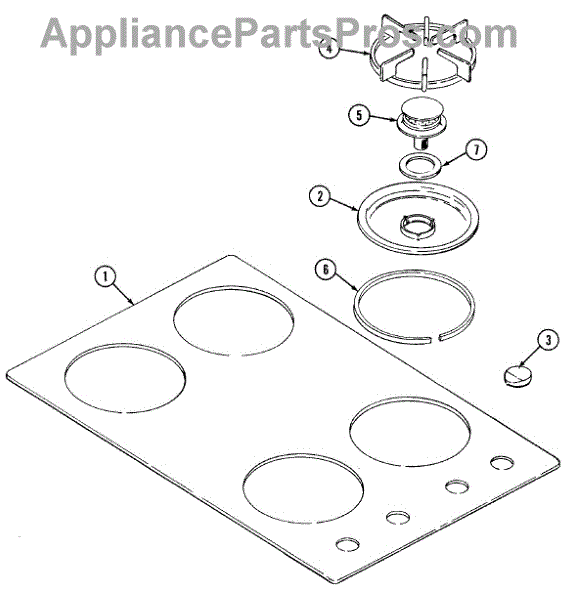

Parts for Magic Chef 8261RB: 02 - Top Assembly Parts

This drip bowl fits under a gas range burner to catch spills and drips, helping keep the cooktop surface cleaner and protecting internal components from food and grease. Durable replacement for worn or damaged bowls. What it does:

• Collects spills, crumbs and grease that fall around a gas burner to prevent buildup.
• Helps protect burner assembly and ignitor area from food and liquid damage.
• Restores stable support and alignment for burner components if the original bowl is bent or warped.
• Can reduce cleaning time by containing messes to an easy-to-remove part.

• One drip bowl for a gas range burner.

• Ensure the range is turned off and completely cool before removing or installing the drip bowl.
• Remove grates and burner caps, lift out the old bowl, and set the new bowl into place; no special tools typically required.
• Clean surrounding area before installation to ensure a proper fit and to avoid trapping debris.

This replacement top burner knob restores smooth, reliable control of your cooktop or range surface burner. Use it to turn the burner on/off and adjust heat when the original knob is cracked, stripped, or missing.

• Mounts on the burner valve or switch stem to control flame/heat level
• Replaces knobs that are broken, loose, or no longer engage the stem
• Helps resolve issues like spinning freely, falling off, or hard-to-set heat
• Restores precise burner control and a clean, finished look

• Allow the appliance to cool; disconnect power and shut off gas before servicing
• Pull the old knob straight off the stem; do not pry on the valve stem
• Align the new knob with the stem and press straight on until fully seated
• The knob markings match the correct burner position before use

Color: Black.

Screw (bur) is a fastener that secures panels, brackets and small assemblies on select Whirlpool appliances. Replacing a missing or damaged screw restores proper fastening and helps reduce vibration, rattling and misalignment. What it does:

• Fastens panels, mounting brackets and small internal or external components to the appliance frame.
• Replacing a stripped or missing screw prevents loose parts and restores a secure fit.
• Symptoms of a failing screw include rattling, vibration, panels or trim that do not sit flush, or components that move during operation.
• Commonly used where a short machine screw or trim fastener is required for assembly.

• Disconnect power before beginning any service.
• Use the correct screwdriver or driver bit and install straight to avoid stripping the head or threads.
• Do not overtighten — snug until secure to prevent damage to threads or parts.
• Keep removed fasteners organized and replace any damaged screws with the exact OEM fastener.

The Sealed Gas Burner Head is an OEM part for Whirlpool gas ranges. It directs the gas flow to the burner, ensuring an even flame for cooking. This component is crucial for efficient heat distribution and precise cooking control.

Causes of a bad sealed gas burner head can include clogging from food debris or grease, corrosion due to exposure to moisture, or physical damage from impact or excessive heat. Over time, these factors can affect the burner's performance, leading to uneven cooking or failure to ignite.

Symptoms of a bad sealed gas burner head include:

• Uneven flame or no flame at all
• Difficulty in igniting the burner
• Yellow or irregularly shaped flames
• Burner not heating evenly or adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued and is no longer available. This gasket is no longer needed.
