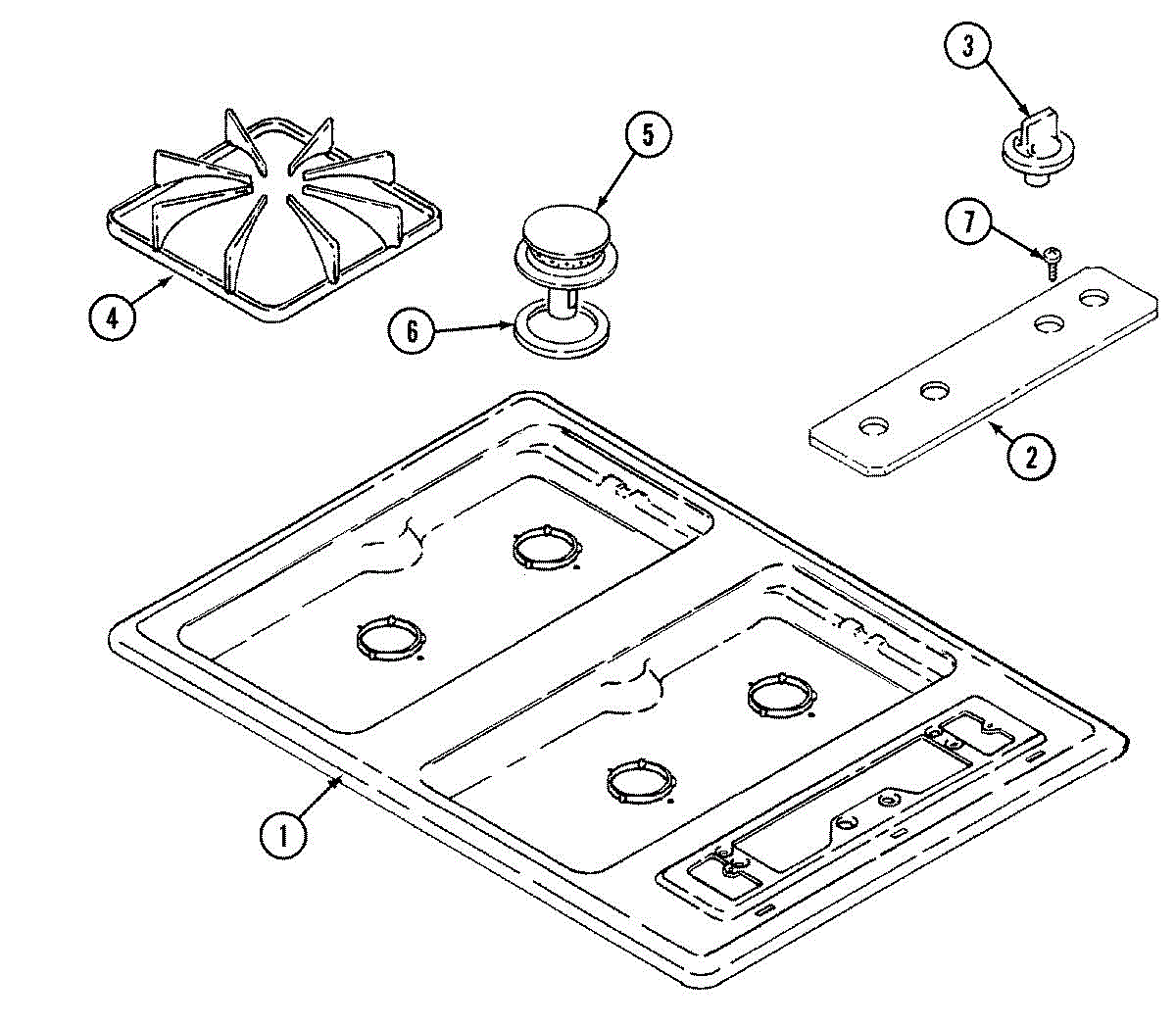

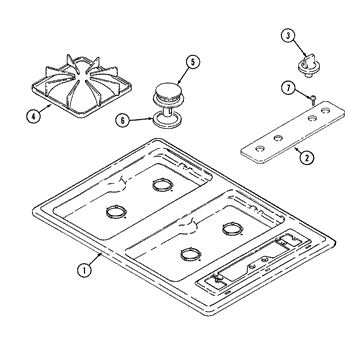

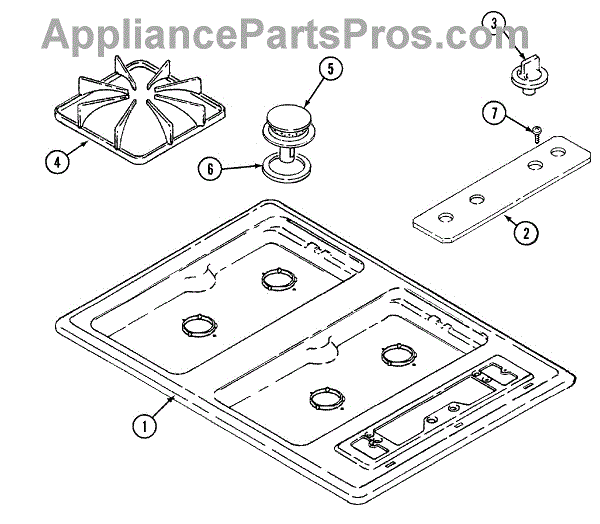

Parts for Magic Chef 8241RW: 02 - Top Assembly (Ra, Rb, Rs, Rv, Rw) Parts

This replacement top burner knob restores smooth, reliable control of your cooktop or range surface burner. Use it to turn the burner on/off and adjust heat when the original knob is cracked, stripped, or missing.

• Mounts on the burner valve or switch stem to control flame/heat level
• Replaces knobs that are broken, loose, or no longer engage the stem
• Helps resolve issues like spinning freely, falling off, or hard-to-set heat
• Restores precise burner control and a clean, finished look

• Allow the appliance to cool; disconnect power and shut off gas before servicing
• Pull the old knob straight off the stem; do not pry on the valve stem
• Align the new knob with the stem and press straight on until fully seated
• The knob markings match the correct burner position before use

This burner grate replaces a damaged or worn cooktop support to restore stable cookware placement and even heating on your range. It provides a durable cooking surface designed for safe, reliable use. What it does:

• Supports pots and pans over the burner for safe, balanced cooking
• Restores proper burner-to-pan contact to help improve heat transfer
• Replaces cracked, warped, or chipped grates that cause instability
• Compatible with standard sealed gas burner designs

• One replacement burner grate

• Install by lifting out the old grate and seating the new grate into the cooktop openings
• Ensure the cooktop is cool and gas supply is turned off before handling
• Clean surrounding cooktop surfaces of debris before installing to ensure a flush fit

Replace a damaged or unsteady cooking surface with this burner grate. It supports pots and pans at the proper height above the burner, restoring stable, level support on your gas cooktop or range when the original grate is worn or broken.

• Provides sturdy support for cookware over the surface burner
• Maintains the correct clearance between burner and pan for consistent heating
• Replaces grates that are cracked, bent/warped, or have worn feet causing wobble
• Helps prevent rocking or instability of pots and pans during cooking

• Allow the cooktop/range and grate to cool completely before handling
• Lift off the old grate; clean the surface; align and place the new grate over the correct burner
• Ensure the grate sits flat and stable—do not force into place
• Refer to your owner's manual for care and cleaning recommendations

The Sealed Gas Burner Head is an OEM part for Whirlpool gas ranges. It directs the gas flow to the burner, ensuring an even flame for cooking. This component is crucial for efficient heat distribution and precise cooking control.

Causes of a bad sealed gas burner head can include clogging from food debris or grease, corrosion due to exposure to moisture, or physical damage from impact or excessive heat. Over time, these factors can affect the burner's performance, leading to uneven cooking or failure to ignite.

Symptoms of a bad sealed gas burner head include:

• Uneven flame or no flame at all
• Difficulty in igniting the burner
• Yellow or irregularly shaped flames
• Burner not heating evenly or adequately

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued and is no longer available. This gasket is no longer needed.

This is a replacement 6-32 x 3/8" screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening for loose or missing fasteners so parts stay aligned and stable. What it does:

• Secures trim, panels, brackets or small components to the appliance frame
• Stops rattling or movement caused by a missing or stripped screw
• Helps maintain proper alignment of control panels and access panels
• Provides the correct thread engagement for safe, stable fastening

• One replacement screw (6-32 x 3/8")

• Disconnect power before accessing internal components
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to threads or components
• Keep removed hardware organized and compare sizes before installation
