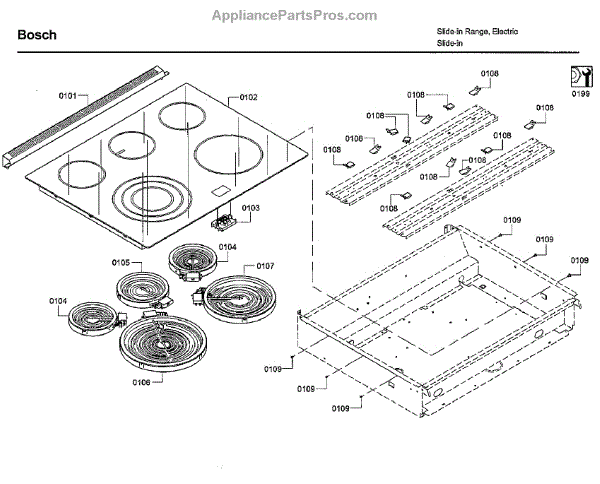

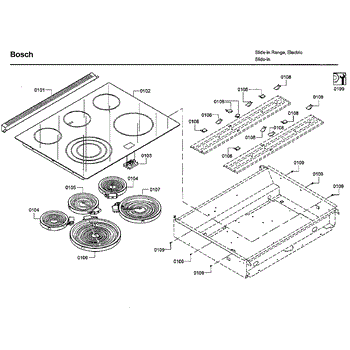

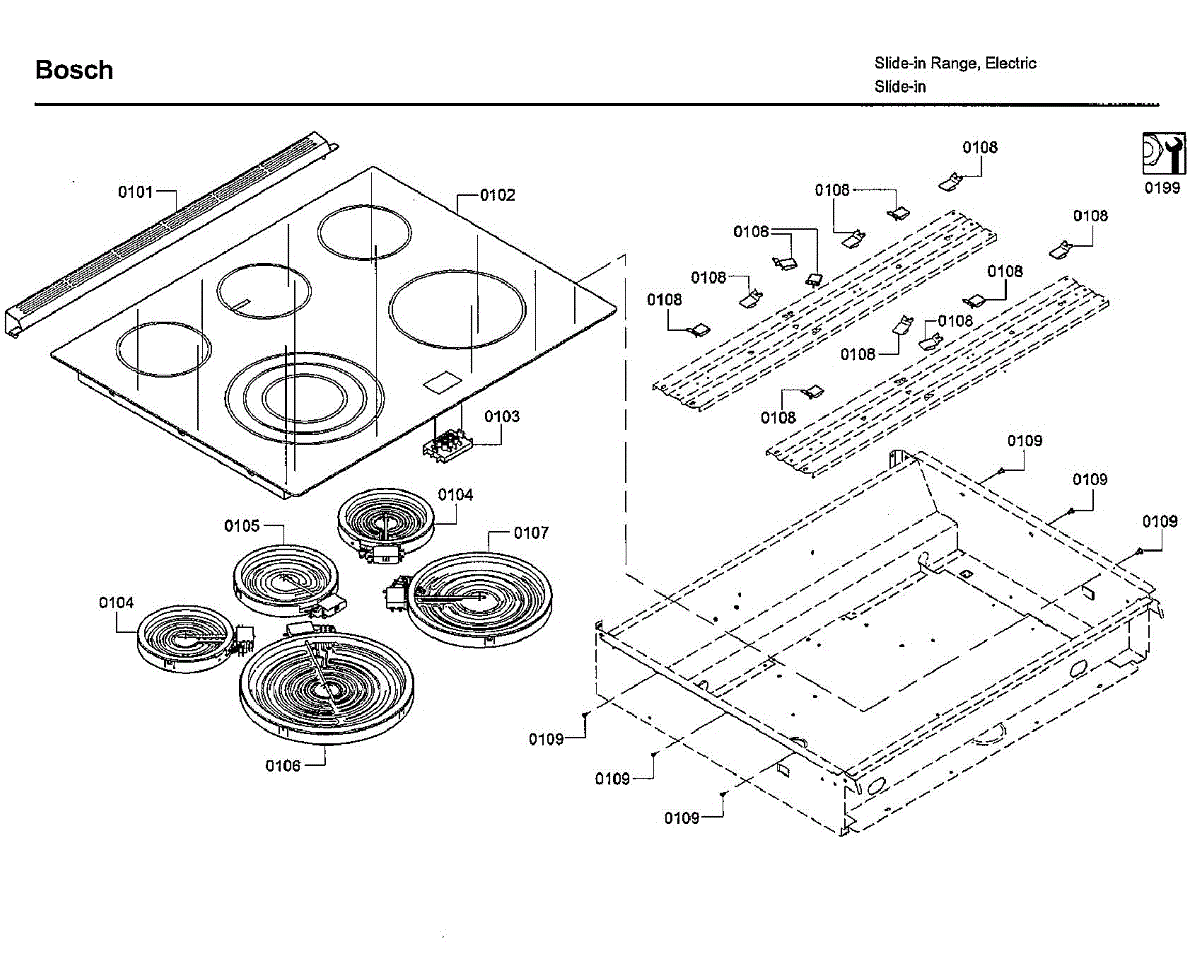

Parts for Bosch HEIP054U/07: Top Assy Parts

This trim plate is a decorative exterior piece that restores the finished look of the appliance opening and covers gaps between the appliance and surrounding cabinetry. It helps maintain a clean, professional appearance after repair or replacement. What it does:

• Covers the visible gap between the appliance and trim or cabinet for a finished look
• Protects underlying edges from spills and grime at the appliance opening
• Restores original styling after door, control panel, or installation changes
• Fits where a shallow decorative plate is required to conceal mounting edges

• Basic installation typically requires removing the appliance from its opening to access mounting points
• Use correct screws and alignment to prevent gaps or interference with door movement
• Disconnect power if working near electrical components and take care around sharp sheet-metal edges

This hob top is the glass cooktop surface that covers and protects the heating elements while providing a smooth cooking area. It restores a flat, heat-safe surface and keeps burners sealed from spills and debris. What it does:

• Replaces a cracked, chipped or heavily scratched cooktop surface to restore safe, usable cooking area
• Provides a smooth, flat surface for electric/induction heating elements to sit correctly
• Helps prevent spills and food debris from contacting internal components
• Maintains the finished appearance of the cooktop and aids in easy cleaning

• Disconnect power to the range before attempting any service
• Hob tops are heavy and fragile — handle with care and protect the glass from impacts
• Some installations may require removal of control knobs, trim, or burners; follow OEM instructions

This indicator is a replacement control-panel light that shows cycle status on compatible Bosch appliances. It restores clear visual feedback so you can see when the unit is running or finished without guessing. What it does:

• Illuminates to show appliance power or cycle status as designed by the OEM
• Provides a clear visual signal when a cycle starts, is in progress, or completes
• Helps diagnose panel/display issues when one or more indicators fail to light
• Matches OEM fit and function for the specified indicator location

• Disconnect power to the appliance before starting any repair to reduce shock risk
• Installation typically requires removing the control panel or console; keep track of fasteners
• Handle the indicator and wiring gently to avoid damaging the lens or connector

This heating element assembly provides the heating source for the appliance, restoring normal temperature output for drying/heating cycles. Replaces a worn or failed element to help recover proper operation and cycle performance. What it does

• Heats air or water as part of the appliance's main heating circuit.
• Restores normal cycle temperatures when the original element has failed.
• Can resolve symptoms such as no heat, extended cycle times, or temperature-related error codes.
• Works with the appliance's thermostat and safety cutouts to maintain safe operating temperature.

• Disconnect power (and gas supply, if applicable) before starting any repair.
• Handle with care to avoid damaging terminals, terminals insulation, or mounting brackets.
• Inspect surrounding wiring, connectors, and thermal cutouts; replace any damaged components.
• After installation, verify proper operation by running a test cycle and checking for correct heat and no unusual smells or noises.

This heating element heats and helps dry dishwasher loads by raising water and air temperature during wash and dry cycles. Replaces a failed tub heater to restore normal wash temps and drying performance. What it does:

• Warms wash water so detergent cleans effectively and food soils break down.
• Raises air temperature during the dry cycle to help evaporate moisture.
• Stops heating when defective, which can cause poor cleaning or no drying.
• Works with the dishwasher's control system to cycle heat on and off as needed.

• One heating element

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing the lower access panel; keep fasteners and seals secure during reassembly.
• Inspect wiring and terminals for damage; replace or tighten connectors as needed.

A single electrical replacement lead that restores a broken or damaged connection inside your appliance, allowing a circuit or component to regain reliable power and operation. What it does:

• Carries electrical current between components to complete appliance circuits
• Replaces frayed, cut, or burnt wiring that causes intermittent power or failure
• Helps stop arcing, sparks, or loose-connection symptoms when installed correctly
• Restores a specific circuit path so affected features or a component can function again

• Disconnect power to the appliance before inspecting or replacing wiring
• Match the wire routing, length, and terminal connections exactly to the original
• Use correct crimping or soldering and proper insulation to prevent shorts

This cable harness routes electrical signals between dishwasher components to restore proper control and power delivery. It replaces a damaged or broken wiring assembly so affected circuits can communicate and operate reliably. What it does:

• Connects control board, sensors, pumps and other internal components to carry power and signals
• Restores intermittent or lost power to specific assemblies caused by frayed or broken wires
• Helps eliminate error codes or failures tied to open or shorted harness connections
• Prevents arcing and poor connections that can cause unreliable operation

• One cable harness assembly as pictured

• Only install after disconnecting power to the appliance to avoid shock or damage
• Inspect mating connectors and pins for corrosion or damage before connecting
• Route harness away from sharp edges, moving parts and hot surfaces to avoid future wear

This single-use dishwasher cleaner removes limescale, grease and odor-causing residue from the interior and spray arms to help restore cleaning performance. It's designed for routine maintenance between deep-clean services. What it does:

• Dissolves limescale, hard-water buildup and mineral deposits that can reduce spray-arm flow and detergent action
• Breaks down grease and food film that cause lingering odors or cloudy glassware
• Helps clear residue from seals, filter housing and spray nozzles for more consistent wash results
• Safe for use in dishwasher tubs and internal components when used as directed

• One single-use bottle of dishwasher cleaning solution

• Follow the dishwasher maker's directions: typically empty dishwasher, place bottle in the rack or dispenser, run the specified cleaning cycle
• Use only as directed; do not mix with other chemicals or detergents
• Keep out of reach of children and pets; avoid contact with skin and eyes — rinse thoroughly if contacted
• Dispose of container per local regulations after use

This cable harness routes power and signals between the appliance's control and its electrical components, restoring proper connections for reliable operation. It replaces a damaged or worn wiring harness to help resolve electrical faults and intermittent power. What it does:

• Links control board, motor, sensors and other electrical components so signals and power flow correctly.
• Common symptom: appliance won't power on or displays intermittent operation.
• Common symptom: flickering lights, erratic cycles, or component failures tied to loose or broken wires.
• Helps prevent short circuits caused by frayed wiring when installed as a direct replacement.

• Disconnect power (unplug or shut off circuit breaker) before starting any repair.
• Handle connectors carefully; release locking tabs before pulling to avoid damage.
• Route and secure the harness following OEM clips and channels to prevent chafing or pinching.
