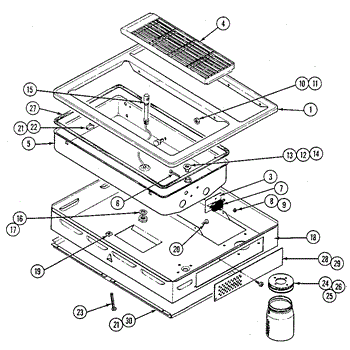

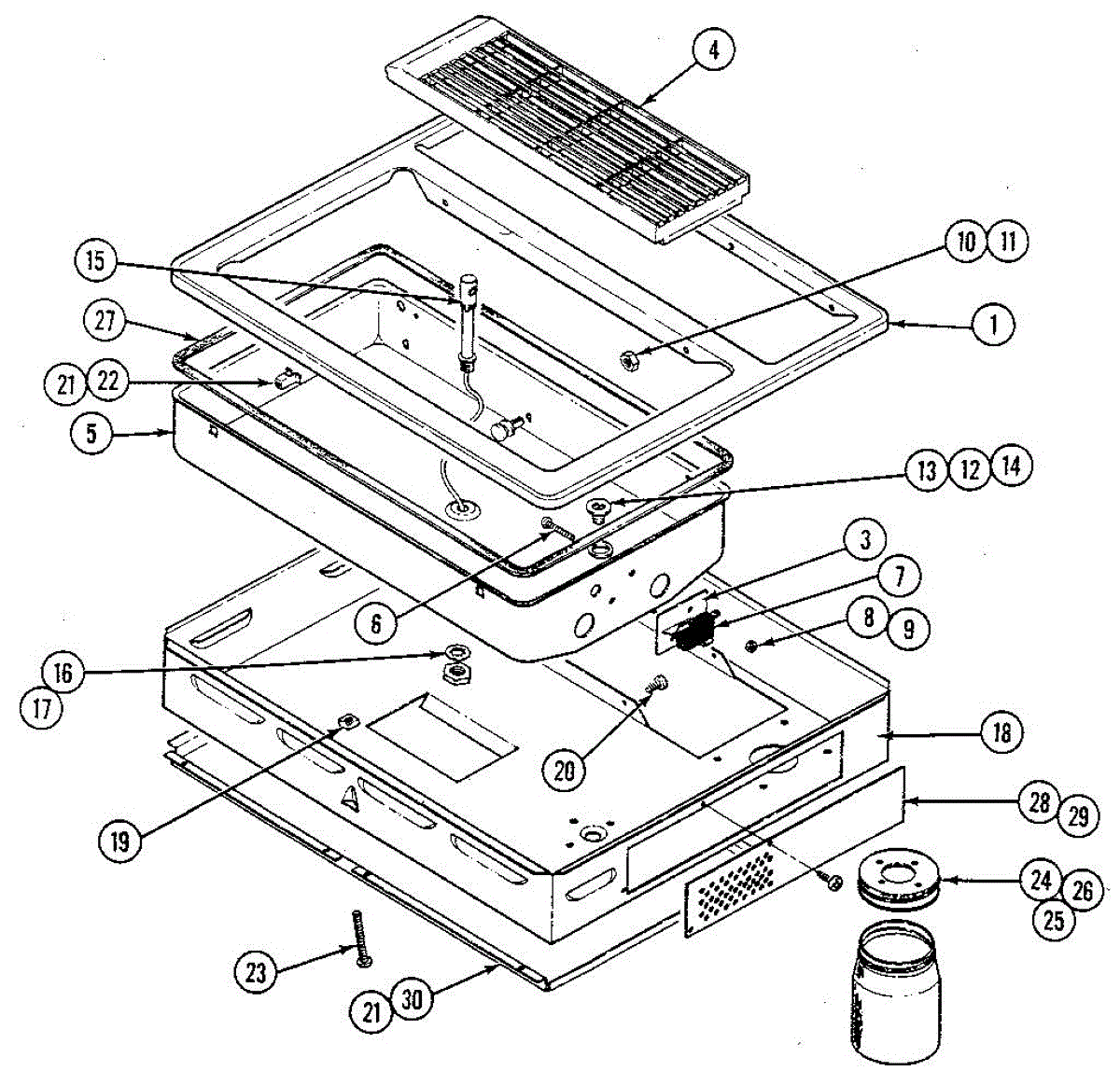

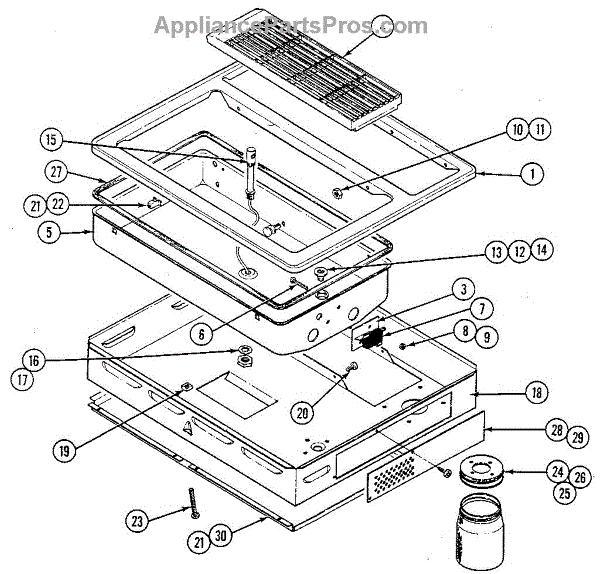

Parts for Kenmore 12301: Top / Burner Box Assembly Parts

This control switch is the user-facing rotary selector that lets the appliance select cycles and settings. It restores clear, tactile control so the unit responds correctly when you turn the knob. What it does:

• Selects operating cycles and settings when the knob is turned
• Routes electrical signals from the control panel to the selected function
• Commonly replaced when settings do not change or the control feels loose/slips
• Resolves intermittent or unresponsive cycle selection and erratic behavior

• Disconnect power before attempting any repair to avoid electrical shock
• Accessible from the control panel; remove trim or console as needed per your model's service instructions
• Test function after reassembly; do not force the selector or use excessive torque

Spark electrode with a 29 inch female terminal.

A small lock-style nut that secures a threaded shaft or fastener to prevent loosening from vibration and normal use. Restores a firm connection so the appliance parts stay aligned and operate quietly and reliably. What it does:

• Locks a threaded connection in place to prevent backing off from vibration
• Keeps rotating or mounted components secured to reduce wobble or movement
• Helps stop noises caused by loose fasteners or shifting parts
• Restores proper fit where a worn or missing nut allowed play

• Disconnect power (and water if applicable) before starting any repair
• Use the correct size wrench/socket and hold mating hardware to avoid twisting other components
• Inspect threads for damage; replace mating fasteners if stripped
• Tighten securely to OEM guidance; avoid over-tightening which can damage threads

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer
