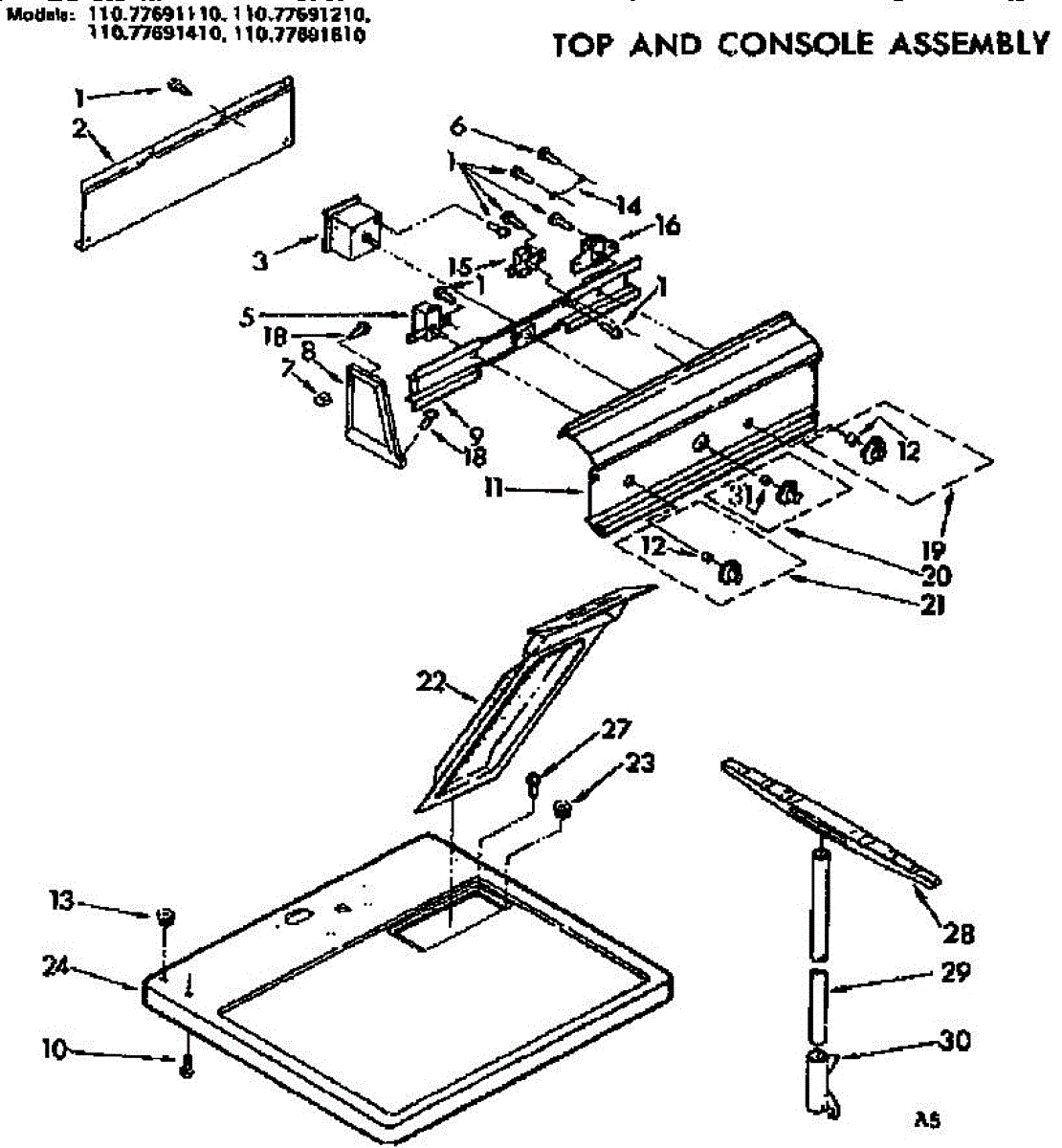

Parts for Sears 11077691110: Top And Console Assembly Parts

This is a push-to-start relay switch that initiates the dryer's motor circuit when the start button is pressed. It momentarily engages to start the drum motor spinning, then disengages once the motor reaches operating speed. Replace this relay if your dryer does not start when you push the start button, hums briefly without turning, or requires multiple attempts to start.

Push-in.

Color: Chrome. Measures about 2 inches in diameter.

Dryer lint screen filters debris during drying cycles. Replace when torn, damaged, or clogged beyond cleaning. Verify fit with your model number.

This lint filter catches lint and debris during the drying cycle to maintain proper airflow through the dryer's exhaust system. A clogged or damaged filter restricts airflow, which forces longer dry times, increases energy costs, and creates a fire hazard from lint buildup in the vent system.

Replace this filter if the pull handle is broken or cracked, the mesh is torn or separating from the frame, rust or metal flakes are visible on the screen, or lint is passing through instead of being trapped. The filter is white, measures approximately 20 inches long (excluding the handle) by 8.5 inches wide, and slides directly into the lint filter slot -- no tools needed, takes under a minute. Clean the filter before every load for best performance.

Type AB #8-18 x 5/8 inch thread-forming screw secures panels and components in appliances. Replace missing, stripped, or corroded fasteners.

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
