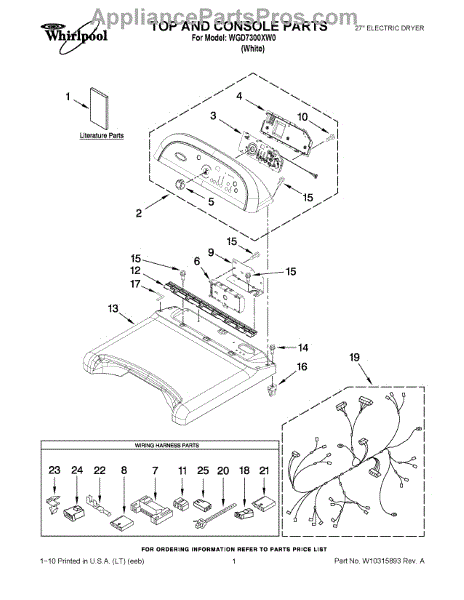

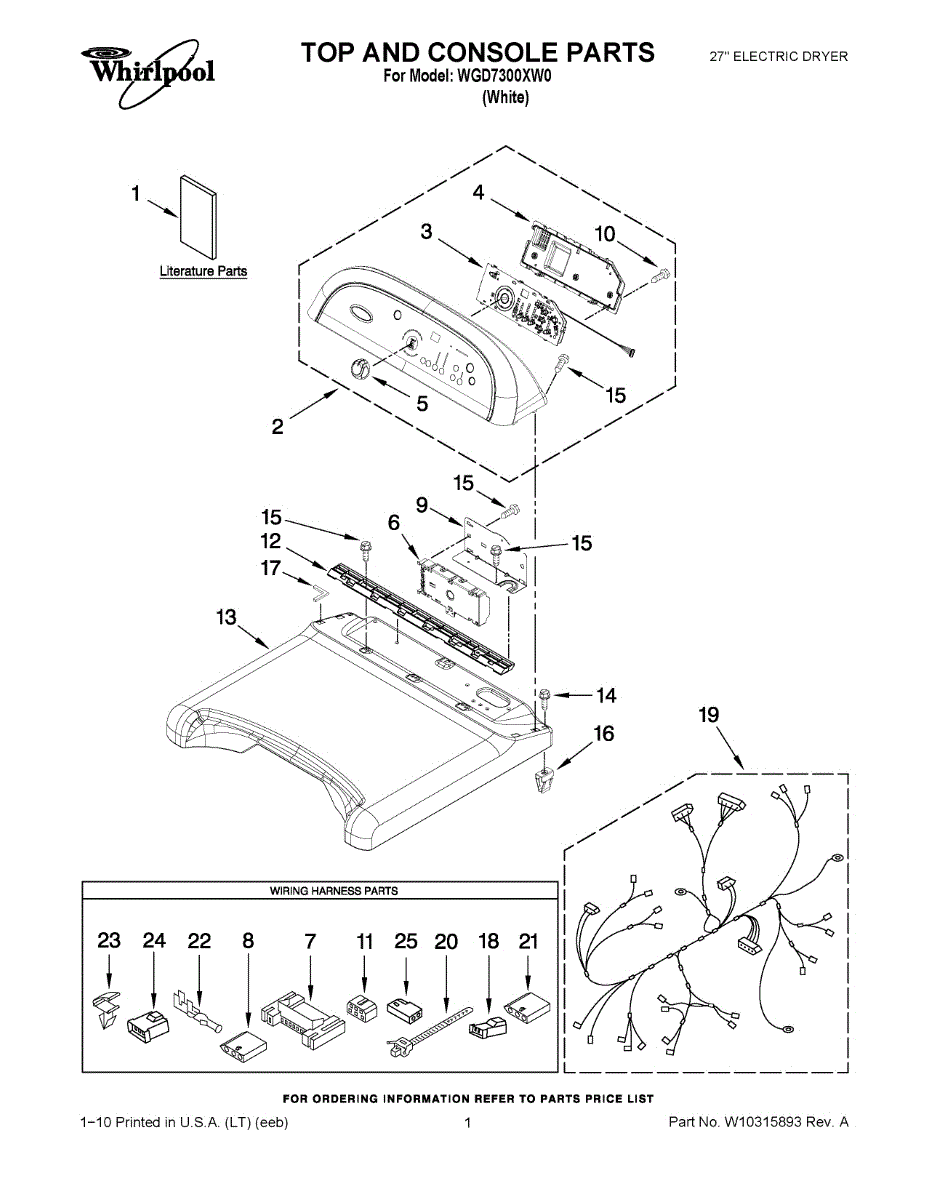

Parts for Whirlpool WGD7300XW0: 01 - Top And Console Parts

Fix a dryer that won't start, displays error codes, or has unresponsive buttons. This electronic control board restores console functions in about 1 hour.

This is a plastic rear cover that protects the user interface and control actuator assembly on the dryer's control panel. It shields the wiring and electronic components behind the control board from dust and damage. Replace this cover if it is cracked, broken, or missing, which can leave sensitive control wiring exposed.

This control knob assembly replaces a worn or broken selector knob so you can set and change appliance functions with a secure fit and clear detents. It restores reliable manual control for common user settings. What it does:

• Fits onto the control shaft to select cycles, temperatures, or settings depending on your model
• Provides tactile detents and a firm grip for accurate selection
• Resolves symptoms like a loose, cracked, or spinning knob that won't engage settings
• Prevents slipping or intermittent control inputs caused by a damaged knob

• Disconnect power (unplug or shut off breaker) before handling control parts
• Often installs by aligning onto the control shaft and pushing on until seated; some models may use a retaining clip or screw
• Handle gently to avoid damaging the control shaft or surrounding panel

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test

For mating plug use 691707.

Screw for control panel.

Replacement mounting screw for dryer assembly. Used to secure internal components and panels. Order a new screw if original is stripped, lost, or damaged.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

Secures dryer drum components and prevents rattling. Replace if broken or missing to restore quiet operation. Verify fit with your model number.

Dryer seal that prevents air leaks and maintains proper airflow. Replace if you notice excessive lint buildup or reduced drying efficiency. Verify fit with your model number before ordering.

2-position wire connector for dryers. Replaces damaged, melted, or corroded connectors in electrical wiring harnesses. Essential for restoring connections.

Complete wire harness assembly that routes power and control signals throughout your dryer. Replaces damaged, frayed, or burnt wiring harnesses.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

For mating terminal use [AP31136300].

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.
