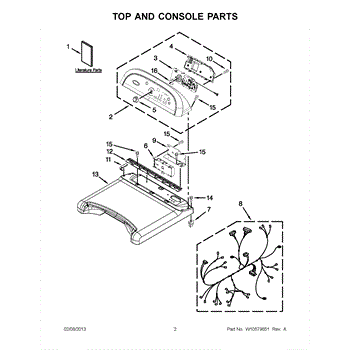

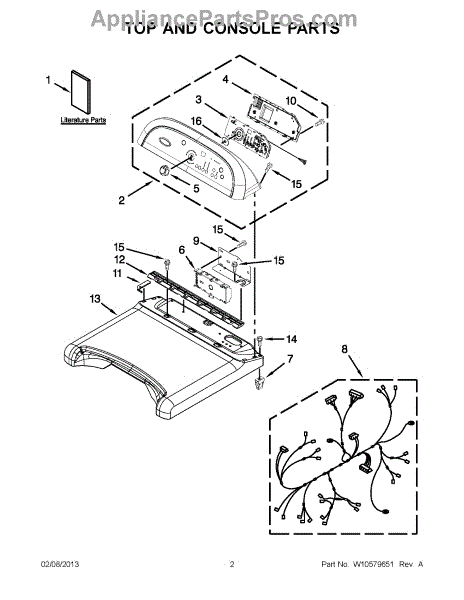

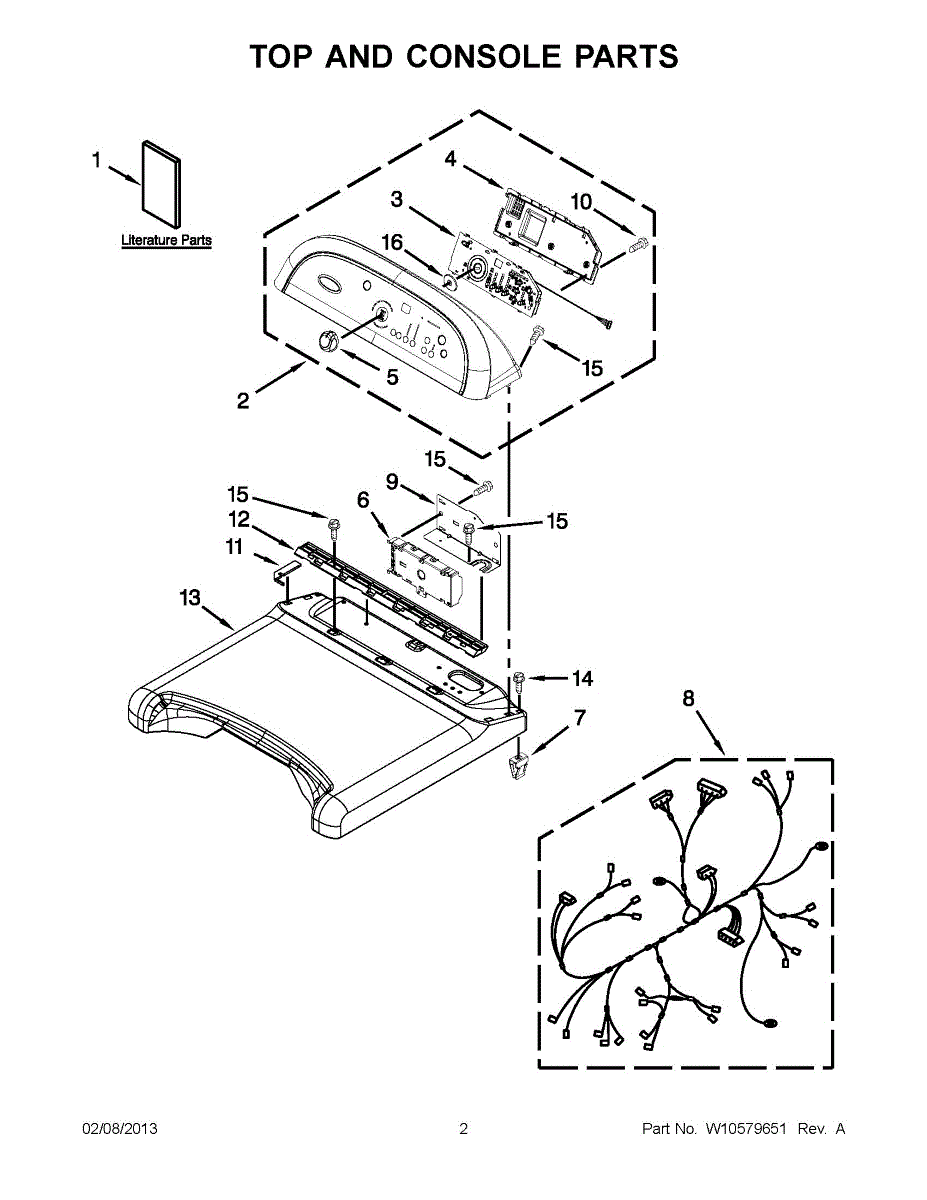

Parts for Whirlpool WGD8200YW3: 01 - Top And Console Parts

This electronic control board is the user-interface control for the dry cycle console, restoring responsive buttons, cycle selection and display functions so your dryer runs the settings you choose. What it does:

• Receives and processes user inputs from the dryer console and starts the selected dry cycles
• Controls cycle timing, heat/dry options and communicates status to the display
• Replaces a faulty console board that causes unresponsive buttons, blank or garbled displays, or incorrect cycle behavior
• Works with the dryer's main control to execute selected programs and safety interlocks

• Disconnect power to the appliance at the breaker or unplug before servicing
• Handle the board by the edges and avoid static discharge; use anti-static precautions if available
• Verify connector locations and orientation before removing the old board; label harnesses if needed

This control knob assembly replaces a worn or broken selector knob so you can set and change appliance functions with a secure fit and clear detents. It restores reliable manual control for common user settings. What it does:

• Fits onto the control shaft to select cycles, temperatures, or settings depending on your model
• Provides tactile detents and a firm grip for accurate selection
• Resolves symptoms like a loose, cracked, or spinning knob that won't engage settings
• Prevents slipping or intermittent control inputs caused by a damaged knob

• Disconnect power (unplug or shut off breaker) before handling control parts
• Often installs by aligning onto the control shaft and pushing on until seated; some models may use a retaining clip or screw
• Handle gently to avoid damaging the control shaft or surrounding panel

This electronic control board manages the washer's cycle selection and timing, translating user commands into signals that run the motor, valves, and display. Replacing a faulty board restores normal control and cycle operation. What it does:

• Controls wash cycle logic, timing, and user interface commands
• Sends signals to motors, water valves, and dispenser functions
• Monitors and reports errors to the console/display
• May cause failure to start, unresponsive controls, or incorrect cycle behavior when faulty

• Disconnect power before servicing to avoid shock or damage
• Handle the board carefully and avoid static discharge; use proper ESD precautions
• Minor disassembly of the console/panel is usually required; keep fasteners and components organized

Screw for control panel.

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards
