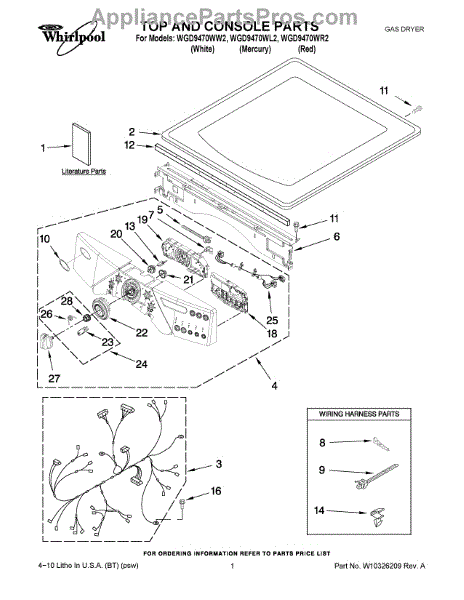

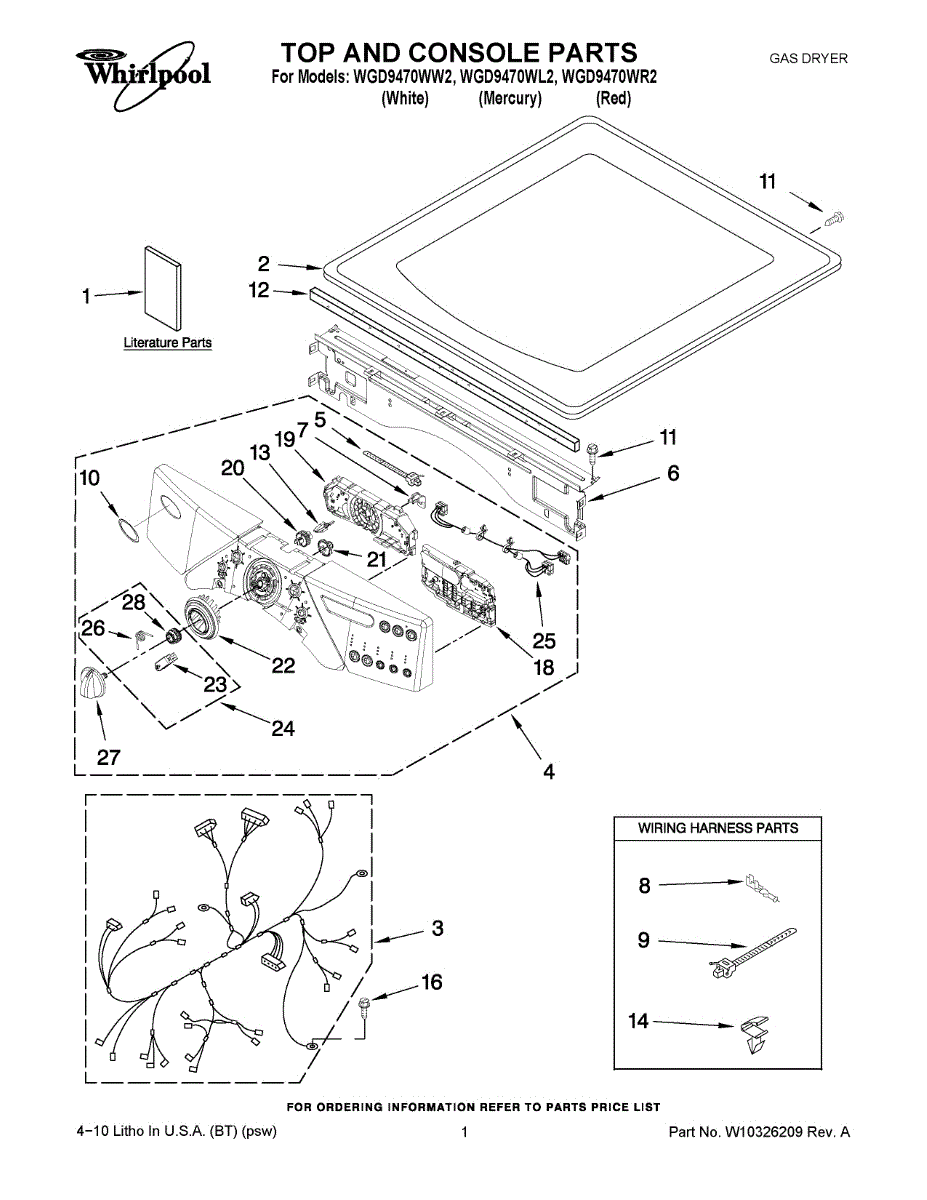

Parts for Whirlpool WGD9470WR2: 01 - Top And Console Parts

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

For mating terminal use [AP31136300].

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secures a water supply/hose to the appliance inlet fitting.
• Restores a proper connection to prevent leaking at the hose junction.
• Addresses symptoms such as visible leaks, intermittent water flow, or a loose hose connection.
• Works as a direct replacement for a damaged or corroded inlet adapter.

• Turn off water supply and unplug the appliance before installing.
• Inspect seals and replace any damaged washers or O-rings; tighten fittings by hand then snug with an appropriate tool—do not overtighten.
• Check for leaks after restoring water and power; re-tighten if necessary.

This harness clip secures appliance wiring to the cabinet or components to prevent rubbing, pinching, and interference with moving parts. It keeps wiring routed neatly for reliable operation and reduced risk of abrasion-related failures. What it does:

• Holds wire harnesses in place to prevent chafing against sharp edges or moving parts
• Reduces vibration-related noise and intermittent connections caused by loose wiring
• Helps maintain proper wire routing around panels, motors, and heaters
• Supports safe operation by keeping wires away from heat sources and pinch points

• Disconnect power to the appliance before servicing to avoid electric shock
• Remove panels or access covers as needed to reach the original clip location
• Install by snapping or seating the clip into the original mounting point and securing the harness in the retainer; replace any broken mounts
• Inspect surrounding wiring and replace damaged wires or insulation before completing repair

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This electronic control board replaces the appliance's primary control module to restore responsive controls and reliable cycle operation. It provides the logic and connections that manage functions, timers and user inputs. What it does:

• Interprets user commands and sends signals to drive motors, valves, heaters and other components.
• Restores normal operation when the appliance is unresponsive, shows a blank or blinking display, or fails to start cycles.
• Helps resolve intermittent or incorrect cycle behavior caused by a failed control board.
• Stops error codes or lockouts that originate from a faulty electronic control.

• One electronic control board

• Disconnect power (unplug or shut off breaker) before accessing electrical components.
• Handle the board by the edges and avoid static discharge; consider ESD protection.
• Verify the part number on the old board matches before installation.

This small retaining ring secures internal components in place to maintain proper alignment and motion. It helps prevent parts from slipping or shifting, reducing noise and wear for reliable appliance operation. What it does:

• Holds shafts, bearings or assemblies in position to prevent movement
• Stops components from slipping under load or vibration
• Helps reduce rubbing, grinding or rattling noises caused by loose parts
• Maintains proper clearances for smooth mechanical operation

• One retaining ring

• Disconnect power (and water, if applicable) before starting repairs
• Use proper snap-ring/retaining tools to remove and install without damage
• Inspect mating components for wear or damage and replace if necessary

This wire harness routes electrical power and signals between components so the appliance's controls and motors operate correctly. It replaces a damaged or worn connector set to restore reliable electrical connections. What it does:

• Provides the factory wiring connection between control, motor, switches and sensors
• Delivers power and signal paths so control boards and components operate
• Can fix symptoms such as intermittent operation, components that won't receive power, or appliances that fail to start
• Prevents shorting or poor contacts caused by frayed or corroded wires

• Disconnect all power before starting any repair to avoid shock or injury
• Take photos of existing routing and connector positions to ensure correct reinstallation
• Route and secure the harness away from moving parts and heat sources; use existing clips and ties
• If connectors are damaged or sockets are corroded, replace or repair those components rather than forcing connections

This control knob replaces a worn or broken range/dryer control knob to restore reliable selection and adjustment of settings. It provides a firm grip and clear pointer for accurate control of the appliance functions. What it does

• Turns control shafts to select temperature, cycle, or power settings
• Restores a secure grip when the original knob is cracked or loose
• Helps eliminate intermittent or inaccurate user input caused by damaged controls
• Works with the matching splined shaft style for a snug fit

• One control knob

• Pull the old knob straight off the control shaft; align the knob's splines and push the new knob on until fully seated
• If the knob is tight, use steady pressure—do not hammer or force, which can damage the shaft
• Disconnect power to the appliance before servicing electronic control areas and follow all safety guidelines
