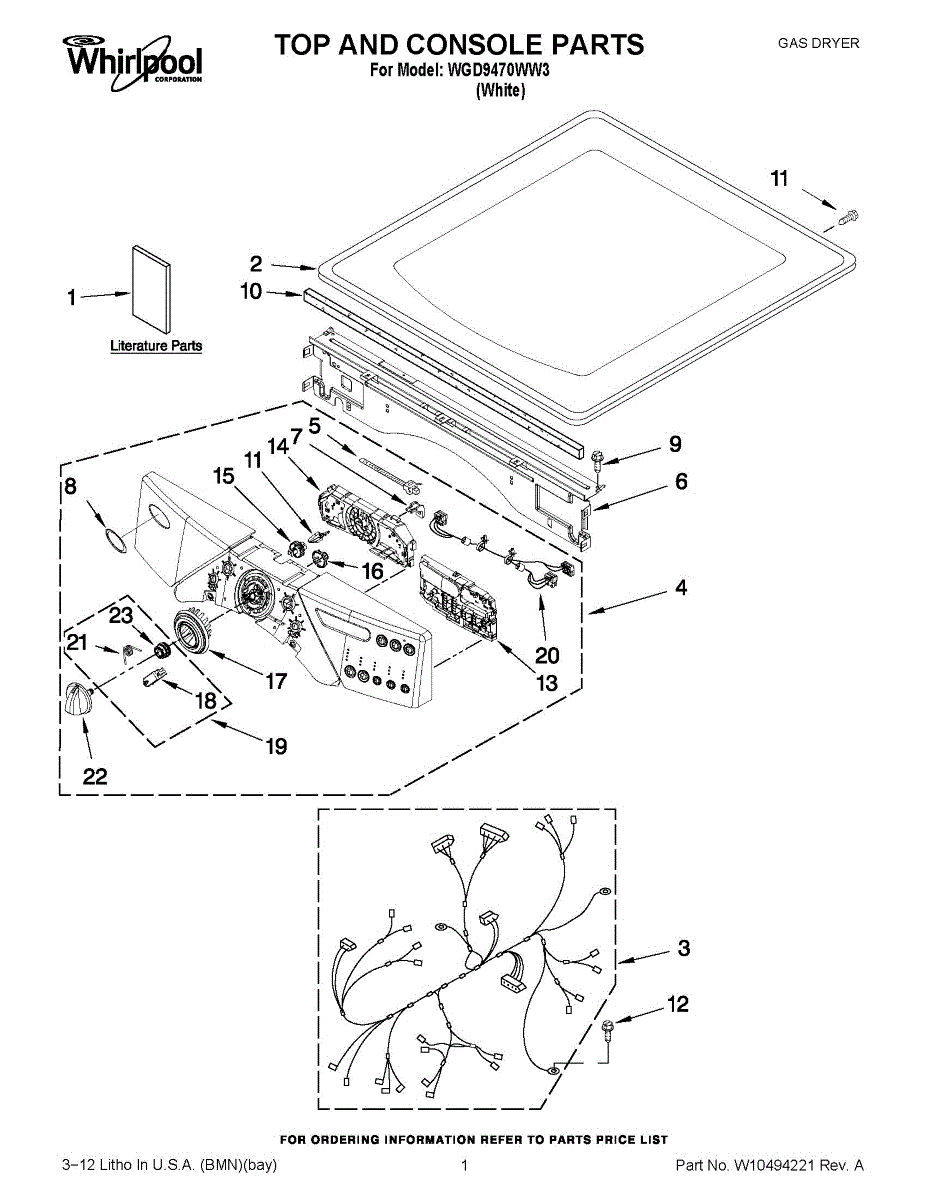

Parts for Whirlpool WGD9470WW3: 01 - Top And Console Parts

Wire harness for dryers. Connects electrical components inside the dryer cabinet. Replace if wires are frayed, damaged, or connections are loose or burnt.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

Fastener secures panels, brackets, and internal assemblies in washers, dryers, and refrigerators. Replace stripped, missing, or worn screws.

Replace your dryer seal to prevent air leaks and improve drying efficiency. Install when you notice gaps or worn edges. Verify fit with your model number.

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secures a water supply/hose to the appliance inlet fitting.
• Restores a proper connection to prevent leaking at the hose junction.
• Addresses symptoms such as visible leaks, intermittent water flow, or a loose hose connection.
• Works as a direct replacement for a damaged or corroded inlet adapter.

• Turn off water supply and unplug the appliance before installing.
• Inspect seals and replace any damaged washers or O-rings; tighten fittings by hand then snug with an appropriate tool—do not overtighten.
• Check for leaks after restoring water and power; re-tighten if necessary.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This electronic control board replaces the appliance's primary control module to restore responsive controls and reliable cycle operation. It provides the logic and connections that manage functions, timers and user inputs. What it does:

• Interprets user commands and sends signals to drive motors, valves, heaters and other components.
• Restores normal operation when the appliance is unresponsive, shows a blank or blinking display, or fails to start cycles.
• Helps resolve intermittent or incorrect cycle behavior caused by a failed control board.
• Stops error codes or lockouts that originate from a faulty electronic control.

• One electronic control board

• Disconnect power (unplug or shut off breaker) before accessing electrical components.
• Handle the board by the edges and avoid static discharge; consider ESD protection.
• Verify the part number on the old board matches before installation.

Secures internal dryer components in proper position. Replace this retaining ring if cracked, broken, or missing to prevent parts from shifting or slipping.

This adapter connects the appliance's water supply line to the inlet fitting, providing a secure watertight connection to restore proper water flow. Use it when the original coupling is damaged, cracked, or leaking. What it does:

• Adapts and secures a water supply/hose to the appliance inlet fitting.
• Restores a proper connection to prevent leaking at the hose junction.
• Addresses symptoms such as visible leaks, intermittent water flow, or a loose hose connection.
• Works as a direct replacement for a damaged or corroded inlet adapter.

• Turn off water supply and unplug the appliance before installing.
• Inspect seals and replace any damaged washers or O-rings; tighten fittings by hand then snug with an appropriate tool—do not overtighten.
• Check for leaks after restoring water and power; re-tighten if necessary.

Wire harness that routes electrical power between dryer components. Replace if wiring is damaged, connectors are worn, or harness is broken or missing.

This control knob replaces a worn or broken range/dryer control knob to restore reliable selection and adjustment of settings. It provides a firm grip and clear pointer for accurate control of the appliance functions. What it does

• Turns control shafts to select temperature, cycle, or power settings
• Restores a secure grip when the original knob is cracked or loose
• Helps eliminate intermittent or inaccurate user input caused by damaged controls
• Works with the matching splined shaft style for a snug fit

• One control knob

• Pull the old knob straight off the control shaft; align the knob's splines and push the new knob on until fully seated
• If the knob is tight, use steady pressure—do not hammer or force, which can damage the shaft
• Disconnect power to the appliance before servicing electronic control areas and follow all safety guidelines
