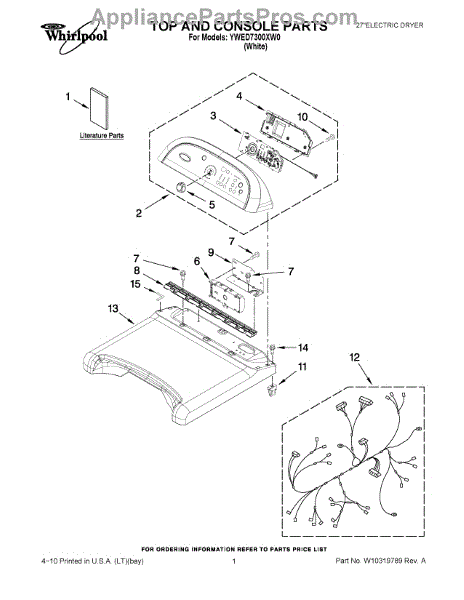

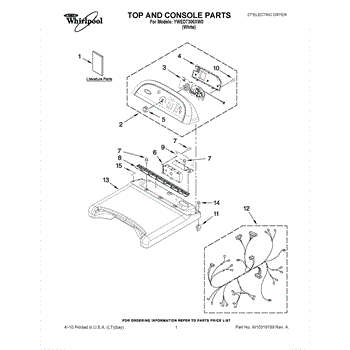

Parts for Whirlpool YWED7300XW0: 01 - Top And Console Parts

This electronic control board replaces the dryer's user interface console and restores control and display functions so cycles, temperature and time settings respond correctly. It provides the logic for the console and communicates with other dryer systems. What it does:

• Receives button/touch inputs and sends commands to start and control dryer cycles
• Interfaces with the display to show cycle status and settings
• Helps regulate cycle selection, timing and temperature signals to the main control
• Common symptom fix: unresponsive buttons, no display, or inability to select cycles

• Disconnect power at the breaker or unplug the dryer before servicing to avoid electrical shock
• Handle the board by the edges and avoid static discharge; wear an anti-static wrist strap if available
• Verify all wiring connectors are fully seated during reassembly and note connector locations before removal

This control knob assembly replaces a worn or broken selector knob so you can set and change appliance functions with a secure fit and clear detents. It restores reliable manual control for common user settings. What it does:

• Fits onto the control shaft to select cycles, temperatures, or settings depending on your model
• Provides tactile detents and a firm grip for accurate selection
• Resolves symptoms like a loose, cracked, or spinning knob that won't engage settings
• Prevents slipping or intermittent control inputs caused by a damaged knob

• Disconnect power (unplug or shut off breaker) before handling control parts
• Often installs by aligning onto the control shaft and pushing on until seated; some models may use a retaining clip or screw
• Handle gently to avoid damaging the control shaft or surrounding panel

This self-drilling screw secures appliance panels and components where a fastener must cut its own pilot hole. It provides a quick, reliable hold for repair or reassembly of trim, brackets, and internal fixtures. What it does:

• Fastens panels, brackets, and small components without pre-drilling
• Helps stop loose or rattling trim and parts caused by missing or worn screws
• Restores proper alignment and secure mounting after repairs
• Works where sheet metal or thin substrates require self-tapping engagement

• One self-drilling screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct size driver and steady pressure to avoid stripping the head
• Start straight and apply firm, even torque; avoid overtightening which can damage mounting surfaces
• Wear eye protection and handle small fasteners carefully to avoid loss or ingestion hazards

Screw for control panel.
