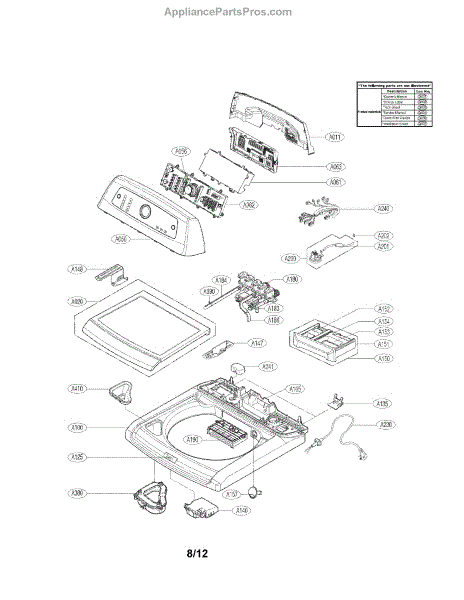

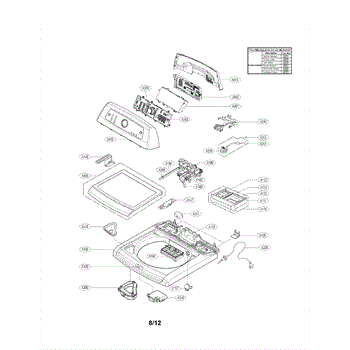

Parts for Kenmore 796.31522210 (79631522210, 796 31522210): Top Cover Assembly Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This lid assembly replaces the top cover for a top-load washer, restoring a secure, functional closure and proper lid-switch engagement so the machine can start and run safely. What it does:

• Covers the washer tub and provides a secure closure for normal operation
• Engages the lid-switch mechanism so the washer recognizes the lid as closed
• Helps prevent items from falling into the wash tub during use
• Restores proper alignment and smooth opening/closing of the lid

• One lid assembly

• Disconnect power before starting any repair to avoid shock or injury
• Support the lid while removing fasteners; some fasteners may be behind the control panel or hinge
• Use basic hand tools;

The Main PCB Assembly is an OEM part for LG washing machines. As the primary control circuit board, the Main PCB Assembly regulates all functions of the washer such as selecting wash cycles and temperatures, operating the motor, pump and tub functions, as well as monitoring operations.

Causes of a bad Main PCB Assembly can be related to excessive water exposure over time deteriorating electronic components or defects present on the printed circuit board itself.

Symptoms of a bad Main PCB Assembly are:

• The washer fails to start or continually stops mid-cycle
• Error codes or blinking lights are constantly displayed
• Loss of programming for custom cycles and settings
• The door will not unlock even after a cycle completes

This LG part is also compatible with some Kenmore models.

This display power control board assembly supplies and regulates power to the appliance display and user interface so touch controls, LED/LCD indicators, and display lighting operate correctly. Replace a faulty board to restore display responsiveness and readouts. What it does:

• Regulates and distributes power to the front display and control electronics
• Provides the interface signals for LEDs/LCD and touch/press inputs
• Can cause blank display, unresponsive controls, or erratic lights when failing
• Works with the appliance's main control system to show status and error codes

• Disconnect power before inspecting or replacing the board to avoid shock and damage
• Handle the PCB by edges and avoid contact with components or circuitry
• Verify connectors are fully seated and wiring is routed clear of moving parts before restoring power

This is a top cover for top-loading washing machines. It is a square panel that is fitted next to the lid on the appliance. It holds everything in place and has several cut-out areas for the lint compartment and other components of the machine. This part is made of strong materials but can be damaged over time. If it is broken or missing, the part should be replaced.When replacing the top cover, unplug the washing machine and shut off the water supply first. A pair of work gloves can be used to protect the hands. Open the door and look near the door opening for screws. Use a Phillips screwdriver to remove them. Lift up on the front edge of the top of the machine and access the other fasteners. Remove the top cover and place the new part in the same location. Reattach it to the washing machine while making sure everything is properly lined up.The top cover is sold individually and directly sourced from the manufacturer. This is an authentic OEM replacement part that fits Kenmore and LG washing machines.

The Lid Switch and Lock Assembly is an OEM component specifically designed for LG washing machines. It contains both the switch that detects when the lid is closed, as well as the metal lock mechanisms that securely engage the lid during active cycles. This switch contains a 47-inch wire harness with 6-pin plugs.

Symptoms of a bad lid switch and lock assembly include:

• The washer not starting or agitating with the lid open
• Inability to fully close or lock the washer lid
• Error codes related to sensed lid position issues

Causes of failure involve wear of lock moving parts combined with mechanical and electrical degradation over thousands of uses. Continuous hinge motions and detergent/cleaner exposure take their toll.

This Lid switch is also compatible with Kenmore units reliant on LG parts.

This bracket assembly secures internal components to the appliance frame, restoring stable support and alignment for panels or assemblies. Replacing a damaged bracket helps stop rattling and prevents misalignment that can affect operation. What it does:

• Provides a secure mounting point for panels, control boards, or internal assemblies
• Restores proper alignment to reduce vibration, noise, or rubbing parts
• Prevents loose components that can cause intermittent contact or wear
• Re-establishes structural support after impact, corrosion, or bracket failure

• One bracket assembly

• Verify power is disconnected before starting any repair
• Inspect mounting screws and adjacent parts; replace any damaged fasteners
• Tighten to manufacturer torque where specified and confirm proper alignment

This bracket assembly secures and supports internal appliance components, restoring proper alignment and stability to parts that have shifted or come loose. It provides a direct replacement to maintain safe, reliable operation. What it does:

• Provides a sturdy mounting point to keep panels, modules, or assemblies properly positioned
• Helps eliminate rattling, misalignment, or loose component movement
• Restores intended structural support after impact or wear
• Works as a direct-fit replacement to return original fit and function

• One bracket assembly

• Disconnect power (and water, if applicable) before beginning any repair
• Use appropriate tools and keep fasteners for a secure fit; replace damaged screws as needed
• Inspect surrounding components and wiring for damage before reassembly

This detergent dispenser box assembly holds and delivers liquid or powdered detergent to the wash chamber, restoring proper dispensing when the original detergent drawer is cracked, clogged, or leaking. Designed as a direct replacement assembly for compatible LG front-load washers. What it does:

• Houses the detergent and fabric softener compartments and channels solutions into the washer at the correct time.
• Restores proper flow when the original dispenser is cracked, warped, or blocked.
• Helps prevent detergent leaks that can cause residue build-up on the door or front panel.
• Compatible with automatic dispensing cycles so detergents are released during the correct wash phase.

• One complete detergent dispenser box assembly as shown.

• High-level replacement: usually accessible from the washer front; remove the front access panel or drawer trim as required.
• Disconnect power and water supply before beginning service to avoid shock or unintended operation.
• Inspect surrounding seals and cabinet for damage; replace any cracked clips or hoses as needed.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This detergent box is the molded dispenser drawer that holds and releases liquid or powdered detergent into the wash tub during cycles, helping ensure detergent is delivered where needed for cleaning. What it does:

• Holds liquid or powdered detergent and channels it into the washer during the fill and wash cycles
• Helps prevent detergent from spilling into the cabinet or away from the wash water
• Common symptom of failure: detergent leaks, fails to dispense, or sits in the drawer instead of flowing into the tub

• One detergent box (dispenser drawer) as shown

• Remove power and water connections before accessing the dispenser area
• Inspect surrounding seals and mounting tabs; replace if damaged to ensure a proper fit
• Clean the dispenser area and rinse with water before installing the new box to remove residue

This softener cap seals the fabric softener dispenser and helps direct liquid into the washer during the rinse cycle, preventing leaks and ensuring the dispenser empties properly. Simple replacement restores proper softener flow. What it does:

• Replaces a cracked, warped, or missing cap that can cause dispenser leaks or slow draining
• Helps channel fabric softener into the tub at the correct cycle instead of spilling into the washer
• Prevents dispenser area buildup and reduces drips that can stain clothing or the washer
• Matches OEM form to fit the factory dispenser housing

• One softener cap

• Turn off and unplug the washer before accessing the dispenser assembly
• Remove the dispenser drawer per your model's service instructions to access the cap
• Inspect surrounding dispenser components and seals; replace any damaged parts for best performance

This detergent box is the replacement drawer housing that holds and directs liquid or powder detergent in the washer's dispenser assembly, restoring proper detergent flow and minimizing leaks or dispenser clogs. What it does

• Replaces a damaged or cracked detergent drawer housing to stop leaks and contain detergent.
• Directs liquid and powder detergent into the wash chamber for normal dispensing.
• Helps prevent detergent buildup and improves dispenser drainage when functioning correctly.
• Commonly replaced when the drawer is broken, warped, or no longer seats properly.

• Disconnect power and water supply to the appliance before starting any repair.
• Remove the dispenser assembly to access and replace the box.
• Handle plastic parts carefully to avoid cracking; use proper tools and follow OEM alignment tabs when installing.

The Water Inlet Valve is an OEM replacement part specific to LG washing machines. It is an electronic solenoid valve located near the water supply inlet ports that controls the flow of water into the washer tub. The inlet valve precisely regulates water levels during different phases like filling, washing, rinsing, and spinning cycles.

Causes of a bad water inlet valve can include worn or faulty electronic components, mineral buildup obstructing valve movement, or damage to seals and diaphragms.

Symptoms of a bad water inlet valve include:

• Inability to properly fill the washer tub during cycles
• Water leaking or flooding from the valve area
• Erratic water temperature or varying fill levels between loads
• Cycles failing to advance due to inadequate or unregulated water flow

This OEM LG part is also compatible with Sears/Kenmore models.

The Hose Connector is an OEM part for LG washing machines. It controls the water flow during the wash and rinse cycles. This part is designed to facilitate a secure and leak-proof connection between different sections of the washing machine, such as the inlet valve and the tub, or the pump and the drain hose. Ensuring these connections are secure is vital for the efficient operation of the washing machine, preventing leaks and maintaining optimal water usage.

Causes of failure may involve cracks, splitting, or collapsed seals/gaskets, as well as excessive mineral or foreign deposits that can obstruct water flow.

Symptoms of a bad hose connector are:

• Slow or incomplete filling during wash cycles
• Water leaks at the supply valve or connector area
• Connector split, cracked or compromised fittings

This genuine LG replacement is also compatible with Kenmore washing machines.

This inlet hose channels household water into the appliance during the fill cycle. Replacing a cracked, brittle, or leaking hose restores a secure, leak-resistant path that helps prevent puddles and fill-related interruptions. What it does:

• Routes incoming water from the inlet valve into the appliance's internal water path
• Helps maintain a watertight connection when properly secured with clamps
• Typical failure signs: dripping or puddling under the unit, visible cracks/kinks/bulges, or lingering dampness
• A restricted or leaking hose can contribute to long fill times or incomplete cycles

• 1 inlet hose

• Disconnect power and turn off the water supply before servicing
• Place towels or a shallow pan to catch residual water
• Note the original routing and clamp locations; install the new hose the same way without twists or kinks
• Fully seat hose ends and secure clamps; restore water and run a brief fill to check for leaks

Detergent housing assembly that holds and routes detergent to the washer dispenser, helping ensure proper detergent flow and reducing leaks or dispenser jams. Fits into the dispenser area to replace cracked, warped, or damaged housing components. What it does:

• Houses and channels liquid or powdered detergent into the dispenser and wash chamber
• Restores proper detergent release when the original housing is cracked, broken, or warped
• Helps stop leaks and detergent buildup around the dispenser area
• Works with the dispenser drawer and related seals to maintain correct flow

• Disconnect power and turn off the water supply before starting service
• Use basic hand tools and follow the washer service manual or OEM diagram for disassembly/reassembly
• Inspect and replace any worn seals or gaskets at reassembly to prevent leaks

The Water Level Pressure Switch is an OEM replacement part for LG washing machines. It is an essential component that monitors and detects the water level within the washing machine tub during the wash cycle.

Symptoms of a bad water level pressure switch:

• Washing machine not filling with water or not stopping when the desired water level is reached
• Excessive water intake, leading to overfilling and potential leaks
• Error codes or indicators related to water level issues
• Washing machine not advancing to the next cycle due to incorrect water level detection

Causes of a bad water level pressure switch can include mechanical failure, electrical malfunctions, or blockages or debris preventing accurate water level readings.

This OEM LG part is also compatible with Sears/Kenmore washing machine models.

The Water Level Pressure Switch is an OEM replacement part for LG washing machines. It is an essential component that monitors and detects the water level within the washing machine tub during the wash cycle.

Symptoms of a bad water level pressure switch:

• Washing machine not filling with water or not stopping when the desired water level is reached
• Excessive water intake, leading to overfilling and potential leaks
• Error codes or indicators related to water level issues
• Washing machine not advancing to the next cycle due to incorrect water level detection

Causes of a bad water level pressure switch can include mechanical failure, electrical malfunctions, or blockages or debris preventing accurate water level readings.

This OEM LG part is also compatible with Sears/Kenmore washing machine models.

This multi wiring harness routes power and control signals between an appliance's control board and multiple components, restoring reliable electrical connections for proper operation. Designed to replace a worn, damaged, or faulty multi harness. What it does:

• Provides power and signal paths between control electronics and components
• Replaces broken, frayed, or corroded wiring that can cause intermittent operation or component failure
• Addresses symptoms such as no power to specific components, intermittent operation, or devices that won't respond
• Restores factory routing and connector interfaces when the original harness is damaged

• Disconnect power before starting any repair
• Compare the new harness to the old one to ensure connectors and lengths match before installation
• Route the harness along the original path and secure with existing clips or fasteners; avoid pinch points or heat sources
• If you find damaged connectors, bent pins, or other issues, replace the harness rather than attempting temporary repairs

This filter assembly is the appliance's line noise filter. It conditions incoming AC power and suppresses electrical interference to protect sensitive controls and help restore stable, reliable power when the original filter has failed. What it does:

• Suppresses EMI/RFI on the AC line to reduce electrical noise reaching the control system
• Helps stabilize power to boards, relays, and motors
• Common failure symptoms: no power, intermittent power, tripped breaker or blown line fuse, burning smell or visible scorching at the old filter
• Also known as a line filter, EMI filter, or noise filter

• 1 filter assembly

• Disconnect power to the appliance before servicing; capacitors in some products can retain a charge
• Note wire locations; transfer leads to identical terminals on the new filter and secure the ground connection
• Mount the assembly firmly in the original location to prevent vibration or wire strain
• After replacement, inspect related fuses and wiring if the old filter showed signs of overheating or surge damage

This dispenser assembly is the washer's detergent drawer housing. It channels incoming water through the detergent and fabric softener compartments (and prewash, if equipped) so additives are dispensed at the correct time and helps prevent leaks at the dispenser area.

• Directs water through the dispenser to flush detergent/softener into the tub at the proper points in the cycle
• Replaces cracked, warped, or clogged housings that leak or misdirect water
• Helps resolve detergent or softener remaining in the drawer after a cycle
• Addresses water leaking or overflowing from the dispenser area or visible damage/mineral buildup in the dispenser box

• Unplug the washer and shut off water supplies before servicing
• Pull out the drawer, remove the top cover as needed, then remove mounting screws and release hose clamps to detach the old assembly
• Move hoses/clamps to the new assembly and ensure gaskets/siphon caps are properly seated
• Run a quick fill/rinse to check for leaks before final reassembly

The Clamp is an OEM part for LG washing machines. It is used to secure the hose connections within the washer, ensuring that water flows correctly without leaks.

Over time, the clamp can become worn or damaged due to repeated exposure to water, vibration, or general wear and tear. If the clamp fails, it can lead to water leaks or hoses becoming detached.

Symptoms of a bad clamp include:

• Water leaking from hose connections
• Hoses coming loose or detaching during operation
• Visible rust or damage on the clamp
• Poor water flow or pressure issues

This OEM LG part is also compatible with Sears/Kenmore models.

This cover cap replaces a worn or missing finishing cap to restore a clean appearance and protect an exposed fastener or opening on compatible LG appliances. It helps keep dirt and moisture away from the underlying hardware. What it does:

• Covers and protects exposed screws, bolts or openings to improve appearance.
• Helps reduce debris buildup and potential corrosion on the underlying hardware.
• Restores the finished look when the original cap is cracked, broken, or missing.
• Simple cosmetic replacement that prevents small objects from entering the opening.

• Snap-in or press-fit style; align with the opening and press firmly until seated.
• If a fastener is present, remove the fastener before installing the cap; reuse the original fastener.
• Disconnect power and water before servicing to reduce risk of shock or damage.
• Use a non-marring tool and moderate force to avoid scratching surrounding surfaces.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
