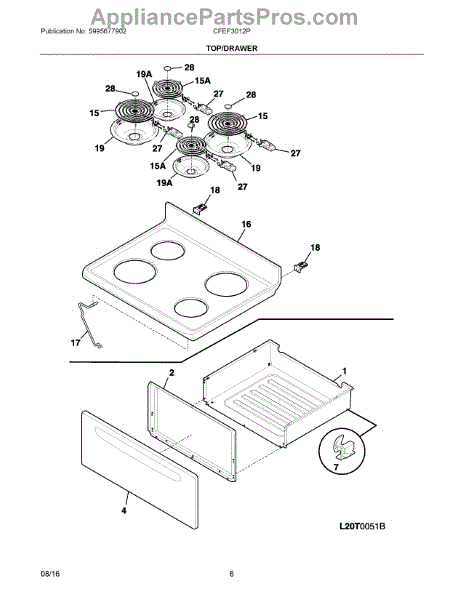

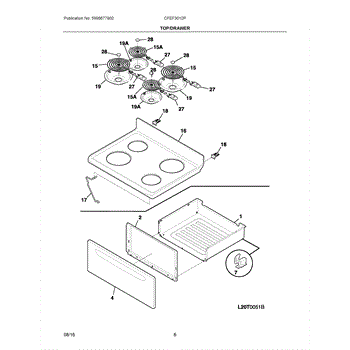

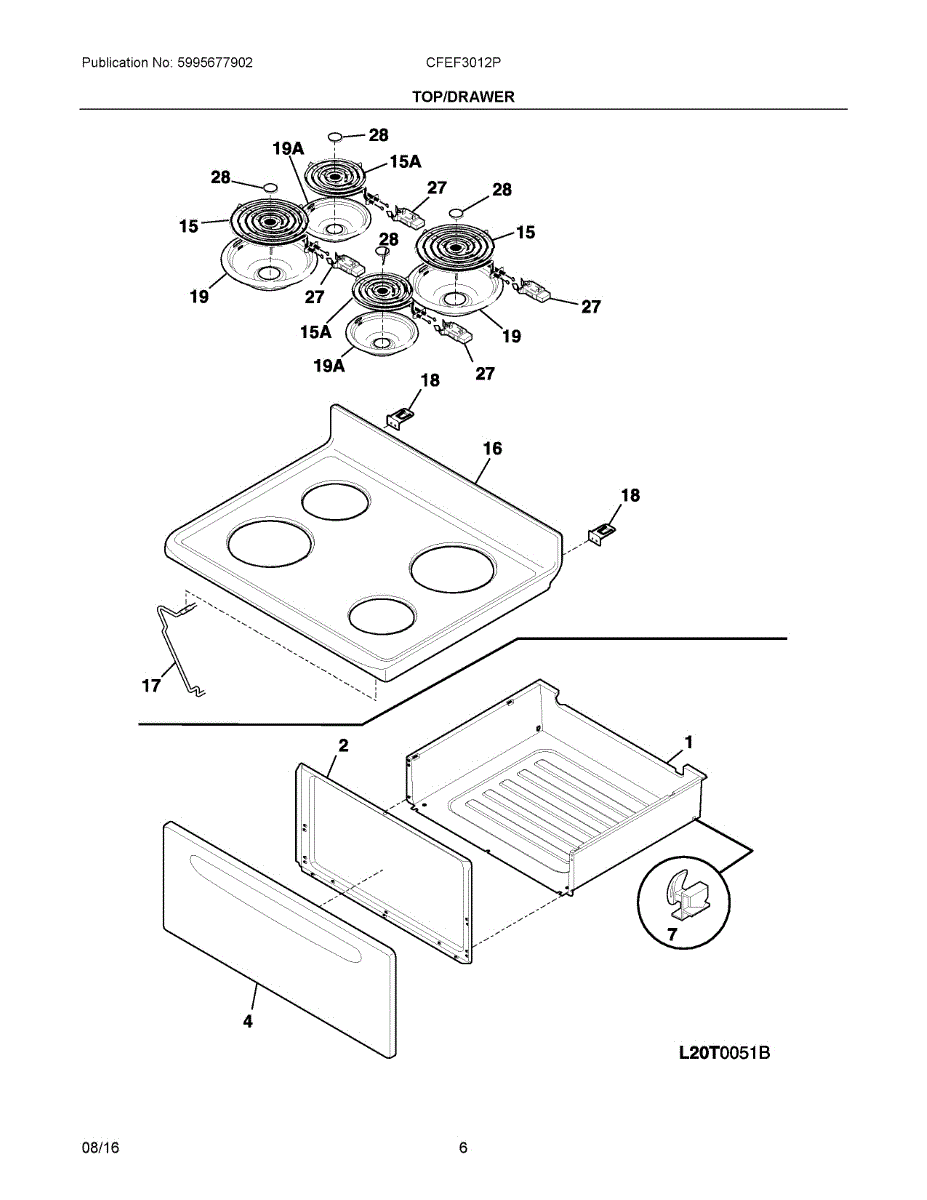

Parts for Electrolux CFEF3012PWD: 04 - Top / Drawer Parts

This lower drawer replaces a damaged or missing bottom drawer on your range, restoring smooth slide action and a flush, finished look so the lower compartment operates correctly and the appliance is complete again.

• Forms the pull-out compartment beneath the oven for convenient access
• Interfaces with the drawer slides to open and close smoothly
• Restores proper alignment and full closure at the base of the range
• Typical symptoms: drawer jams, falls off tracks, sits unevenly, or is bent/dented

• Disconnect power and shut off gas; allow the range to cool before servicing
• Pull the old drawer out and lift to disengage from the slides; transfer any reusable parts as needed
• Set the new drawer onto both slides evenly and test for smooth travel and full closure
• If the drawer doesn't seat flush, re-check slide engagement and appliance leveling

This interior refrigerator liner provides the finished, easy-to-clean surface for the fresh food compartment and helps support shelves and bins. It restores the cabinet interior to factory condition for proper fit and appearance. What it does:

• Replaces a cracked, warped, or stained interior cabinet surface.
• Provides a smooth, washable surface that helps keep food area sanitary.
• Supports mounted shelves, drawers, and trim pieces in the compartment.
• Restores proper alignment and sealing where the liner mates to refrigerator components.

• Disconnect power and remove all food and removable shelves/bins before starting.
• Typical installation requires removal of trim and fasteners; keep hardware accessible for reassembly.
• Handle carefully to avoid scratching the finished surface and to prevent injury from sharp edges.

The Rear Drawer Glide is an OEM part for Frigidaire ranges and ovens. This part is mounted on the rear end of the oven drawer, facilitating a smooth glide when the drawer is opened and closed. It ensures the stability and alignment of the drawer, preventing it from tilting or sticking during use.

Causes of a bad Rear Drawer Glide can include physical wear and tear from regular use, accidental damage, or degradation of the material over time. Regular inspection and maintenance can help identify issues early and extend the life of the glide.

Symptoms of a bad Rear Drawer Glide include:

• The oven drawer sticking or jamming when opened or closed
• The drawer sagging or not closing properly
• Unusual noises coming from the drawer due to misalignment
• Difficulty in smoothly operating the drawer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a vital component that provides the heat necessary for cooking. This element is designed to heat up quickly and maintain a consistent temperature, offering precise control to accommodate various cooking needs, from simmering sauces to boiling water. This element measures 8 inches.

Symptoms of a bad Coil Surface Element include:

• Element not heating up at all or only heating partially
• Inconsistent temperatures, making cooking unpredictable
• Visible damage or warping to the element
• Electrical sparking when turned on

Causes of a bad Coil Surface Element can include prolonged use leading to element burnout, a faulty connection between the element and the stove’s electrical source, or physical damage that disrupts the coil’s continuity.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Range Surface Element is an OEM replacement part for Frigidaire electric ranges. It is a crucial component that generates heat for cooking on the stovetop surface.

Symptoms of a bad range surface element include:

• Uneven or insufficient heating of cookware
• Element failing to heat up or taking an excessive amount of time to reach the desired temperature
• Visible signs of damage, such as cracks or warping on the element's surface
• Unusual smells or noises coming from the element during use

Causes of a bad surface element can range from electrical malfunctions to physical damage caused by impact or exposure to excessive heat over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This main top is the flat cooktop surface that mounts over a range's burner box to provide a stable, finished cooking surface and protect internal components from spills and debris. It restores a level, secure area for burners and cookware. What it does:

• Covers and protects the range's internal burner box and wiring from spills and food debris
• Provides a stable, level surface for burner grates and cookware
• Helps maintain proper airflow and fit for burner components
• Replaces warped, dented, or corroded tops that can interfere with burner alignment or cookware stability

• Disconnect power to the appliance before beginning any service
• Remove burner grates, knobs and other removable components to access mounting screws
• Handle carefully to avoid sharp edges; lift and set into place, aligning mounting holes before fastening

Main top support rod.

A replacement hinge bracket that secures and aligns the refrigerator door, restoring proper pivot and fit for smooth opening and closing. Install this bracket to correct sagging or misaligned doors and improve door seal performance. What it does

• Secures the door hinge to the cabinet and supports door weight — use when the door droops or hangs unevenly.
• Maintains pivot alignment so the door opens and closes smoothly without binding.
• Helps keep the door gasket aligned for a tighter seal; can reduce uneven gaps and cold-air loss.
• Replaces bent, cracked, or worn hinge-mounting points that cause noise or instability.

• One hinge bracket.

• Disconnect power to the appliance before starting work and remove or support the door to prevent injury.
• Support the door while removing and installing the bracket; a second person may be needed for large doors.
• Reuse existing hinge hardware if undamaged; replace fasteners if stripped or missing.
• After installation, check door alignment and adjust hinge position as needed for a proper seal.

The 6-inch Drip Pan is an OEM part for Frigidaire ranges. This drip pan sits beneath the heating element on the stovetop, catching spills, drips, and food debris that occur during cooking.

Causes of a bad drip pan can include corrosion from prolonged exposure to moisture, heat damage from the heating elements, or physical damage from heavy cookware.

Symptoms of a bad drip pan include:

• Rust or corrosion on the pan's surface
• Warping or bending of the pan
• Difficulty in cleaning due to burnt-on residue
• Visible holes or damage that allows spills to reach the underlying surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The 8-Inch Drip Pan is an OEM replacement part for Frigidaire ranges. It is positioned below cooktop burners to catch drips and spills on the cooking surface.

Causes of a faulty drip pan include scorching or discoloration from prolonged high heat exposure. Mineral buildup over time can inhibit drainage.

Symptoms consist of:

• Excess moisture near surface elements or controls
• Grease residues left on cooktop after cleaning
• Premature corrosion underneath the range top
• Electrical issues tripped by liquid contact

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Size: 6-20 x 0.312 inch.

Size: 8-32t x 0.500 inch. Color: Black.

This factory wire harness routes electrical power and signals between the controls and internal components of your cooking appliance. Replacing a burned or brittle harness restores safe, reliable connections and helps prevent shorts or intermittent operation.

• Distributes power and control signals between the user interface/control system and internal components
• Replaces damaged wires or connectors that can cause no operation or intermittent function
• Helps address short-to-ground conditions that trip a household breaker
• Restores proper routing to reduce wire chafing and heat exposure

• Disconnect power at the breaker or unplug the appliance before servicing
• Photograph/label connections and transfer one connector at a time to match original locations
• Route along factory paths and secure with existing clips/ties; keep clear of sharp edges and hot surfaces
• Inspect mating terminals for heat damage and repair/replace affected parts before reassembly

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
