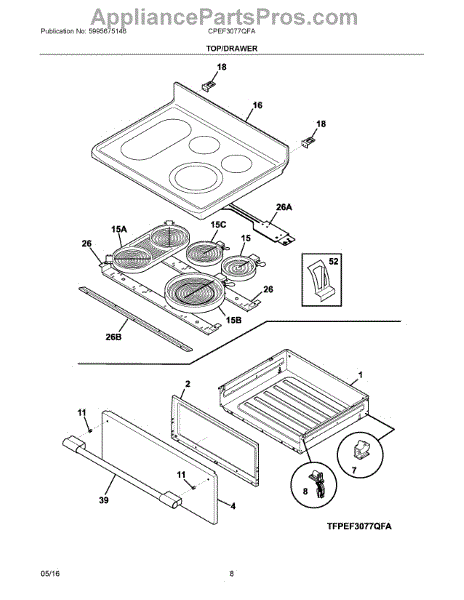

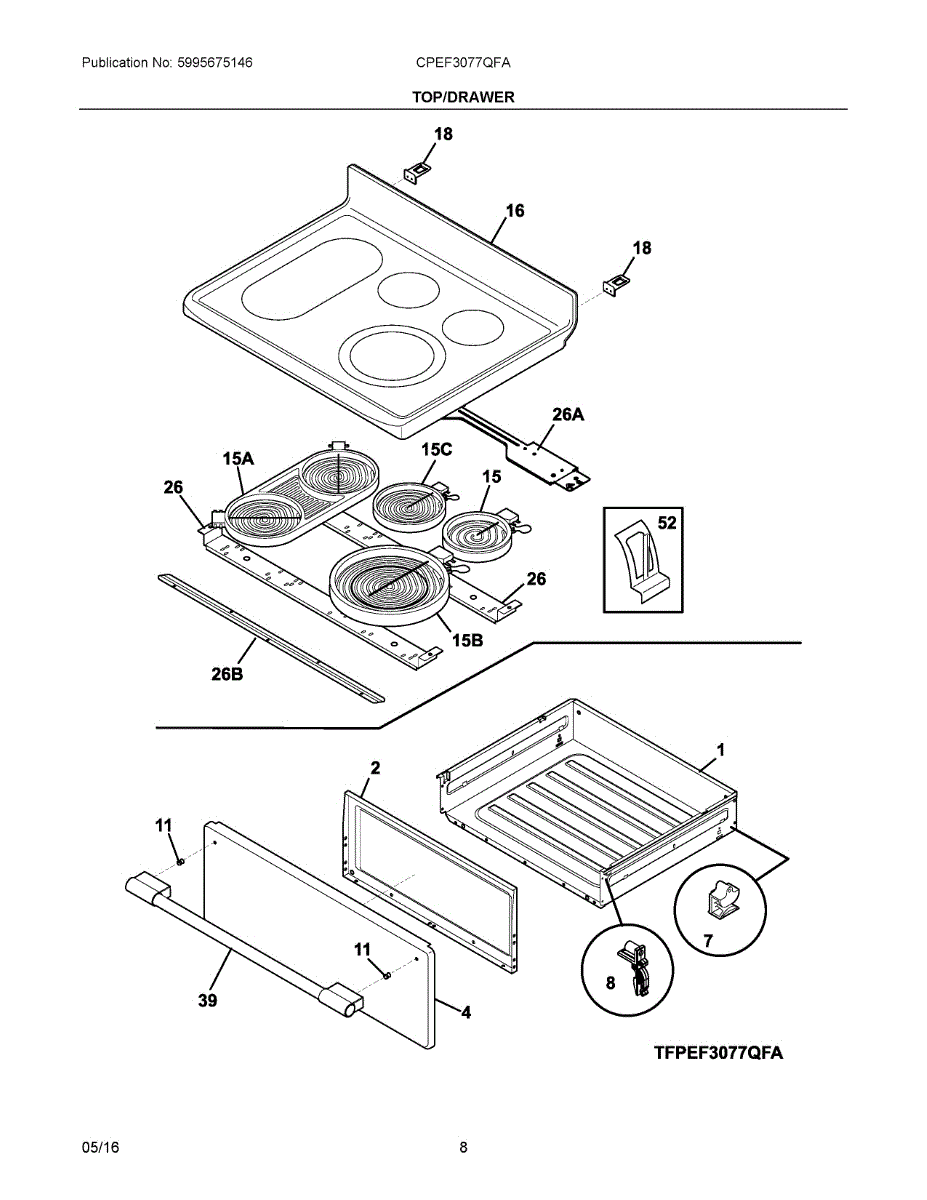

Parts for Electrolux CPEF3077QFA: 04 - Top / Drawer Parts

This liner attaches to the inside of the range's storage or warming drawer front panel, providing a finished interior surface and insulation. It helps protect the outer drawer panel from heat generated by the oven cavity above. Replace this liner if it is warped, cracked, discolored, or missing, which can allow excess heat to reach the drawer's exterior.

Outer panel for your range warming or storage drawer. Replaces cracked, dented, or discolored drawer front. Restores appearance and structure.

Rear glide attaches to the back of your range storage drawer, allowing smooth sliding motion. Replace if broken, cracked, or missing to prevent drawer tilt.

Drawer slide glide for electric and gas ranges. Replace if cracked, broken, or worn to restore smooth, aligned drawer movement and eliminate sticking.

This is a mounting nut used to secure the dishwasher to the underside of the countertop via mounting studs. It ensures the dishwasher stays firmly in place and does not shift during operation. Replace this nut if it is stripped, corroded, or missing, which can cause the dishwasher to move or become unstable when running.

This 100W radiant element replaces a failed warming element to restore gentle, even heat in the appliance's warmer/drawer. It delivers low-profile radiant heat for keeping food warm between cooking and serving. What it does:

• Radiates low-level heat to maintain food temperature in the warmer or drawer
• Replaces a broken or non-heating warmer element
• Common symptom: warmer drawer not holding temperature or not heating
• Works as the heating element that sits under the warming surface to provide consistent warmth

• Disconnect power to the appliance before attempting service
• Inspect mounting and wiring; replace any damaged connectors or mounting hardware as needed
• Handle the element carefully to avoid bending or damaging the heating surface

Cooktop burner not heating? This radiant element restores heat to non-working zones on glass-top ranges. Moderate DIY repair with oven access required.

Burner won't heat evenly or only outer ring works? This dual 9/12 inch radiant surface element restores proper heating. Easy DIY replacement in minutes.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

Replace your range's main top panel if cracked, damaged, or worn. This cooktop surface covers the burner assembly and provides a clean cooking area.

This is a metal hinge bracket that secures the main cooktop to the range frame and allows it to be lifted for access to components underneath. It connects the cooktop panel to the body of the range at the hinge point. Replace this bracket if it is bent, broken, or missing, which can cause the main top to sit unevenly or not stay properly secured.

Mounting bracket for electric and gas ranges. Secures components in place. Replace if bent, cracked, or broken to restore proper fitment and stability.

Secures internal components and panels in your range. Replace this mounting bracket if cracked, broken, or missing to restore proper support and alignment.

Replace the channel trim on your range door when it becomes cracked, broken, or damaged. This structural component installs along the door edge for a secure fit.

This is a handle assembly used on the oven door or storage drawer of a range. It provides a grip point for opening and closing the door during cooking and cleaning. Replace this handle if it is cracked, broken, loose, or if the mounting points have become damaged and no longer hold the handle securely in place.

This replacement part is a black element mounting clip used in ranges or wall ovens. This clip is used for surface elements on electric ranges and ovens. The clip itself connects the surface of the element to the support bracket which allows the stove to heat up. The user might need a new clip or clips if the heating element on the stove is loose, if the heating element is completely detached, or if the clip itself is bent or broken. This clip is black and made of sturdy metal that can withstand heat as well as strain on the clip itself. Installation of this clip is very simple as it just requires replacing the old one with a new one and making sure it is secure. Pliers might be required if the old clip is bent or stuck near or on the heating element. There are no special tools needed for this repair. This is an OEM part sourced directly from the manufacturer. It is sold individually. This part is compatible with machines from Frigidaire and other brands like Electrolux, Gibson, Kelvinator, Crosley, Westinghouse, and more.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Touch-up paint for electric ranges. Covers scratches, chips, and worn spots on exterior surfaces. Essential for restoring appearance after damage.

Black mounting screw that secures range body side panels. Replace if stripped, missing, or corroded. 8-18 x 11/16 inch fastener for structural assembly.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Size: 6-20 x 0.312 inch.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
