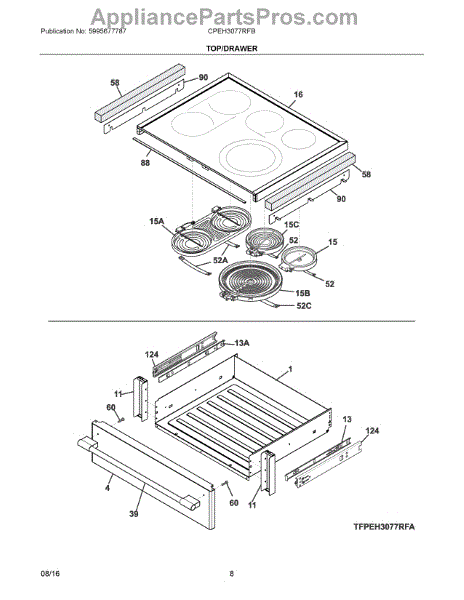

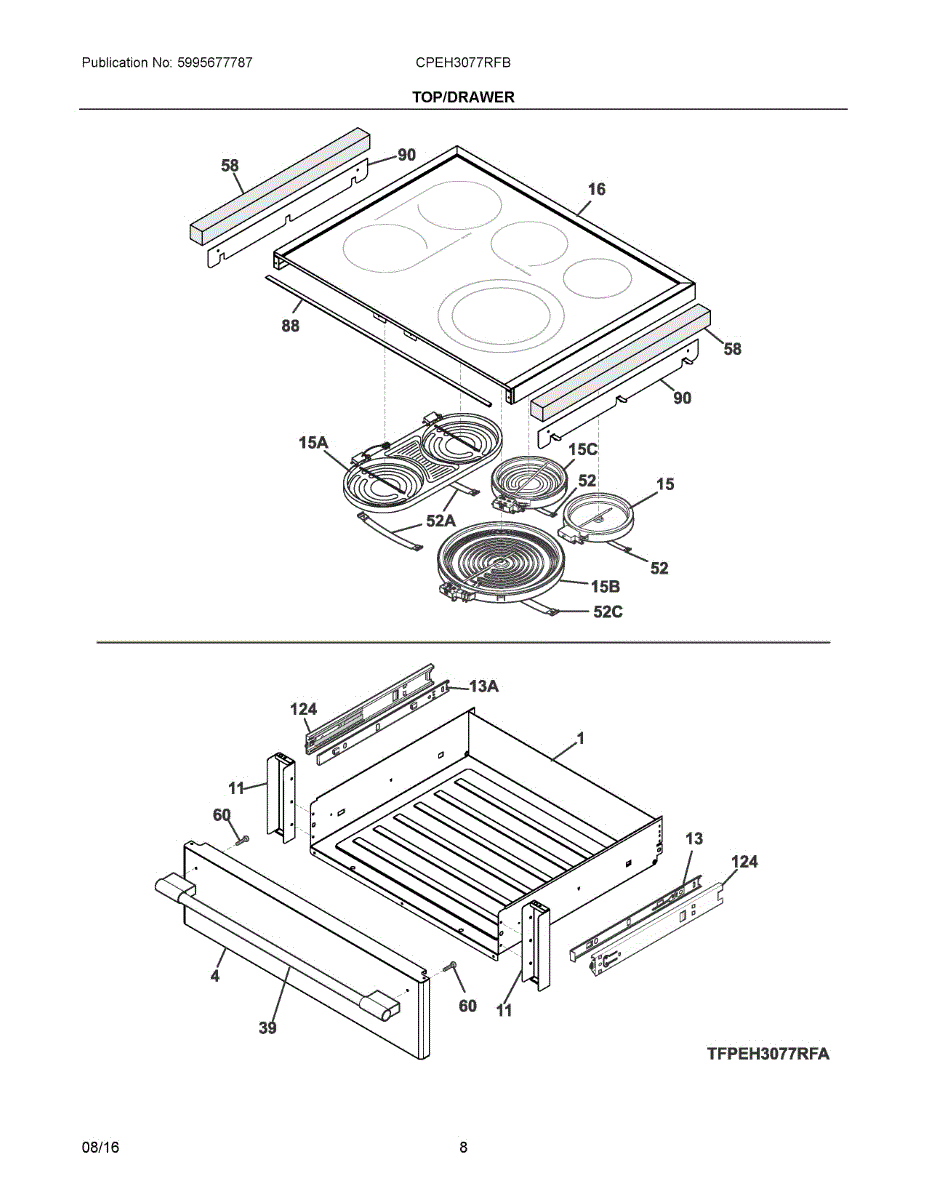

Parts for Electrolux CPEH3077RFB: 04 - Top / Drawer Parts

This bake element is the oven heating element that provides the radiant heat needed for baking and roasting. Replacing a failed element restores proper oven heat so food cooks evenly and on schedule. What it does

• Heats the oven cavity to set temperatures for baking and roasting
• Restores consistent surface heat when the original element is burnt out or broken
• Helps eliminate symptoms like oven not reaching temperature, long preheat times, or uneven cooking
• Works with the oven's control system to cycle heat on and off as required

• One bake (oven) heating element

• Disconnect power at the breaker before inspecting or installing to avoid shock
• Handle the element carefully—the heating surface and terminals can be fragile
• Verify terminal connections and avoid pinching wires during reassembly

This 100W radiant element replaces a failed warming element to restore gentle, even heat in the appliance's warmer/drawer. It delivers low-profile radiant heat for keeping food warm between cooking and serving. What it does:

• Radiates low-level heat to maintain food temperature in the warmer or drawer
• Replaces a broken or non-heating warmer element
• Common symptom: warmer drawer not holding temperature or not heating
• Works as the heating element that sits under the warming surface to provide consistent warmth

• Disconnect power to the appliance before attempting service
• Inspect mounting and wiring; replace any damaged connectors or mounting hardware as needed
• Handle the element carefully to avoid bending or damaging the heating surface

The Radiant Surface Element is an OEM part for Frigidaire ranges and cooktops. This part generates heat for cooking and boiling on the cooktop surface.

Causes of a bad Radiant Surface Element can range from electrical issues or loose connections to physical damage from impact or spillovers.

Symptoms of a faulty Radiant Surface Element include:

• Element not heating up or providing insufficient heat
• Element glowing unevenly or only partially heating
• Cracks or damage visible on the element surface
• Burning smells or discoloration on the cooktop

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Surface Element is an OEM part for Frigidaire ranges. The small surface element is responsible for providing direct heat to the cookware placed on the corresponding burner of the electric cooktop or range. This element is typically located underneath the glass surface of the cooktop or range, ensuring efficient and even heat distribution for cooking.

Symptoms of a failing Surface Element include:

• The element not heating up at all
• Heating unevenly or only partially
• Noticeable damage or blistering on the element itself
• The control switch not regulating the temperature properly

Causes of a bad surface element can include a burnt-out coil, a break in the element's continuity, or problems with the connection points such as corrosion or loosening. Regular wear and tear from cooking can also lead to degradation over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement refrigerator door handle restores a secure grip and fresh appearance to a damaged or worn door. Designed to mount in the original location, it lets you open and close the door smoothly while matching the appliance's original fit. What it does:

• Provides a sturdy grip for opening and closing the refrigerator door.
• Replaces cracked, broken, loose or cosmetically damaged handles.
• Helps restore proper door operation by giving a solid attachment point for normal use.
• Matches original mounting points to align with the existing door hardware.

• Disconnect power or unplug the appliance before starting and work on a stable surface.
• Support the door while removing and reinstalling hardware to prevent it from shifting or falling.
• Use basic hand tools (screwdriver/socket) to remove existing fasteners; reuse original screws if undamaged.
• Tighten mounting screws securely but avoid over-torquing to prevent damage to the handle or door.

Used on the 1200 watt element

This element mounting spring secures a surface cooktop heating element to the range, keeping the element stable and ensuring consistent electrical contact for reliable heating. Replaces a worn or missing spring to restore proper element fit. What it does

• Holds the surface heating element in place under the cooktop or in the drip pan.
• Maintains stable mechanical and electrical contact so the element heats evenly.
• Prevents element wobble, movement, or poor seating that can cause intermittent heating.
• Commonly needed when an element drops, rattles, or fails to make solid contact.

• Disconnect power to the appliance before starting any repair.
• Remove the element and/or drip pan per the range service instructions to access the spring.
• Install the spring in the same orientation as the original; ensure the element seats fully and securely.

A replacement 10-24 x 5/8 screw used to fasten interior and exterior appliance components. Simple, direct-fit hardware that restores secure mounting where a worn or missing machine screw is causing loose panels or trim. What it does:

• Secures panels, brackets, and trim pieces to prevent rattling and misalignment
• Replaces stripped, rusted, or lost screws that cause loose or vibrating parts
• Restores proper attachment for components that won't stay in place
• Works wherever a 10-24 x 5/8 machine screw is required

• One 10-24 x 5/8 screw

• Use the correct driver and steady pressure to avoid stripping the head or threads
• Tighten until snug; avoid over-tightening which can damage mating parts
• Disconnect power to the appliance before working on electrical or moving components
• Replace the receiving nut or insert as needed for a secure fit

This rubber bumper cushions doors and panels to reduce noise, prevent metal-on-metal contact, and protect finishes for smoother, quieter operation. Replace worn or missing bumpers to help restore proper seating and reduce rattling. What it does:

• Absorbs shock between moving parts to prevent bangs and scratches
• Keeps doors and panels aligned for a tighter seal and quieter close
• Reduces vibration and rattling during operation
• Helps protect painted or plated surfaces from wear at contact points

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Typically a push-in or snap-in replacement; press into the original mounting hole until seated
• Inspect nearby bumpers and replace in matched sets if others are cracked or missing

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

Size: 3/4 inch od x 1/4 inch id.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment
