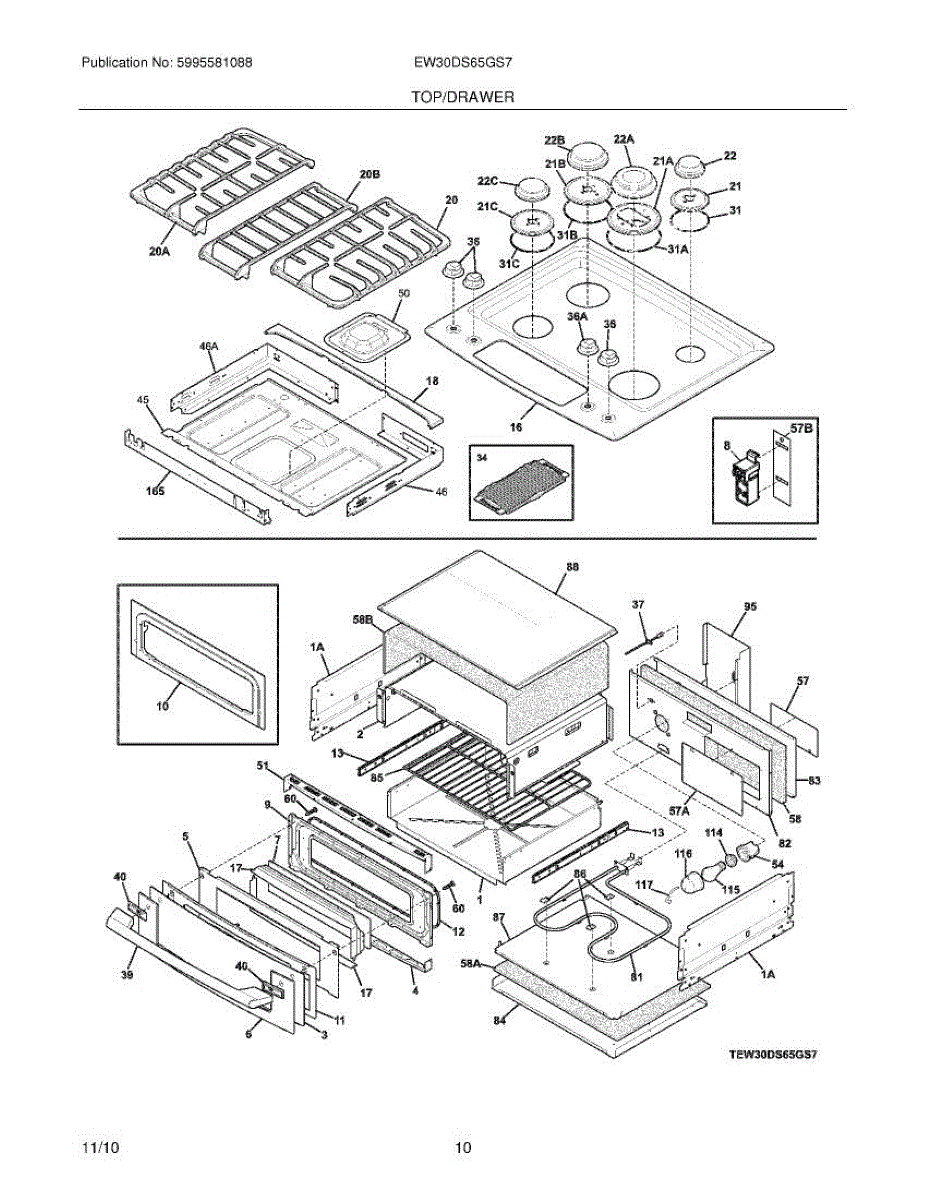

Parts for Electrolux EW30DS65GS7: 09 - Top / Drawer Parts

This deflector directs chilled air inside the compartment to help maintain more even temperature distribution. It replaces a damaged or missing air guide to restore proper airflow and reduce uneven cooling. What it does

• Channels cold air from the evaporator toward the interior to improve circulation.
• Helps prevent localized warm spots or uneven cooling on shelves and drawers.
• Replaces cracked, broken, or warped deflectors that can obstruct airflow.
• Supports normal airflow patterns that reduce frost buildup on the back wall.

• Disconnect power to the appliance before beginning any work.
• Remove food and any shelves or panels that block access to the deflector.
• Handle the part carefully to avoid sharp edges; secure with existing fasteners or clips.

The Spark Module is an OEM part for Frigidaire ranges and cooktops, designed to generate and control the ignition spark for the burners. This component ensures that each burner lights reliably and safely when the control knob is turned to the ignite position. By producing a high-voltage electrical spark, the spark module ignites the gas released by the burner, allowing for the cooking process to begin. It's a key part of the appliance's operation, ensuring both performance and safety.

The causes behind these issues can often be traced back to a malfunction within the spark module itself, which may result from normal wear and tear, moisture exposure, or electrical surges. A faulty spark module can lead to inefficient burner operation, potentially causing gas leaks or preventing the appliance from being used for cooking.

Symptoms of a failing Spark Module include:

• Burners not igniting when the control knob is turned
• Intermittent ignition or failure to maintain a flame
• Continuous sparking when the burner is on or off

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement cooktop grate restores a stable, level surface for cookware on a gas range cooktop, helping maintain even heating and safe pot/pan support. Durable construction resists normal cooking wear. What it does:

• Supports cookware over the burner for stable cooking
• Replaces cracked, chipped, or warped grates that cause pots to wobble
• Helps maintain proper burner airflow and consistent heat distribution
• Keeps the cooktop surface usable and safe during everyday cooking

• Allow all surfaces and burners to cool completely before removing or installing the grate
• No special tools typically required; lift old grate off and set the new grate into place
• Inspect burner caps for proper alignment after installation
• Follow your range manufacturer's service instructions and safety precautions

This burner cap is the replacement top piece for a surface gas burner, restoring proper flame shape and heat distribution for reliable cooking. It helps protect the burner head and keeps the flame centered for consistent performance. What it does

• Centers and shapes the burner flame for even heating across cookware
• Protects the burner head from spills and debris that can block ports
• Helps prevent yellow or irregular flames caused by a damaged or misaligned cap
• Common symptom: uneven or weak flame, burner flame that drifts or won't stay lit

• Turn off the range and ensure all surfaces are cool before servicing
• Lift off the old cap from the burner head; no tools are typically required
• Set the new cap flat and centered on the burner head so it sits flush
• If problems persist after replacement, inspect the burner head and ports for blockage

This removable cooktop griddle provides a flat, durable cooking surface for preparing pancakes, sandwiches and other foods over range burners. It restores a smooth, even surface for stovetop griddle cooking when the original is damaged or worn. What it does:

• Replaces a worn, warped or damaged cooktop griddle to restore an even cooking surface
• Provides a flat, continuous surface for foods that need consistent contact with heat
• Helps reduce hot spots and sticking when the original griddle surface is compromised
• Works with compatible range/cooktop configurations that accept a removable griddle plate

• One removable cooktop griddle plate

• Disconnect power to the appliance (and turn off gas if applicable) before handling parts
• Allow the appliance and griddle to cool completely before removal or installation
• Fit the griddle into the cooktop openings so it sits flat and level; verify proper seating before use
• Clean per manufacturer guidance; avoid abrasive tools that can damage the cooking surface

This replacement control knob restores smooth, positive control of your range settings. It fits over the control shaft so you can turn burners or oven functions on and accurately set heat levels, with a clear position indication.

• Attaches to the control shaft to operate burners or oven functions and adjust settings
• Replaces cracked, stripped, or missing knobs
• Helps when the knob falls off, spins without adjusting, or is hard to turn
• Restores clear pointer alignment and a solid, secure feel

• Pull the old knob straight off the shaft; avoid prying on the control panel
• Align the flat/D-shaped opening with the shaft and press firmly until fully seated
• Disconnect power before accessing or servicing any controls behind the panel

This replacement control knob restores a secure fit and clear setting selection on your range or cooktop. It replaces a worn, cracked, or missing knob so you can adjust heat and functions with confidence. What it does:

• Attaches to the control shaft to select burner or oven settings
• Provides a clear pointer and solid grip for precise adjustments
• Helps ensure safe, reliable shutoff and operation
• Common signs of failure: cracked or stripped insert, loose/wobbly fit, knob falls off, hard to turn, worn-off markings

• 1 control knob

• Disconnect power; shut off gas and allow the appliance to cool
• Pull the old knob straight off the shaft—no tools are typically required
• Align the new knob with the flat (D-shaft) or spline orientation and press firmly until seated
• Rotate through all positions to ensure smooth operation—do not force

This oven temperature probe detects the oven's internal temperature and delivers readings to the control board so the oven can regulate heat more accurately for consistent cooking results. Ideal when your oven is giving incorrect temperature feedback. What it does:

• Measures internal oven temperature and sends the signal to the oven control or thermostat.
• Helps the control board maintain set temperatures for even baking and roasting.
• Common symptoms that indicate a failing probe: oven runs too long, doesn't reach set temperature, or produces uneven cooking.
• Replaces a damaged or erratic probe that causes incorrect temperature readings.

• Always disconnect power at the breaker or unplug the appliance before servicing.
• Access typically requires removing the oven access panel or control panel; handle the connector and wiring gently.
• Verify connector orientation before installation; secure wiring away from heating elements.

This insulation panel fits inside the refrigerator cabinet to help reduce heat transfer and improve overall cooling efficiency. It also dampens noise and helps maintain more consistent internal temperatures. What it does

• Provides thermal insulation to limit heat gain and reduce compressor runtime.
• Helps reduce rattling and other cabinet-borne noise.
• Supports even cooling by insulating cold compartments from surrounding warm surfaces.
• Can prevent localized warm spots when installed intact.

• Disconnect power before starting and work with the fresh, empty appliance.
• Installation typically requires removing interior liners or panels.
• Handle carefully to avoid tearing or compressing the insulation; wear gloves and eye protection as needed.
• Use manufacturer-recommended fasteners or adhesive if the original used adhesive backing or clips.

This wire oven rack restores stable, even support for cookware and bakeware inside the oven cavity so you can cook and roast with correct clearance and airflow. Designed to replace worn, bent or missing oven racks. What it does

• Provides a stable surface for pots, pans and baking sheets during cooking and roasting
• Restores correct rack spacing and airflow for even heating
• Replaces bent, rusted or warped racks that no longer slide or support cookware
• Compatible with standard oven side-rail grooves for easy placement

• One wire oven rack

• Slide the rack into the desired oven rail position until it seats securely; no tools required for typical installations
• Allow the oven to cool completely before removing or installing the rack to avoid burns
• Clean rack per manufacturer instructions; avoid abrasive cleaners that can damage finish
• If the rack is difficult to slide, inspect oven rails for damage or obstructions before forcing

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Specs: 8 - 18 x 0.500

This door gasket seals the refrigerator door to help maintain proper temperature and energy efficiency by preventing warm air from entering the cabinet. It replaces a worn or torn seal to restore a tight closing perimeter. What it does:

• Creates an airtight seal around the refrigerator door to help keep cold air in and warm air out.
• Helps reduce frost buildup and keeps food at consistent temperatures.
• Commonly replaces gaskets that are cracked, flattened, torn, or no longer form a tight seal.
• Can reduce excessive compressor run time and cycling caused by air leaks.

• One refrigerator door gasket.

• High-level DIY replacement: remove the old gasket, clean the door flange, and press the new gasket into the retainer channel; some gaskets may require slight heating to set the fit.
• Check alignment and ensure gasket fully seats around the door perimeter before testing.
• Use basic hand tools; disconnect power if working near electrical components or lighting.

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

The Support Roller Washer is an OEM part for Frigidaire dryers, designed to ensure the smooth and stable operation of the dryer drum. Positioned between the support roller and the shaft, this washer plays a critical role in reducing friction and wear, allowing the drum to rotate smoothly and quietly.

Causes of these symptoms often stem from normal wear and tear, which can lead to the degradation of the washer over time.

Symptoms of a bad Dryer Support Roller Washer include:

• Unusual noises, such as squeaking or grinding, indicating increased friction during drum rotation
• The dryer drum appears to wobble or is misaligned during operation
• Increased vibration of the dryer, which can lead to wear on other components

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Thermal Fuse is an OEM part for Frigidaire ovens and ranges. It acts as a safety device that cuts off power to the appliance if it overheats, preventing potential damage or fire hazards. This fuse ensures that the oven operates within safe temperature limits by shutting down the electrical circuit when necessary.

Causes of a bad thermal fuse can include prolonged exposure to high temperatures, electrical surges, or a malfunctioning oven component that causes overheating. These issues can compromise the integrity of the fuse, rendering it ineffective.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off unexpectedly during use
• No power to the oven

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
