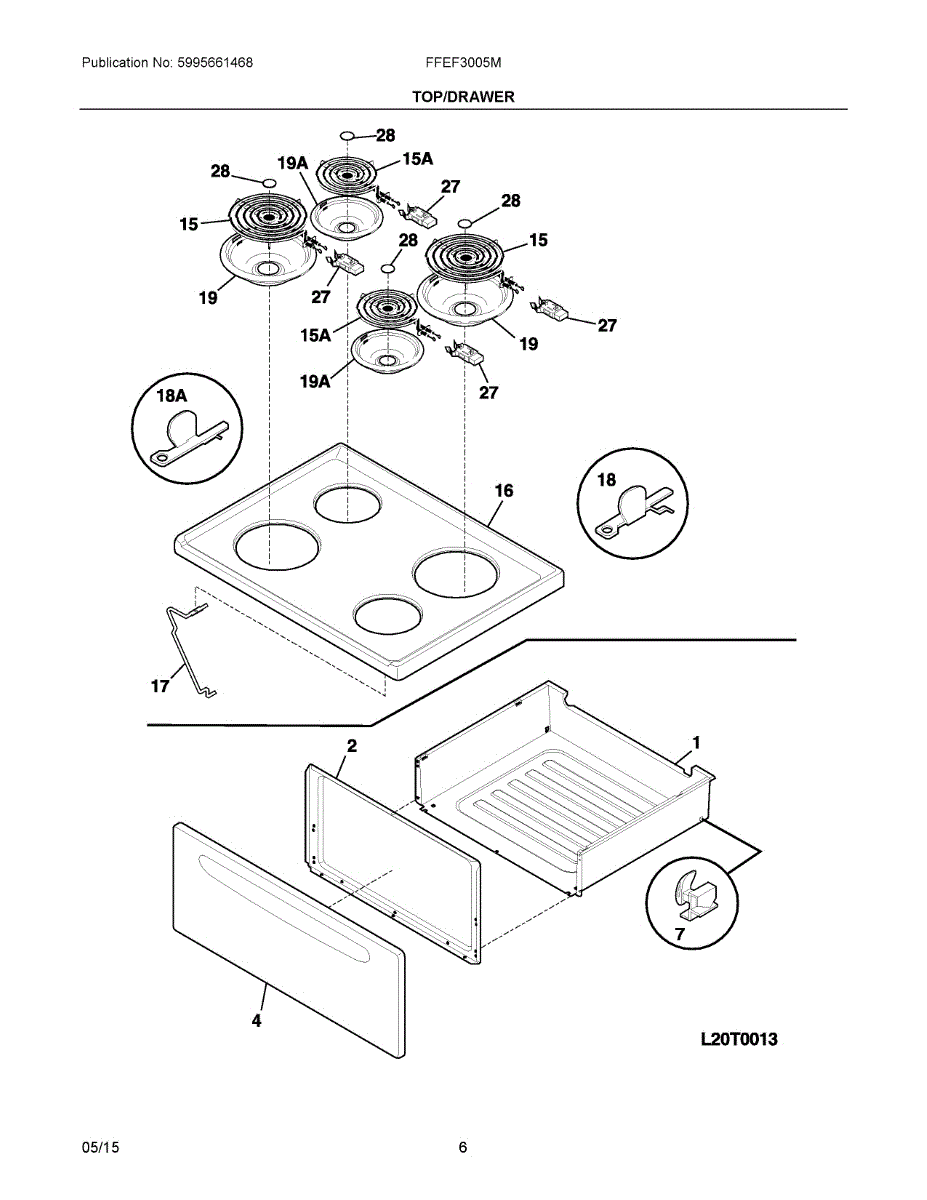

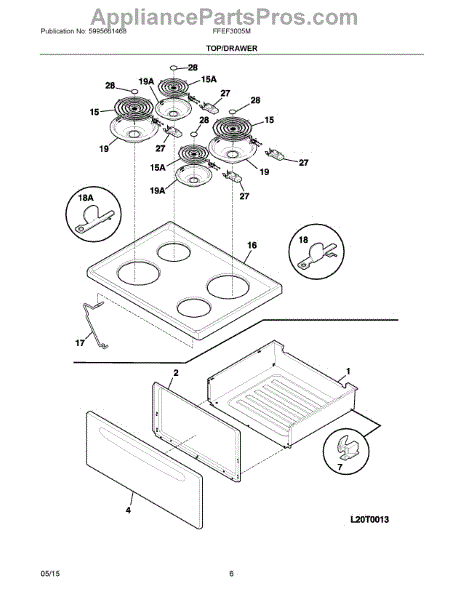

Parts for Electrolux FFEF3005MWC: 04 - Top / Drawer Parts

This lower drawer replaces a damaged or missing bottom drawer on your range, restoring smooth slide action and a flush, finished look so the lower compartment operates correctly and the appliance is complete again.

• Forms the pull-out compartment beneath the oven for convenient access
• Interfaces with the drawer slides to open and close smoothly
• Restores proper alignment and full closure at the base of the range
• Typical symptoms: drawer jams, falls off tracks, sits unevenly, or is bent/dented

• Disconnect power and shut off gas; allow the range to cool before servicing
• Pull the old drawer out and lift to disengage from the slides; transfer any reusable parts as needed
• Set the new drawer onto both slides evenly and test for smooth travel and full closure
• If the drawer doesn't seat flush, re-check slide engagement and appliance leveling

This interior refrigerator liner provides the finished, easy-to-clean surface for the fresh food compartment and helps support shelves and bins. It restores the cabinet interior to factory condition for proper fit and appearance. What it does:

• Replaces a cracked, warped, or stained interior cabinet surface.
• Provides a smooth, washable surface that helps keep food area sanitary.
• Supports mounted shelves, drawers, and trim pieces in the compartment.
• Restores proper alignment and sealing where the liner mates to refrigerator components.

• Disconnect power and remove all food and removable shelves/bins before starting.
• Typical installation requires removal of trim and fasteners; keep hardware accessible for reassembly.
• Handle carefully to avoid scratching the finished surface and to prevent injury from sharp edges.

The Rear Drawer Glide is an OEM part for Frigidaire ranges and ovens. This part is mounted on the rear end of the oven drawer, facilitating a smooth glide when the drawer is opened and closed. It ensures the stability and alignment of the drawer, preventing it from tilting or sticking during use.

Causes of a bad Rear Drawer Glide can include physical wear and tear from regular use, accidental damage, or degradation of the material over time. Regular inspection and maintenance can help identify issues early and extend the life of the glide.

Symptoms of a bad Rear Drawer Glide include:

• The oven drawer sticking or jamming when opened or closed
• The drawer sagging or not closing properly
• Unusual noises coming from the drawer due to misalignment
• Difficulty in smoothly operating the drawer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a vital component that provides the heat necessary for cooking. This element is designed to heat up quickly and maintain a consistent temperature, offering precise control to accommodate various cooking needs, from simmering sauces to boiling water. This element measures 8 inches.

Symptoms of a bad Coil Surface Element include:

• Element not heating up at all or only heating partially
• Inconsistent temperatures, making cooking unpredictable
• Visible damage or warping to the element
• Electrical sparking when turned on

Causes of a bad Coil Surface Element can include prolonged use leading to element burnout, a faulty connection between the element and the stove’s electrical source, or physical damage that disrupts the coil’s continuity.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Range Surface Element is an OEM replacement part for Frigidaire electric ranges. It is a crucial component that generates heat for cooking on the stovetop surface.

Symptoms of a bad range surface element include:

• Uneven or insufficient heating of cookware
• Element failing to heat up or taking an excessive amount of time to reach the desired temperature
• Visible signs of damage, such as cracks or warping on the element's surface
• Unusual smells or noises coming from the element during use

Causes of a bad surface element can range from electrical malfunctions to physical damage caused by impact or exposure to excessive heat over time.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Small Drip Pan is an OEM replacement part for Frigidaire ranges. The Frigidaire Small Drip Pan boasts a durable construction, made of high-quality materials to ensure long-lasting performance.

Over time, exposure to high heat, spills, and frequent cleaning can cause the drip pan to discolor, warp, or rust. A faulty drip pan can result in decreased efficiency and difficulty in maintaining a clean cooking area.

Symptoms of a bad Small Drip Pan include:

• Discoloration or rust
• Warping or misshaping
• Difficulty fitting properly beneath the burner
• Residual spills or drips reaching the burner area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Large Chrome Drip Pan is an OEM replacement part for Frigidaire cooktops, designed to fit beneath the burner elements. It is responsible for providing a clean surface and maintain cleanliness. The drip pan catches spills and drips that occur during cooking, preventing them from reaching the interior of the stove where they can become burnt-on and difficult to clean. This large chrome drip pan measures approximately 8 inches in diameter.

Causes of a bad drip pan can include frequent exposure to high heat, spills, and regular cleaning, which can lead to discoloration, warping, or rust over time. When the drip pan becomes damaged or worn out, it may no longer effectively catch spills or reflect heat, affecting both cleanliness and cooking performance.

Symptoms of a bad part include:

• Visible signs of damage, wear, rust, or corrosion on the drip pan
• Uneven stove element
• Difficulty cleaning spills and grease accumulating on the pan
• Unsightly appearance of the stove
• Difficulty cleaning the stove surface

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This wiring harness assembly routes power and signals between an appliance's control components, enabling coordinated operation. Replace a damaged harness to restore reliable electrical connections and eliminate intermittent or lost function. What it does:

• Links control board, switches and motors with factory-style wiring and connectors
• Restores power/signal paths that cause intermittent operation or no response
• Prevents shorts and opens caused by frayed wires or broken terminals
• Supports normal appliance functions when the original harness is damaged

• Disconnect power before attempting any service to avoid shock or damage
• Inspect connector ends and wire routing; match connectors to original locations
• Secure harness away from heat, moving parts and sharp edges to prevent wear

Size: 6-20 x 0.312 inch.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
