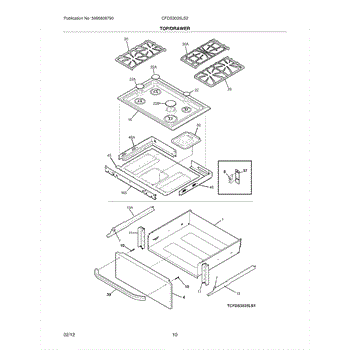

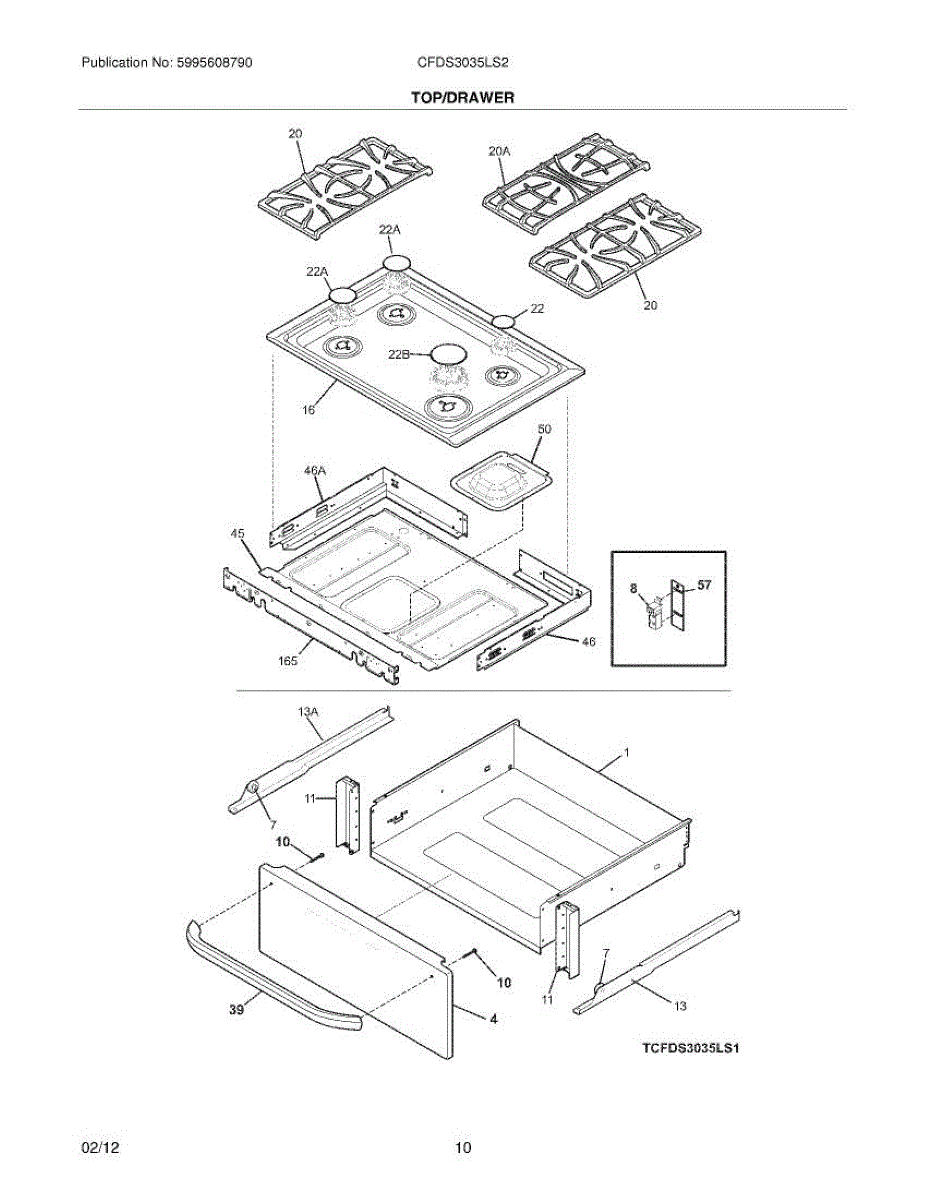

Parts for Frigidaire CFDS3035LS2: 09 - Top / Drawer Parts

This replacement drawer body restores a smooth-sliding storage bin in your appliance. Integrated rollers let the drawer glide on its tracks, keeping items organized and easy to access when the original is cracked, warped, or difficult to open.

• Forms the storage bin and supports items within the compartment
• Built-in rollers enable smooth travel along the drawer rails/tracks
• Helps resolve sticking, popping off track, rough movement, or broken tabs
• Restores proper fit and slide action for everyday use

• Empty and remove the damaged drawer; transfer any reusable front trim or inserts from the old drawer if needed
• Clean and inspect the rails/tracks; align the rollers with the track openings and slide in level until fully seated
• Do not force the drawer—re-align if resistance is felt to avoid damaging tabs or rails
• Avoid lubricants; wipe tracks and rollers with mild soap and water only

This drum roller supports the dryer drum and helps it turn smoothly, reducing friction and noise. Replacing a worn roller restores quieter operation and helps prevent drum wobble and uneven tumbling. What it does:

• Supports the rotating drum so it spins freely and evenly.
• Reduces squeaks, grinding noises and excessive vibration from a worn wheel.
• Helps prevent drum wobble that can lead to uneven drying or wear on other components.
• Works with the drum shaft/bearing system to maintain proper drum alignment.

• Disconnect power (and gas, if applicable) before starting any service.
• Remove the dryer drum to access and replace the roller—follow your model's service manual or OEM instructions.
• Inspect adjacent rollers, bearings and the shaft for wear while the drum is removed.

The Spark Module is an OEM part for Frigidaire ranges and cooktops, designed to generate and control the ignition spark for the burners. This component ensures that each burner lights reliably and safely when the control knob is turned to the ignite position. By producing a high-voltage electrical spark, the spark module ignites the gas released by the burner, allowing for the cooking process to begin. It's a key part of the appliance's operation, ensuring both performance and safety.

The causes behind these issues can often be traced back to a malfunction within the spark module itself, which may result from normal wear and tear, moisture exposure, or electrical surges. A faulty spark module can lead to inefficient burner operation, potentially causing gas leaks or preventing the appliance from being used for cooking.

Symptoms of a failing Spark Module include:

• Burners not igniting when the control knob is turned
• Intermittent ignition or failure to maintain a flame
• Continuous sparking when the burner is on or off

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This is a replacement mounting screw used to secure panels and components in compatible Frigidaire appliances. It restores proper fit and helps prevent rattles, loose panels, and parts that shift during operation. What it does:

• Fastens trim, panels, brackets, or controls to the appliance frame
• Restores secure attachment to reduce vibration, noise, and movement
• Replaces stripped, missing, or corroded screws that prevent proper assembly
• Works wherever the OEM screw with this part number is specified

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging parts
• Keep removed hardware organized and compare parts to the old screw for correct fit

This Main Top Assembly replaces the cooktop surface and restores a flat, secure area for burners and cookware. It protects internal components and helps ensure burners sit correctly for safe cooking. What it does:

• Covers and protects internal burner components and control openings
• Provides a stable, heat-resistant surface for pots and pans
• Helps maintain proper burner alignment and ignition reliability
• Addresses symptoms like a cracked, warped, or damaged cooktop surface that interferes with burner placement

• Main Top Assembly (1)

• Disconnect electrical power (and gas supply for gas ranges) before starting service
• Handle porcelain or painted surfaces carefully to avoid chipping; use padding on a work surface
• Installation typically requires removing burner grates and securing fasteners; keep hardware organized

The Range Cap is an OEM part for Frigidaire ranges. It seals the upper combustion chamber to contain heat from the oven burners. A tight-fitting cap is critical for efficient, safe oven performance.  This cap measures 3 inches in diameter.

Causes of a bad cap can include cracks, warping, or collapsed seals from prolonged exposure to high oven temperatures. Accidental damage during past maintenance is also possible.

Symptoms of a bad cap include:

• Escaping heat from the oven chamber, reducing efficiency
• Flames or sparks visible around the cap during baking
• Loose, wobbly, or missing cap allowing grease and debris in the combustion area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Burner Cap is an OEM part for Frigidaire cooktops and ranges. It is designed to cover the burner head, ensuring an even distribution of the flame for efficient cooking. The burner cap also protects the burner head from spills and debris, which can affect performance.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high heat, buildup of food residue, or accidental impacts. A compromised burner cap can lead to uneven flames, inefficient cooking, or difficulty in lighting the burner.

Symptoms of a bad burner cap include:

• Uneven or yellow flames
• Difficulty in igniting the burner
• The burner cap being cracked, chipped, or discolored
• Poor cooking performance or hotspots on cookware

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Surface Burner Cap is an OEM part for Frigidaire gas ranges. It sits atop the surface burner and helps to distribute the gas flame evenly for consistent cooking performance. The cap also protects the burner head from spills and debris.

You should replace this surface burner cap if it becomes damaged or worn out. Signs of damage include chipping, cracking, or discoloration due to prolonged exposure to high temperatures or cleaning agents.

Symptoms of a bad surface burner cap include:

• Uneven or unstable flame
• Difficulty in igniting the burner
• Visible cracks or chips on the cap
• Food cooking unevenly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the stainless steel oven door handle. It lets you safely open and close the oven door and restores a secure, finished look when the original handle is broken, loose, or missing.

• Provides a sturdy grip to operate the oven door
• Helps ensure the door opens/closes smoothly
• Common failure signs: loose handle, broken end caps/mounts, missing or damaged handle
• Cosmetic refresh for a worn or scratched handle

• Disconnect power and allow the oven to cool completely before servicing
• Remove interior door screws to access the handle mounts
• Support the door glass to prevent stress while removing/installing hardware
• Reuse existing screws and trim/end caps or replace them if worn or damaged

Specs: 8 - 18 x 0.500

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

The Support Roller Washer is an OEM part for Frigidaire dryers, designed to ensure the smooth and stable operation of the dryer drum. Positioned between the support roller and the shaft, this washer plays a critical role in reducing friction and wear, allowing the drum to rotate smoothly and quietly.

Causes of these symptoms often stem from normal wear and tear, which can lead to the degradation of the washer over time.

Symptoms of a bad Dryer Support Roller Washer include:

• Unusual noises, such as squeaking or grinding, indicating increased friction during drum rotation
• The dryer drum appears to wobble or is misaligned during operation
• Increased vibration of the dryer, which can lead to wear on other components

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
