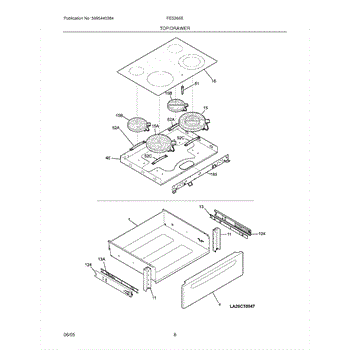

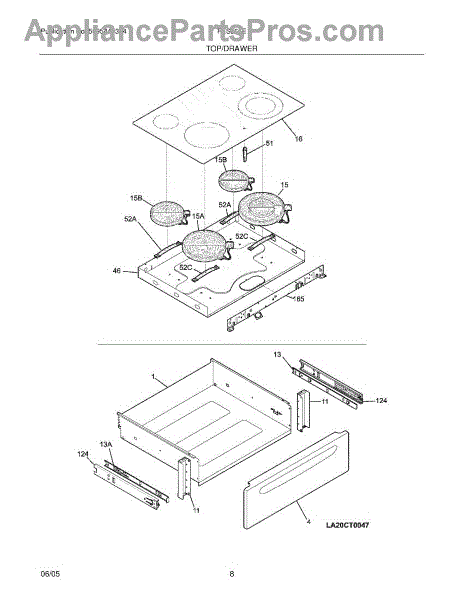

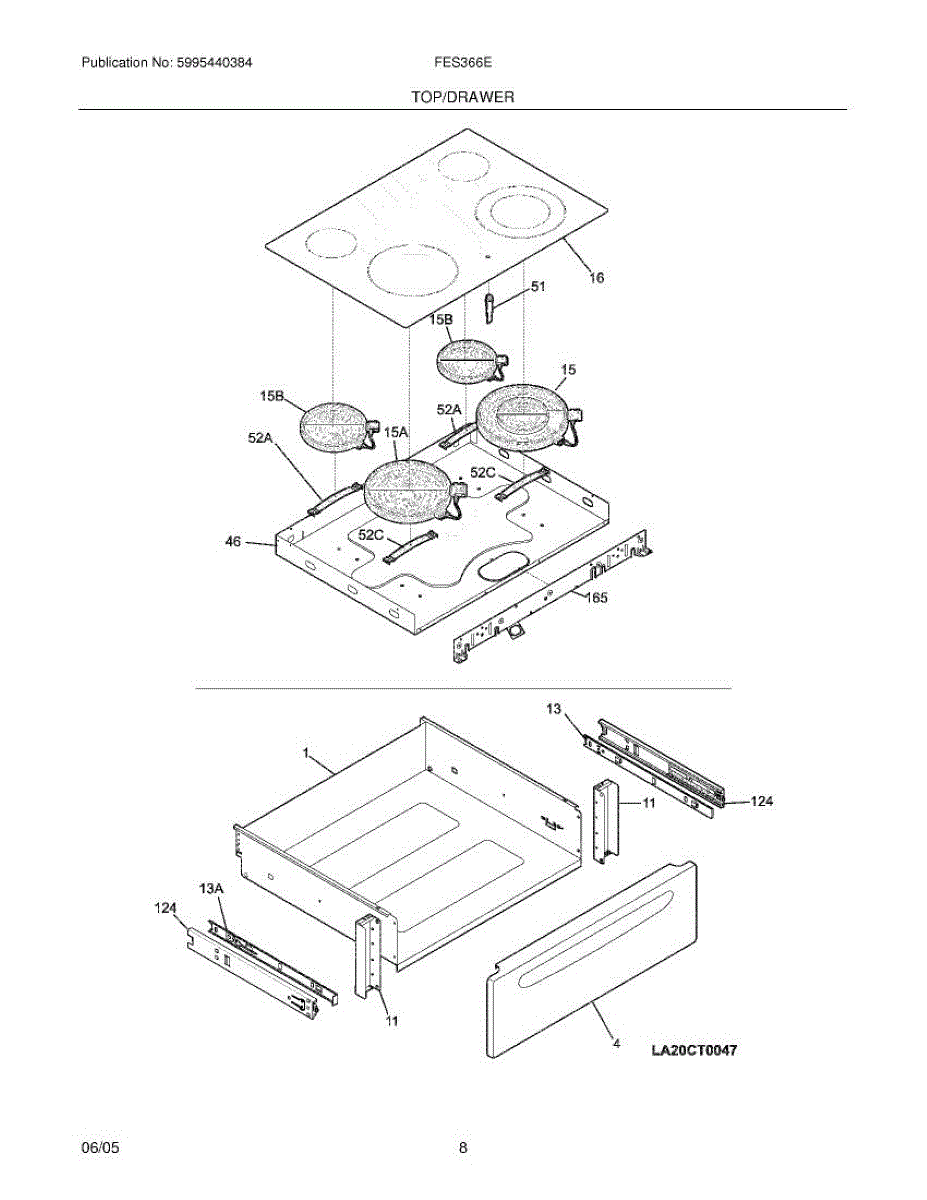

Parts for Frigidaire FES366EQA: 07 - Top / Drawer Parts

This glide is a low-friction slide used in select cooking appliances to support and guide a moving component, such as a lower drawer. Replacing a worn or broken glide restores smooth travel and proper alignment without sticking or scraping.

• Provides a smooth sliding surface for the mating part
• Helps keep the component aligned as it opens and closes
• Reduces friction and wear during movement
• Failure symptoms include sticking, scraping noises, uneven travel, or the component coming off track

• Disconnect power and allow the appliance to cool before servicing
• Remove the sliding component (e.g., drawer) to access the glide
• Remove the damaged glide and install the new one, transferring any screws or clips as needed
• Reinstall and test to ensure smooth, even movement

This glide is the low-friction slide piece used in select Frigidaire ranges and wall ovens to support a moving component. Replacing a worn glide restores smooth in-and-out movement, reduces binding, and helps prevent premature wear on mating rails. What it does:

• Provides a smooth, low-friction surface for a sliding drawer or rack
• Helps keep the component aligned on its track to avoid binding
• Reduces sticking and scraping noises during operation
• Common symptoms: hard-to-open/close movement, uneven travel, wobbling, or a visibly cracked/missing glide

• One glide

• Disconnect power and allow the appliance to cool before servicing
• Remove the drawer or rack to access the glide location
• Release screws or tabs securing the old glide; transfer any reusable hardware
• Install the new glide, and test for smooth travel

6 inch, 1200 watt single radiant surface element.

This replacement surface element restores proper heating on a 6-inch burner, so you can cook evenly and bring pans up to temperature as expected.

• Heats cookware on a 6-inch cooktop position
• Common failure signs: burner won't heat, heats intermittently, or trips off under load
• Restores consistent, controllable surface heat
• Direct fit for the designated element location

• Disconnect power before servicing
• Allow the cooktop to cool fully before handling
• Lift/remove the old element carefully to avoid damaging terminals or receptacle
• Inspect and replace the element receptacle as needed

Indicator light replaces the control-panel lamp that signals power or active functions, restoring visible status feedback for safer, more confident operation. Use this when the original lamp is dim, cracked, or fails to illuminate. What it does:

• Provides visible indication of power, cycle status, or selected functions on the appliance control panel.
• Restores clear status feedback when the original lamp is burned out or flickering.
• Helps troubleshoot whether a control or circuit is receiving power by showing when the indicator should be lit.
• Improves usability so settings and operating states are easy to confirm at a glance.

• Disconnect power to the appliance (unplug or turn off the breaker) before beginning work.
• Access may require removing the control panel or console.
• Handle the lamp carefully and avoid touching bulb surfaces; use gloves to prevent oil transfer.
• After installation, restore power and verify the indicator lights as expected; if it still does not light, further electrical diagnosis may be needed.

Used on the 1200 watt element

Used on the 2500 watt element

Note: Due to a factory change, the new glide may be shorter than your original. Per Factory: The original part was 19.75". The new part is 16.25" and will install and function the same.

Specs: 8 - 18 x 0.500

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
