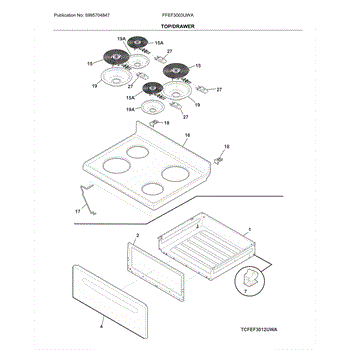

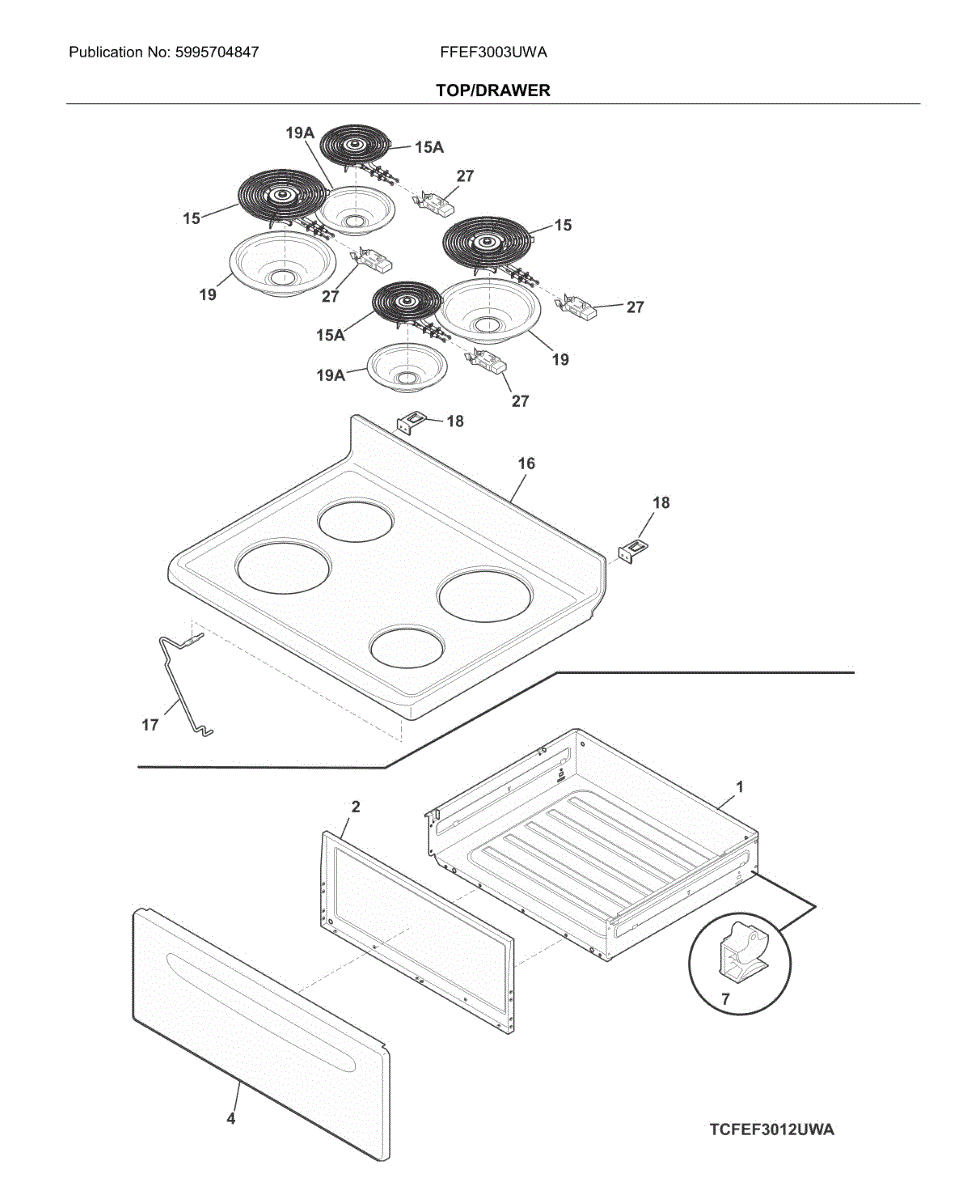

Parts for Frigidaire FFEF3003UWA: Top / Drawer Parts

Replaces a damaged, cracked, or missing bottom drawer on your range. Restores smooth slide action and a flush, finished look to the storage compartment.

This is an interior liner panel designed to fit inside the storage drawer beneath the range oven cavity. It provides a smooth, finished surface that protects the drawer interior and makes cleanup easier. Replace this liner if it is warped, cracked, rusted, or damaged from heat exposure.

Rear glide attaches to the back of your range storage drawer, allowing smooth sliding motion. Replace if broken, cracked, or missing to prevent drawer tilt.

This is a 6-inch coil surface heating element designed for use on an electric range cooktop. It provides heat for smaller burners on the stovetop surface. Replace this element if the burner no longer heats up, heats unevenly, or has visible damage such as blistering, pitting, or burn-through spots.

Element not heating? This surface element is the most common fix. Compatible with Frigidaire electric ranges. Tests between 15-45 ohms resistance.

This is a metal hinge bracket that secures the main cooktop to the range frame and allows it to be lifted for access to components underneath. It connects the cooktop panel to the body of the range at the hinge point. Replace this bracket if it is bent, broken, or missing, which can cause the main top to sit unevenly or not stay properly secured.

Replaces damaged or corroded 6-inch drip pan beneath your electric range stovetop element. Catches spills and debris. Install when original is rusted or worn.

Replacement drip pan installs below range surface burners to catch spills. Replace if rusted, discolored, scorched, or coated with buildup that won't clean.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Size: 6-20 x 0.312 inch.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
