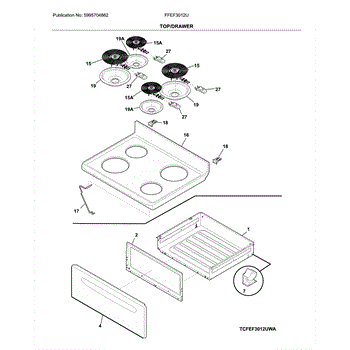

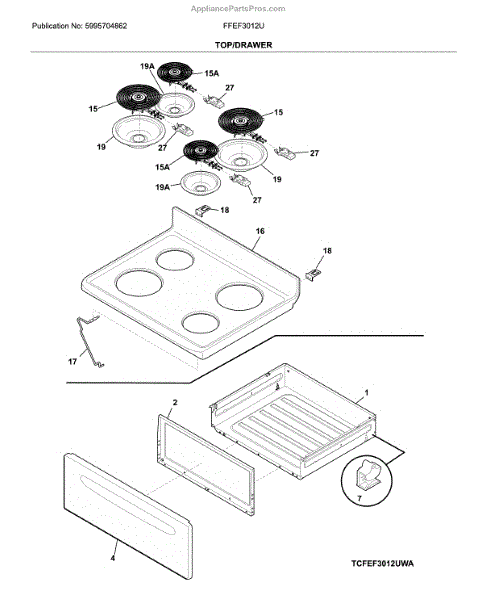

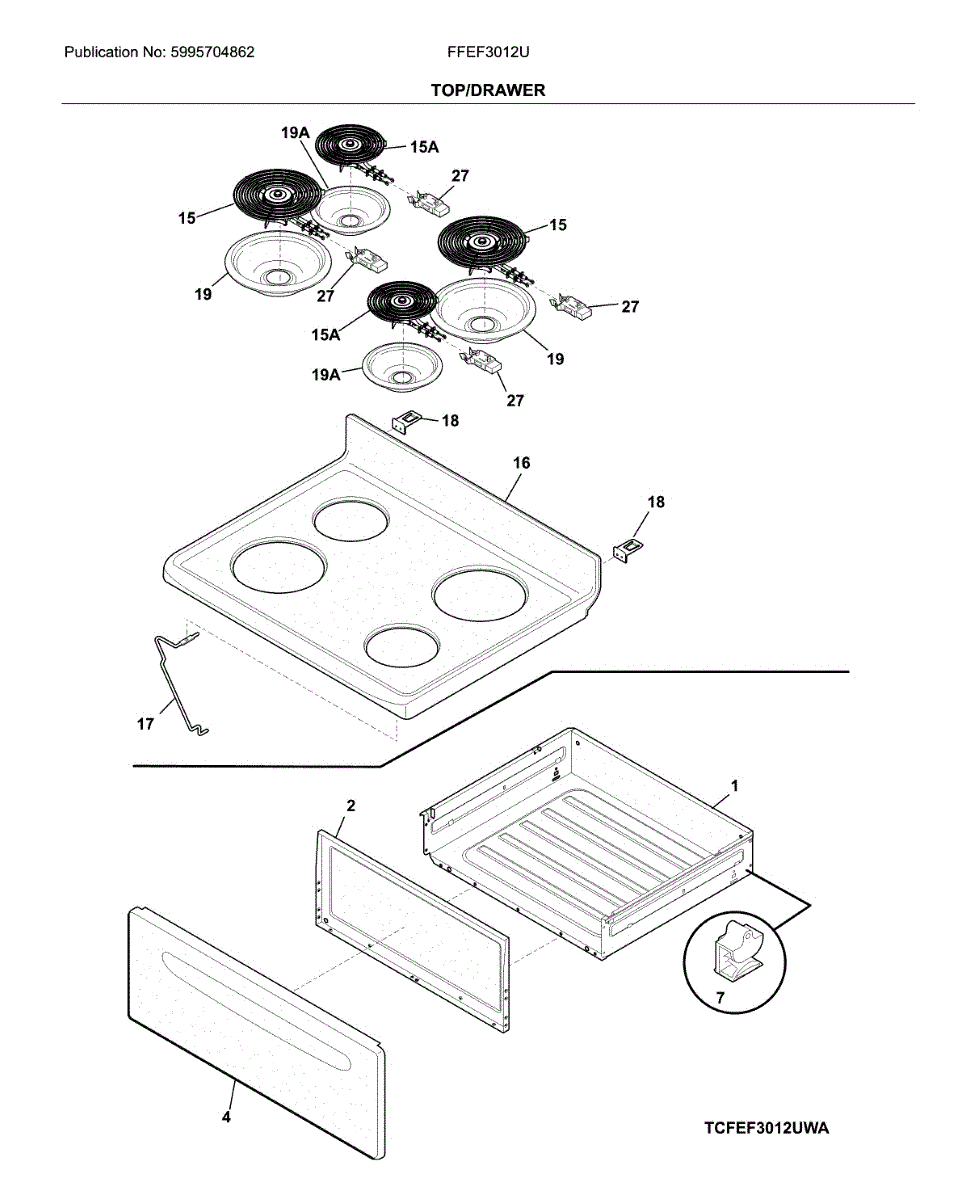

Parts for Frigidaire FFEF3012UBA: Top / Drawer Parts

This lower drawer replaces a damaged or missing bottom drawer on your range, restoring smooth slide action and a flush, finished look so the lower compartment operates correctly and the appliance is complete again.

• Forms the pull-out compartment beneath the oven for convenient access
• Interfaces with the drawer slides to open and close smoothly
• Restores proper alignment and full closure at the base of the range
• Typical symptoms: drawer jams, falls off tracks, sits unevenly, or is bent/dented

• Disconnect power and shut off gas; allow the range to cool before servicing
• Pull the old drawer out and lift to disengage from the slides; transfer any reusable parts as needed
• Set the new drawer onto both slides evenly and test for smooth travel and full closure
• If the drawer doesn't seat flush, re-check slide engagement and appliance leveling

This interior refrigerator liner provides the finished, easy-to-clean surface for the fresh food compartment and helps support shelves and bins. It restores the cabinet interior to factory condition for proper fit and appearance. What it does:

• Replaces a cracked, warped, or stained interior cabinet surface.
• Provides a smooth, washable surface that helps keep food area sanitary.
• Supports mounted shelves, drawers, and trim pieces in the compartment.
• Restores proper alignment and sealing where the liner mates to refrigerator components.

• Disconnect power and remove all food and removable shelves/bins before starting.
• Typical installation requires removal of trim and fasteners; keep hardware accessible for reassembly.
• Handle carefully to avoid scratching the finished surface and to prevent injury from sharp edges.

The Rear Drawer Glide is an OEM part for Frigidaire ranges and ovens. This part is mounted on the rear end of the oven drawer, facilitating a smooth glide when the drawer is opened and closed. It ensures the stability and alignment of the drawer, preventing it from tilting or sticking during use.

Causes of a bad Rear Drawer Glide can include physical wear and tear from regular use, accidental damage, or degradation of the material over time. Regular inspection and maintenance can help identify issues early and extend the life of the glide.

Symptoms of a bad Rear Drawer Glide include:

• The oven drawer sticking or jamming when opened or closed
• The drawer sagging or not closing properly
• Unusual noises coming from the drawer due to misalignment
• Difficulty in smoothly operating the drawer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement heating element restores the heat your appliance needs to cook reliably. Swap in a fresh element to bring back consistent temperatures and dependable performance when the original has failed or become damaged.

• Converts electrical energy into heat for the appliance's cooking system
• Typical symptoms of a failed element: no heat, slow or uneven heating, visible blistering/cracks, or tripping the circuit breaker
• An open (no continuity) element will prevent the affected oven or surface zone from reaching set temperature
• Designed to fit specific models; match by model/part number for proper application

• Disconnect power at the breaker before servicing; elements run on high voltage
• Take a photo and move wires one at a time to the new element; ensure terminals are fully seated
• Handle the element carefully—do not bend, kink, or stress terminals
• Reuse existing mounting screws/brackets as applicable; verify no wires contact metal before restoring power

The Surface Element is an OEM part for Frigidaire electric ranges. As the key heating component on the cooktop, the surface element produces heat through resistance when electrical current flows through it.

Causes can be normal wear over time exposed to heat cycles, damaged or degraded internal components, corrosion of terminals or wires, or surface damage from improper cleaning.

Symptoms of a bad surface element include:

• Slow or uneven heating
• Burning or scorching of cookware easily
• Element that will not heat at all or only reaches low temperatures
• Frayed, cracked, or broken wiring at the element terminal

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This main top is the upper cooktop panel that provides a finished surface and supports burners and controls on compatible ranges. It restores a flat, secure cooktop surface and helps keep burners and components properly aligned. What it does:

• Replaces a dented, warped or corroded cooktop surface so burners and grates sit flat
• Provides mounting and alignment for surface burners, burner bowls and control openings
• Covers and protects internal components from spills and debris
• Improves appearance by restoring a clean, even top surface
• Can reduce rattling or misalignment caused by a damaged top

• One main top

• Disconnect power (and gas, if applicable) before starting any repair
• Remove grates, burner caps and any trim to access mounting screws—keep all hardware for reassembly
• Align the top, secure mounting screws, then reinstall burner parts and controls; check burners for proper seating

Main top replaces the cooktop surface on select ranges, restoring a flat, secure surface for burners and controls. It improves appearance and supports proper burner alignment for safer, more reliable cooking. What it does:

• Provides the primary cooktop surface and mounting for surface burners and elements.
• Restores a flat, undamaged surface when the original top is dented, warped, cracked, or cosmetically damaged.
• Secures burner assemblies and helps prevent burner wobble or misalignment.
• Improves cleanability and overall appearance of the cooktop area.

• Disconnect power (and gas supply for gas ranges) before beginning service.
• Remove burner grates, surface elements, and any trim; retain original hardware for reassembly.
• Large parts may require two people to position; use basic hand tools and follow model-specific service instructions.
• Verify burner alignment and function before completing reassembly.

Main top support rod.

A replacement hinge bracket that secures and aligns the refrigerator door, restoring proper pivot and fit for smooth opening and closing. Install this bracket to correct sagging or misaligned doors and improve door seal performance. What it does

• Secures the door hinge to the cabinet and supports door weight — use when the door droops or hangs unevenly.
• Maintains pivot alignment so the door opens and closes smoothly without binding.
• Helps keep the door gasket aligned for a tighter seal; can reduce uneven gaps and cold-air loss.
• Replaces bent, cracked, or worn hinge-mounting points that cause noise or instability.

• One hinge bracket.

• Disconnect power to the appliance before starting work and remove or support the door to prevent injury.
• Support the door while removing and installing the bracket; a second person may be needed for large doors.
• Reuse existing hinge hardware if undamaged; replace fasteners if stripped or missing.
• After installation, check door alignment and adjust hinge position as needed for a proper seal.

The 6-inch Drip Pan is an OEM part for Frigidaire ranges. This drip pan sits beneath the heating element on the stovetop, catching spills, drips, and food debris that occur during cooking.

Causes of a bad drip pan can include corrosion from prolonged exposure to moisture, heat damage from the heating elements, or physical damage from heavy cookware.

Symptoms of a bad drip pan include:

• Rust or corrosion on the pan's surface
• Warping or bending of the pan
• Difficulty in cleaning due to burnt-on residue
• Visible holes or damage that allows spills to reach the underlying surface

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The 8-Inch Drip Pan is an OEM replacement part for Frigidaire ranges. It is positioned below cooktop burners to catch drips and spills on the cooking surface.

Causes of a faulty drip pan include scorching or discoloration from prolonged high heat exposure. Mineral buildup over time can inhibit drainage.

Symptoms consist of:

• Excess moisture near surface elements or controls
• Grease residues left on cooktop after cleaning
• Premature corrosion underneath the range top
• Electrical issues tripped by liquid contact

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replacement wiring harness that connects control electronics to internal components, restoring proper electrical connections and reliable operation. Use when factory wiring is damaged, loose, or causing intermittent component failures. What it does:

• Routes power and signal between the appliance control board and internal components.
• Restores continuity when broken, frayed, or corroded wires cause intermittent or no operation.
• Can resolve symptoms such as non-responsive controls, lights or fans not running, or intermittent component operation.
• Keeps wiring neat and secured along original routing to prevent rubbing and stress.

• Always disconnect power (unplug or shut off breaker) before starting any repair.
• Match connector shapes and pin counts; route harness along original clips and pathways to avoid pinch points.
• Inspect mating connectors and terminals for damage or corrosion before reconnecting.

This truss-head machine screw secures a switch to its mounting bracket or panel. Replacing a worn or missing screw restores a solid, aligned switch fit for reliable operation.

• Fastens the switch body to a bracket or chassis panel
• Helps keep the switch aligned for consistent actuation
• Replaces stripped, corroded, or missing mounting hardware
• Common symptoms: loose or wobbly switch, misalignment, rattling or vibration around the switch area

• Disconnect power to the appliance before servicing
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Verify thread size and length match the original hardware
• If multiple screws secure the switch, replace them in a consistent pattern to maintain alignment

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and keep parts aligned for safe, reliable operation. What it does:

• Secures panels, brackets, and trim to prevent rattling or loosening
• Restores proper fit where a damaged or missing screw caused gaps or movement
• Helps maintain component alignment for smooth operation
• Simple hardware replacement that supports overall appliance stability

• Disconnect power and gas before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Keep small parts away from children and dispose of old fasteners responsibly

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal

Size: 6-20 x 0.312 inch.

Replacement screw that secures panels, trim and internal components in compatible appliances. Restores proper fit and helps reduce rattling or loose parts when the original fastener is missing, worn, or damaged. What it does:

• Fastens panels, brackets, trim pieces and small component assemblies to the appliance frame
• Helps eliminate noise and vibration caused by loose or missing fasteners
• Replaces stripped, corroded or missing screws to restore secure mounting
• Matches OEM fit when the identical screw is required for proper alignment

• Disconnect power to the appliance before starting any repair
• Use the correct driver size to avoid cam-out or damage to the screw head
• Do not overtighten; overtightening can strip threads or crack plastic parts

Size: 8-32t x 0.500 inch. Color: Black.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
