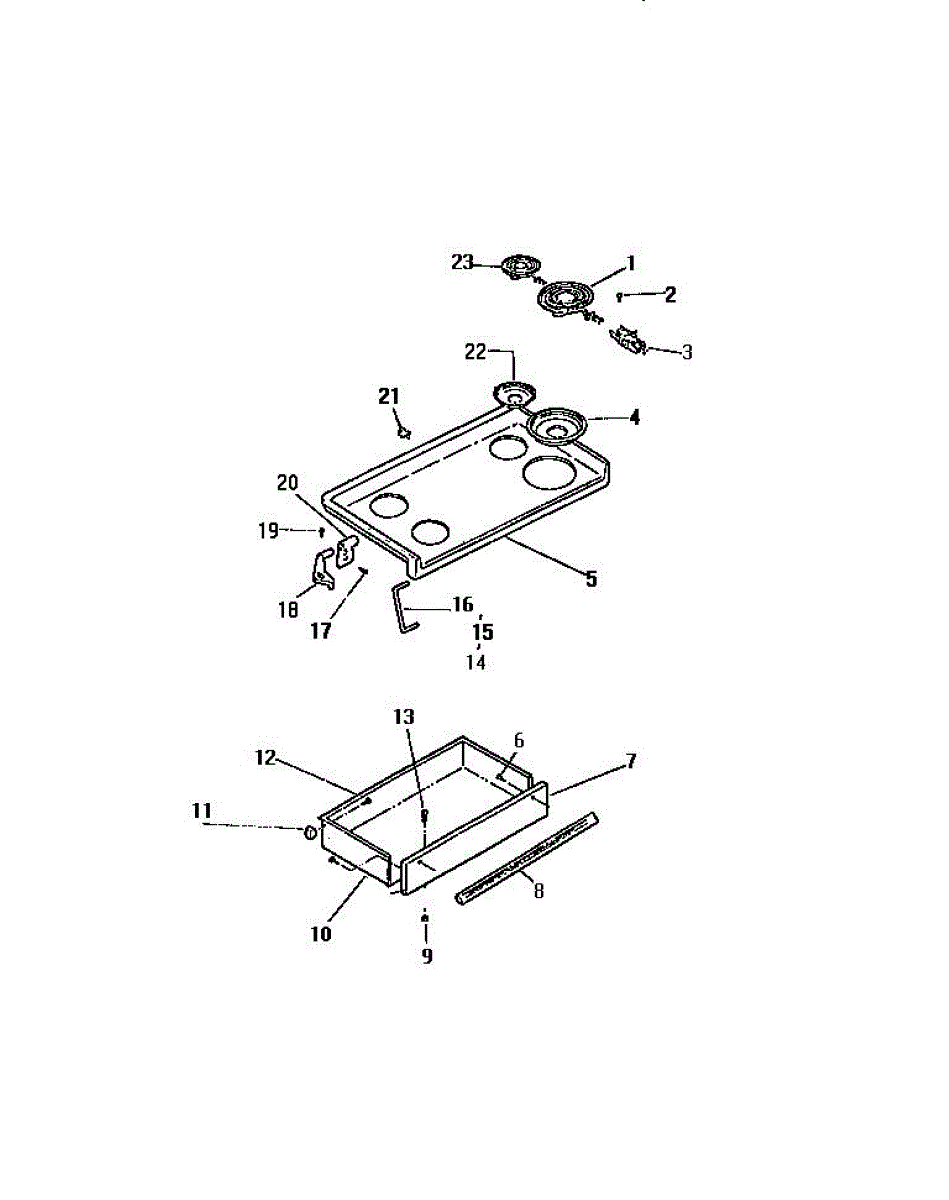

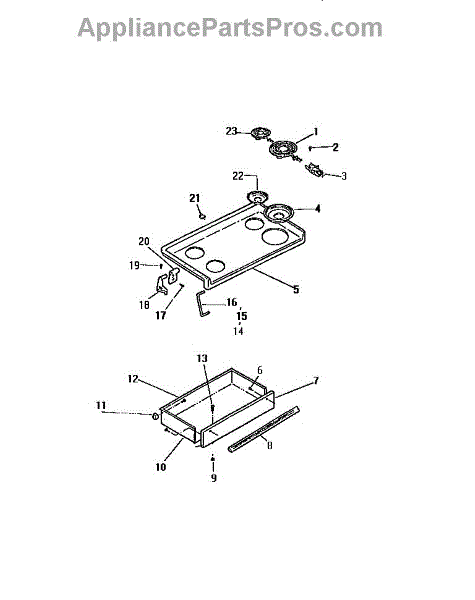

Parts for Frigidaire REP302CD1: 03 - Top / Drawer Parts

This is the large surface heating unit for an electric range or cooktop. Replacing a failing unit restores consistent stovetop heat so cookware warms predictably and meals cook evenly.

• Provides the heat source for the large burner position on an electric cooktop
• Converts electrical energy into controlled cooking heat
• Replace if the burner won't heat, heats intermittently or unevenly, or shows visible breaks, blistering, or burn spots
• Loose, pitted, or discolored terminals can also indicate the unit is failing

• Disconnect power to the appliance before servicing and allow all components to cool completely
• If your model uses plug-in coils: lift slightly and pull the old unit straight out of the receptacle; align and push the new unit straight in until fully seated
• Inspect the burner receptacle for heat damage before reassembly
• Restore power and test operation on low and high settings

Size: 6-20 x 0.312 inch.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

The Large Chrome Drip Pan is an OEM replacement part for Frigidaire cooktops, designed to fit beneath the burner elements. It is responsible for providing a clean surface and maintain cleanliness. The drip pan catches spills and drips that occur during cooking, preventing them from reaching the interior of the stove where they can become burnt-on and difficult to clean. This large chrome drip pan measures approximately 8 inches in diameter.

Causes of a bad drip pan can include frequent exposure to high heat, spills, and regular cleaning, which can lead to discoloration, warping, or rust over time. When the drip pan becomes damaged or worn out, it may no longer effectively catch spills or reflect heat, affecting both cleanliness and cooking performance.

Symptoms of a bad part include:

• Visible signs of damage, wear, rust, or corrosion on the drip pan
• Uneven stove element
• Difficulty cleaning spills and grease accumulating on the pan
• Unsightly appearance of the stove
• Difficulty cleaning the stove surface

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This part has been discontinued by the manufacturer and is no longer available.

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This left hinge pin secures and guides a refrigerator door's pivot at the hinge assembly, restoring proper alignment and smooth opening. Use it to stop door sag, eliminate catching, and help the seal close evenly. What it does:

• Fits into the left hinge assembly to act as the pivot point for the door
• Keeps the door aligned so it opens and closes smoothly
• Prevents door sag and rubbing that can cause gaps or uneven sealing
• Common symptoms this part helps with: door won't stay closed, door leans or drags, noisy or stiff hinge movement

• One left-side hinge pin

• Support the door before removing hinge fasteners to prevent injury or damage
• Remove items from the door and, if present, disconnect any electrical connectors on the door first
• Use proper tools and keep track of hinge screws/washers during reassembly

This is a 10-24 x 1/2 inch machine screw used to secure temperature probes, thermistor brackets, shields and drawer/box components. It provides a simple, reliable fastener for small appliance assemblies. What it does:

• Secures probe or thermistor brackets to the appliance chassis or housing
• Holds shielding or small drawer/box parts in place to prevent movement or rattling
• Helps maintain correct sensor positioning so temperature readings stay stable
• Common replacement when a stripped, corroded, or missing screw causes loose parts or vibration

• One 10-24 x 1/2 in. screw

• Use the matching 10-24 threaded hole; avoid over-tightening to prevent stripping or cracking nearby plastic
• If replacing a corroded screw, inspect mating threads and components for damage before reuse
• Turn off and unplug the appliance or disconnect power before accessing internal components

This Small Drip Pan is an OEM replacement part for Frigidaire ranges. The Frigidaire Small Drip Pan boasts a durable construction, made of high-quality materials to ensure long-lasting performance.

Over time, exposure to high heat, spills, and frequent cleaning can cause the drip pan to discolor, warp, or rust. A faulty drip pan can result in decreased efficiency and difficulty in maintaining a clean cooking area.

Symptoms of a bad Small Drip Pan include:

• Discoloration or rust
• Warping or misshaping
• Difficulty fitting properly beneath the burner
• Residual spills or drips reaching the burner area

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a vital component that provides the heat necessary for cooking. This element is designed to heat up quickly and maintain a consistent temperature, offering precise control to accommodate various cooking needs, from simmering sauces to boiling water. This element measures 8 inches.

Symptoms of a bad Coil Surface Element include:

• Element not heating up at all or only heating partially
• Inconsistent temperatures, making cooking unpredictable
• Visible damage or warping to the element
• Electrical sparking when turned on

Causes of a bad Coil Surface Element can include prolonged use leading to element burnout, a faulty connection between the element and the stove’s electrical source, or physical damage that disrupts the coil’s continuity.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
