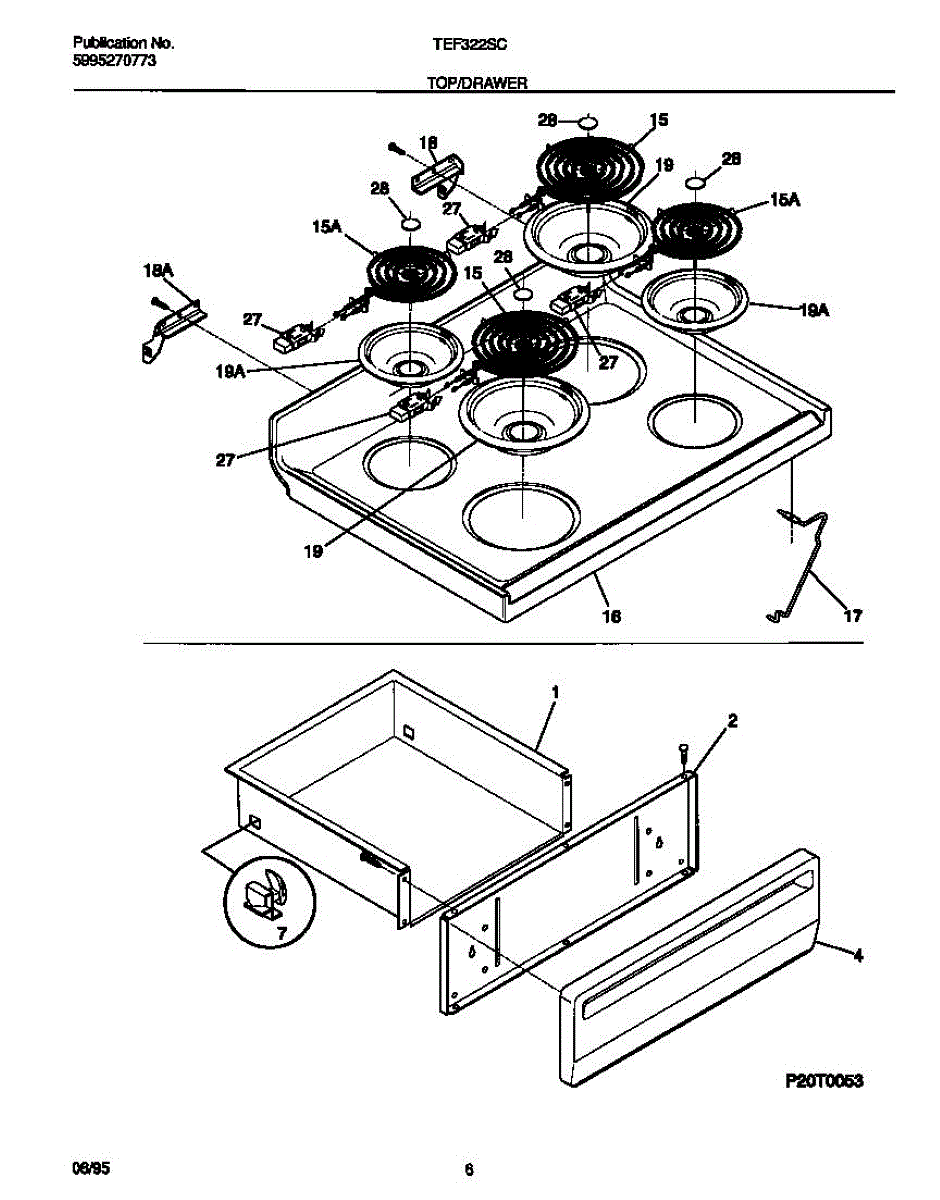

Parts for Frigidaire TEF322SCDA: 04 - Top / Drawer Parts

Rear drawer glide for range storage drawers. Mounts to the back of the drawer to enable smooth sliding. Replace if broken, cracked, or missing.

This is the large surface heating unit for an electric range or cooktop. Replacing a failing unit restores consistent stovetop heat so cookware warms predictably and meals cook evenly.

• Provides the heat source for the large burner position on an electric cooktop
• Converts electrical energy into controlled cooking heat
• Replace if the burner won't heat, heats intermittently or unevenly, or shows visible breaks, blistering, or burn spots
• Loose, pitted, or discolored terminals can also indicate the unit is failing

• Disconnect power to the appliance before servicing and allow all components to cool completely
• If your model uses plug-in coils: lift slightly and pull the old unit straight out of the receptacle; align and push the new unit straight in until fully seated
• Inspect the burner receptacle for heat damage before reassembly
• Restore power and test operation on low and high settings

If your burner isn't heating evenly or won't heat at all, this 6-inch coil element typically solves the problem. Simple plug-in replacement. Video guide.

Main top support rod for electric ranges. Replacement needed when original rod is broken, bent, or damaged. Installs to provide structural support.

Replacement 6-inch chrome drip pan for electric range cooktops. Catches spills and protects your stovetop. Replace if rusted, cracked, or worn out.

Chrome drip pan installs beneath range burner elements to catch spills and drips. Replaces cracked, rusted, or worn pans for a clean cooktop appearance.

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

This is a black surface burner cap that sits on top of the burner base to distribute the flame evenly across the cookware. It covers the center of the burner assembly and helps produce a uniform ring of flame. Replace this cap if it is cracked, chipped, warped, or if you notice uneven flame patterns during cooking.

Size: 8-18ab x 0.5 inch.

Push-in plug button that covers openings in the oven bottom panel. Replace if cracked, missing, or broken to keep debris out and maintain a clean finish.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Specs: 8 - 18 x 0.500

Size: 10-32 x 0.312 inch. Color: Black.

Size: 8-32t x 0.500 inch. Color: Black.
