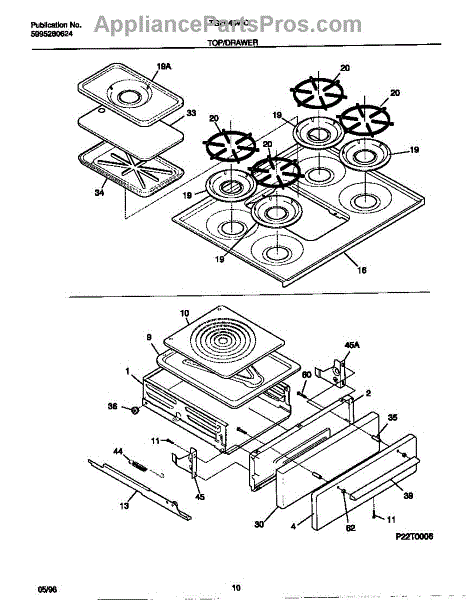

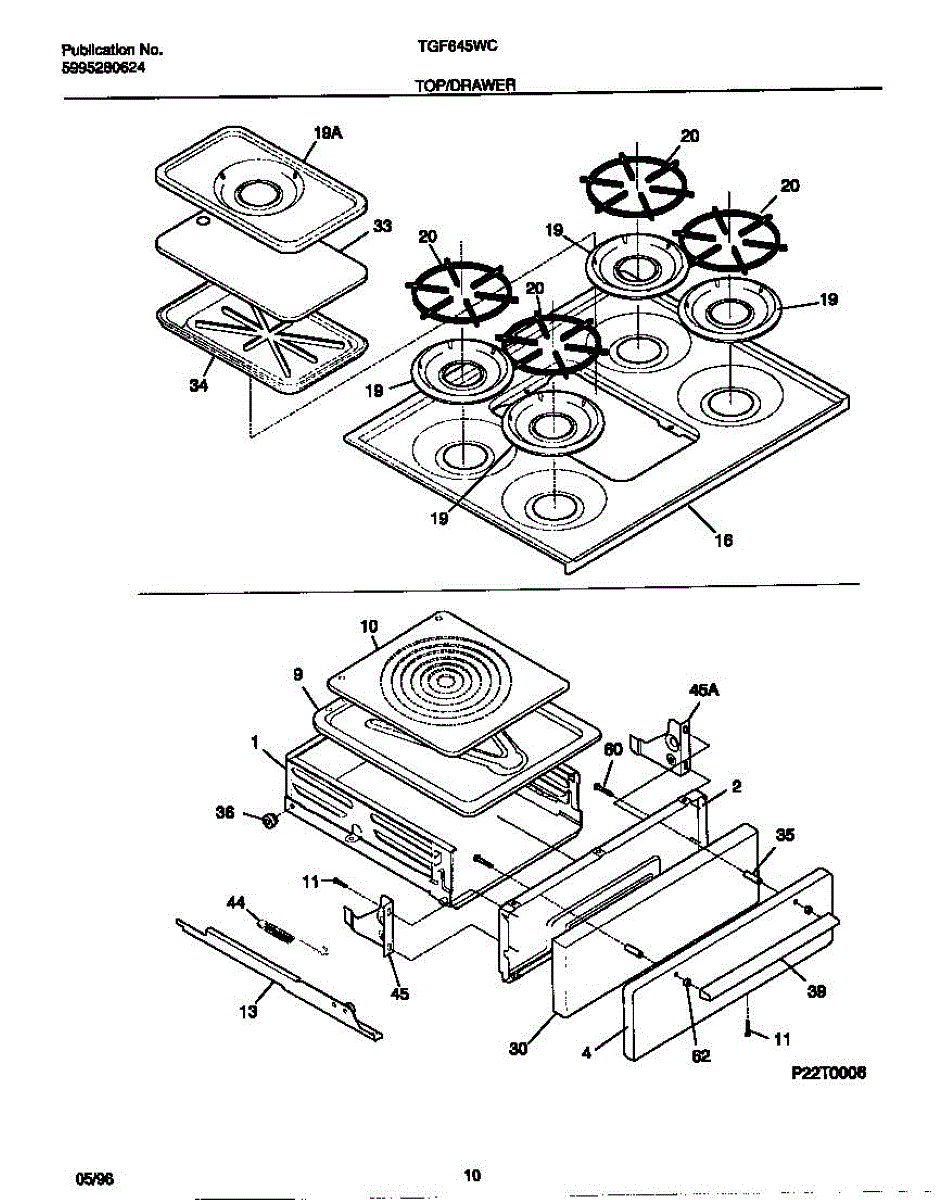

Parts for Frigidaire TGF645WCD2: 06 - Top / Drawer Parts

Drawer assembly for ovens and ranges. Replaces broken, cracked, or damaged drawer components. Essential for restoring storage functionality.

Oven rack slide track that guides oven racks in and out smoothly. Replace if your track is bent, broken, or damaged causing racks to stick or wobble.

Color: Almond

Bisque griddle pan for gas ranges. Sits on top of grates for flat cooking surface. Replace if cracked, warped, discolored, or missing from your cooktop.

Replace your cracked or discolored range griddle cover with this almond-colored housing. Covers and protects the griddle area when not in use.

Replacement roller for oven storage or warming drawers. Needed when drawer wheels are cracked, broken, or missing causing difficulty opening or closing.

Replace your cracked, broken, or missing oven drawer handle. This structural component mounts to the front of your storage drawer for opening and closing.

Right-side hinge for oven broiler doors. Replaces damaged, cracked, or broken hinges that prevent proper door alignment and smooth operation.

Left-side broiler door hinge for ovens and ranges. Replaces broken, bent, or worn hinges that prevent proper door operation or alignment.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

This snap bushing is a push-in panel grommet that protects and secures wiring where harnesses pass through metal or plastic panels. It prevents chafing and helps keep wire routing neat for safer operation. What it does:

• Cushions and shields wires from sharp panel edges to reduce abrasion and shorts
• Secures wiring harnesses in place to prevent unwanted movement or snagging
• Provides a finished, vibration-resistant pass-through for electrical leads
• Commonly replaced when the original bushing is cracked, broken, or missing

• One snap bushing

• Disconnect power before servicing electrical components
• Press-fit into the panel hole until the bushing snaps into place; confirm a secure fit
• Replace if brittle, torn, or deformed; do not use a damaged bushing
• Use pliers for removal if needed; avoid forcing or enlarging the hole

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Mounting screw for ranges, ovens, and cooktops. Secures panels, brackets, or internal components. Replace if missing, stripped, or damaged.

Hex washer head ,10-32 x 0.375. Ground

Phillips pan head screw for securing panels and components in appliances. Replace missing, stripped, or corroded screws during repairs or maintenance.

Replacement screw that secures brackets, shelves, trim, panels, and covers inside your appliance. Install when the original is missing, stripped, or corroded.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
