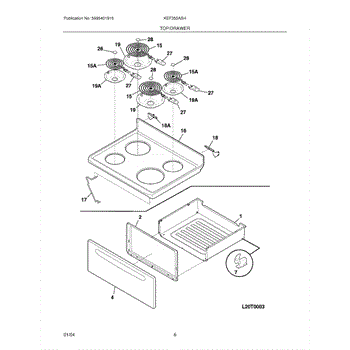

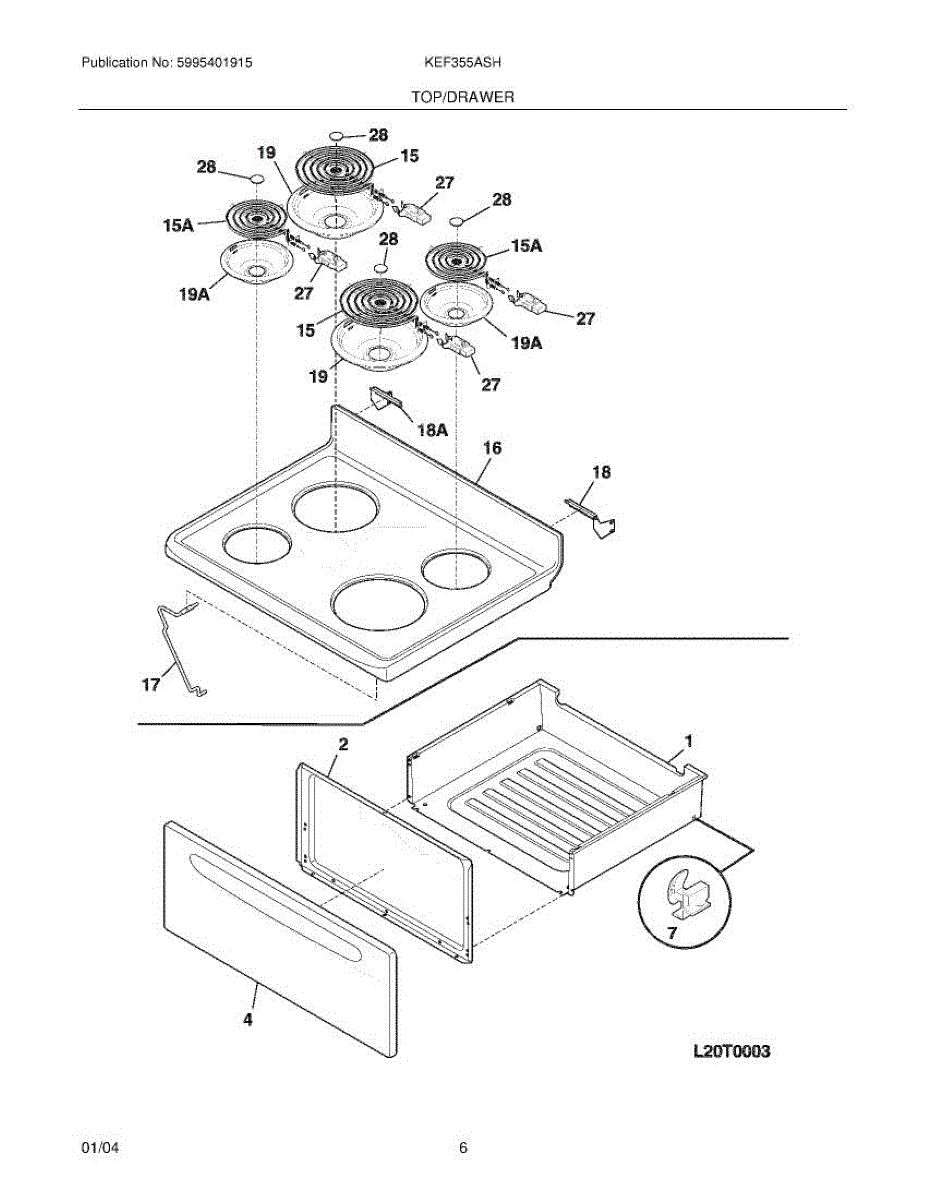

Parts for Kelvinator KEF355ASH: 07 - Top / Drawer Parts

The Rear Drawer Glide is an OEM part for Frigidaire ovens and ranges. It is designed to provide smooth movement for the oven's rear drawer. The rear drawer glide allows the drawer to slide in and out with ease, providing convenient access to storage space or broiler pans. This is the glide that attaches to the rear of the oven drawer. For front glide that attaches to the body use 3051162. Two front and two rear are used for each stove. One for each corner.

Causes of a bad rear drawer glide can include normal wear and tear over time or accidental damage. When the glide becomes defective, it can lead to difficulties in smoothly opening or closing the drawer.

Symptoms of a bad rear drawer glide include:

• Difficulty in sliding the drawer in or out.
• Uneven movements or sticking of the drawer.
• Excessive noise or scraping sounds when operating the drawer.
• The drawer not staying securely closed or aligned.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Coil Burner Element is an OEM replacement part for Frigidaire cooktops and ranges. The 6-inch coil burner element typically consists of a spiral-shaped metal resistance wire or rod that glows red-hot when electricity passes through it. This heat is then transferred to the cooktop surface, allowing it to reach the desired temperature for various cooking tasks, such as boiling, simmering, or sautéing.

Symptoms of a bad coil burner element:

• Burner not heating up properly or failing to reach the desired temperature
• Uneven heating or hot spots on the cooktop surface
• Visible damage or breaks in the coil wire
• Unusual smells or burning odors emanating from the burner area

Causes of a bad coil burner element can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktops and ranges.

The Coil Surface Element is an OEM part for Frigidaire ranges and cooktops. It is a key component for cooking, providing the heat source directly under pots and pans. This 8 inch element is designed to heat quickly and maintain consistent temperature, which is essential for effective cooking and energy efficiency.

Symptoms of a bad Coil Surface Element include:

• The element not heating up when turned on
• Uneven heating or hot spots that can cause inconsistent cooking results
• The element not turning off or fluctuating in temperature

Causes of a bad coil surface element can include a breakdown of the coil itself due to general wear and tear, electrical connections becoming loose or corroded, or damage from spills or impacts during cooking.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This main top is the flat cooktop surface that mounts over a range's burner box to provide a stable, finished cooking surface and protect internal components from spills and debris. It restores a level, secure area for burners and cookware. What it does:

• Covers and protects the range's internal burner box and wiring from spills and food debris
• Provides a stable, level surface for burner grates and cookware
• Helps maintain proper airflow and fit for burner components
• Replaces warped, dented, or corroded tops that can interfere with burner alignment or cookware stability

• Disconnect power to the appliance before beginning any service
• Remove burner grates, knobs and other removable components to access mounting screws
• Handle carefully to avoid sharp edges; lift and set into place, aligning mounting holes before fastening

Main top support rod.

This is the right side hinge. For left side hinge use 316235901.

This is the left side hinge. For right side hinge use 316235900.

8" drip bowl

6" drip bowl

This OEM replacement Universal Element Receptacle kit is designed to fit most popular range brands such as Maytag, Magic Chef, Jenn Air, Whirlpool, Roper, Kenmore, Frigidaire, Admiral, Crosley, Estate, and Amana. This kit comes complete with everything you need for a hassle-free installation.

Included in the Kit:

• Two different mounting brackets
• A plastic terminal block
• Wires
• Hi-temp wire connectors
• heat insulators

In case your oven or range is displaying any of the following signs: non-heating burners, malfunctioning heating elements, burning odor, or a buzzing sound, this kit could be the answer to the problem. To replace the kit, you would require specific tools such as wire strippers, a heat gun or hair dryer, and a #1 square-head screwdriver.

A decorative medallion trim piece that restores the finished look of your appliance front. Replaces a scratched, faded or missing medallion to improve appearance and maintain original styling. What it does:

• Covers and protects the underlying surface while matching the appliance's original finish
• Restores a clean, finished look when the factory medallion is damaged or discolored
• Helps keep grime and moisture out of seams around the emblem area
• Useful when replacing a damaged control/door trim for a consistent appearance

• One medallion decorative trim

• Surface-mount replacement; peel adhesive or fasten per original attachment method
• Clean and dry mounting area before installing for best adhesion
• Handle carefully to avoid scratching the finish during installation

This small replacement clip secures a cooktop surface (coil) element to the range, keeping the element seated and stable for consistent contact and safe operation. Designed to match the original mounting hardware. What it does:

• Holds the surface heating element in its correct position under the cooktop
• Prevents the element from wobbling, shifting, or disconnecting from its terminal
• Helps maintain reliable electrical contact for consistent heating
• Resolves symptoms like a loose or unseated surface element or an element that won't stay in place

• Disconnect power to the range at the breaker before any service
• Handle the heating element and terminals carefully to avoid damage
• Installation typically requires lifting or removing the coil and securing the clip into the element housing—refer to your model's service instructions

Size: 10-32 x 0.312 inch. Color: Black.

Size: 6-20 x 0.312 inch.

This wiring harness connects and routes power between key refrigerator components, restoring proper electrical signals so fans, lights, compressor and ice/water functions can operate correctly when the original harness is damaged. What it does:

• Provides the factory routing and connectors to link controls, motors and sensors
• Replaces frayed, burnt or broken wires that can cause intermittent power or no-power to components
• Helps resolve symptoms such as lights or dispenser not working, fans not running, or ice maker/pump failures when wiring is the cause
• Maintains factory-style connector fit and wire lengths for correct component connections

• Disconnect power to the appliance before inspecting or replacing the harness
• Match the part number and connector shapes to the original; route and secure wires per factory clips to avoid heat or pinching
• If connectors are corroded or terminals are damaged, replace the harness rather than attempting temporary repairs

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
