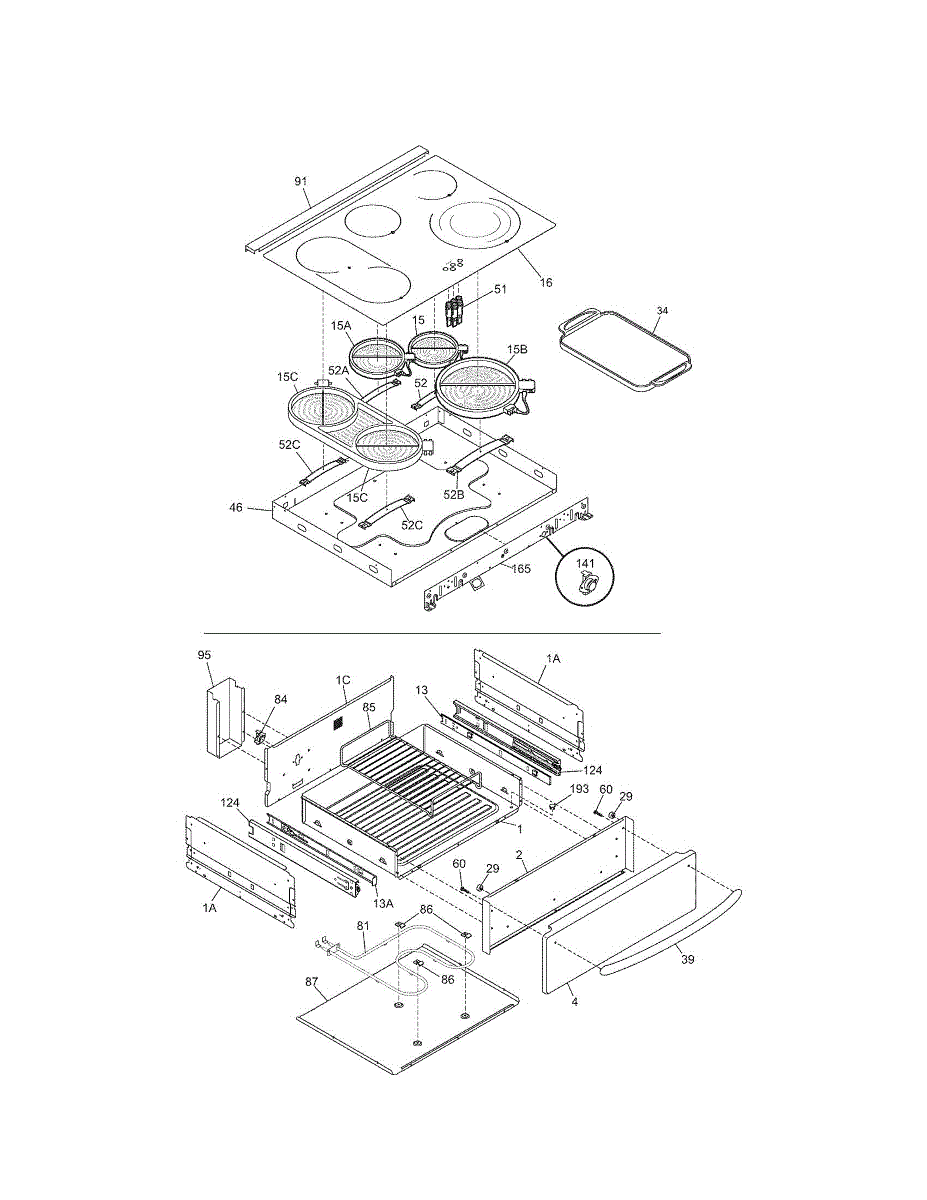

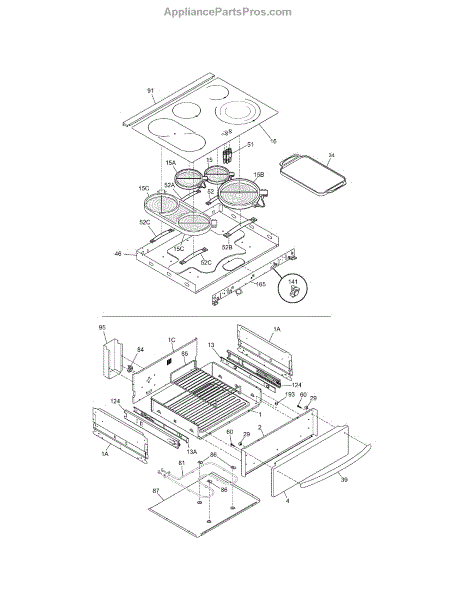

Parts for Kenmore 790.46712601 (79046712601, 790 46712601): Top / Drawer Parts

This is a metal or finished side panel that attaches to the warming drawer section of the range. It provides structural support and a clean exterior appearance on the side of the drawer compartment. Replace this panel if it is dented, scratched, rusted, or missing, which can affect both the look and proper operation of the warming drawer.

Replaces cracked, broken, or damaged control panel trim on your range. This decorative panel covers the control area and restores a clean finish.

This is the front panel for the storage drawer located beneath the oven compartment. It serves as the visible face of the drawer and provides structural support for the drawer assembly. Replace this panel if it is cracked, warped, discolored, or if the finish has peeled or chipped.

Low-friction slide piece that supports moving components in your range or wall oven. Replace worn or cracked glides to restore smooth operation.

Low-friction glide that supports and guides range drawer movement. Replace if cracked, broken, or worn to restore smooth sliding without sticking or scraping.

Burner not heating or heating unevenly? This electric range heating element restores proper cooking temperature. Moderate DIY repair in 20-30 minutes.

This is a radiant bridge surface element that provides heat across an elongated cooking zone on a glass cooktop, ideal for griddles or oblong cookware. It operates at 1800 or 2600 watts depending on the selected setting. Replace this element if the bridge zone fails to heat, heats unevenly, or does not respond to temperature adjustments.

Fix a burner that won't heat on your glass cooktop. This radiant surface element restores even heating and temperature control. DIY-friendly repair.

Burner not heating? This 6-inch surface heating element restores cooktop function. DIY repair in 10-30 minutes with basic tools and simple instructions.

Rubber bumper cushions oven or range doors to reduce noise and prevent metal contact. Replace if cracked, worn, or missing to restore proper seating.

Removable griddle plate that sits over range burners to create a flat cooking surface. Replace yours if cracked, warped, or worn for even cooking.

Replacement handle for your range door. Installs on the front exterior to provide a grip for opening and closing. Order if your current handle is cracked or broken.

Replacement door handle for your range. Installs on the oven door to provide grip for opening and closing. Order a new handle if yours is cracked or broken.

Indicator light signals power and active burners on your cooktop control panel. Replace when dim, cracked, or failed. Verify fit with your model number.

Indicator light signals power and active burners on your cooktop control panel. Replace when dim, cracked, or failed. Verify fit with your model number.

Mounting spring that secures the heating element in place on your cooktop. Replace if spring is broken, stretched out, or missing to restore proper fit.

Secures the heating element to the cooktop surface. Replace if your original spring is broken, missing, or no longer holds the element firmly in place.

Secures your cooktop heating element in place and maintains proper electrical contact. Replace if your spring is worn, broken, or missing to restore stability.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

This is the electric heating element located inside the warming drawer of a range. It provides low, steady heat to keep cooked food warm until serving. Replace this element if the warming drawer no longer heats, heats unevenly, or if the element is visibly damaged or burned out.

Oven not heating to set temperature or heating too slowly? This thermostat controls oven temperature cycling. Test for continuity to diagnose the issue.

This metal rack fits inside the warming drawer beneath the oven, providing a flat surface to hold plates, dishes, or cooked food at a warm serving temperature. It slides in and out of the drawer on built-in guides. Replace it if the rack is bent, warped, rusted, or missing, which can prevent proper food placement and even heat distribution in the warming drawer.

Replace your range's control panel if the original is cracked, damaged, or showing wear. This panel mounts to the front and houses control components.

Decorative finishing panel that covers exposed edges on your range for a clean appearance. Replaces cracked, broken, or missing trim to restore look.

Decorative trim piece that covers mounting edges on your range door or control panel. Replaces scratched, dented, or missing trim for a clean finish.

Range drawer glide with integrated ball bearings ensures smooth drawer operation. Replace when drawer sticks, won't close, or bearings are bent or damaged.

Protective shield that covers and guards the switch assembly on your range. Replace if the original shield is cracked, broken, or missing to restore proper coverage.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

Secures the oven door handle in place. Replace if screw is stripped, missing, or no longer holding the handle firmly against the door surface.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
